Product Details
＋

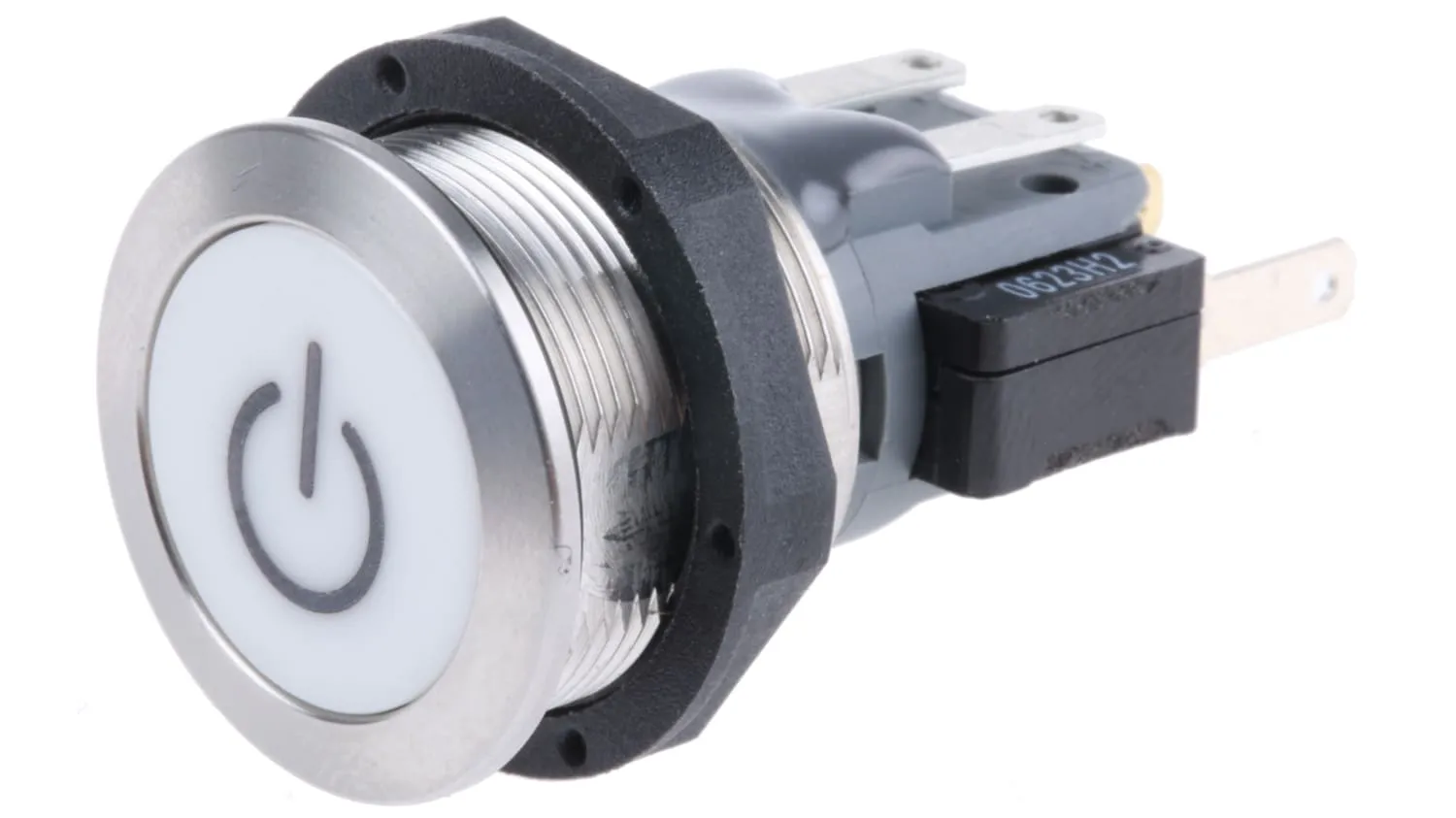

3-120-091, MSM CS 19mm, Pushbutton Switch Metal with Blue Illumination and Power Mark, 3Amp @ 250VAC, 30VDC, 5-28VDC Illumination Supply, 0.2 Million Ops
Description
- Pushbutton switch available in version Standard, Illiminated, with Point Illumination, Lettering, varnished in different colours
- Assembly by mounting with nut
- Pin connections, Pins with Soldering Aid or Clip for Pins
Characteristics
- Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
- Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 3 Amp
- 24VDC Illumination Supply Voltage
- Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering
- Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols
- Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data)
- Tamper Proof suitable for public spaces
- Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering
Specification
| Schurter Part Number | 3-120-091 |
| Switch Size | 20 x 19mm |
| Nominal Voltage | 240VAC/30VDC |
| Rated Power | 750W |
| Switch Type | Latching C/O |
| Illumination voltage | 5-28VDC @ 10mA |
| Nominal Current (AC/DC) |
3 Amp @240VAC, 0.5 Amp @ 30VDC |
| Contact Resistance ON/OFF | <100m Ohm |
| Dimensions | ø22 x 14.6mm |
| Operations | 0.2 Million |
| Operating Temperature Range | -20°C / 85°C |
| Termination | Faston/Solder Pins |
| IP Protection Rating | (IP 67K with Oring) IP 64 (IP40 switching circuit) |
| Unit Weight | 40g |
| Factory Pack Qty | 10 |
