Specifications:

• Product Number: AEROPGSVX-600PLUS-80

• Total power: 600 W
• AC input voltage: 230 V
• AC input frequency: 47 - 63 Hz
• Input current: 5 A
• Combined power: ( 3.3V) 120 W
• Combined power: ( 12V) 552 W
• Combined power: ( 5Vsb) 12.5 W
• Max output current: ( 3.3V) 20 A
• Max output current: ( 12V) 50 A
• Max output current: ( 5V) 17 A
• Max output current: (-12V) 0.3 A
• Max output current: ( 5Vsb) 2.5 A
• Power protection features:
• Over power
• Over voltage
• Short circuit
• Under voltage

Performance

• Supported motherboard form factors: ATX
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.3

Design

• Product colour: Black

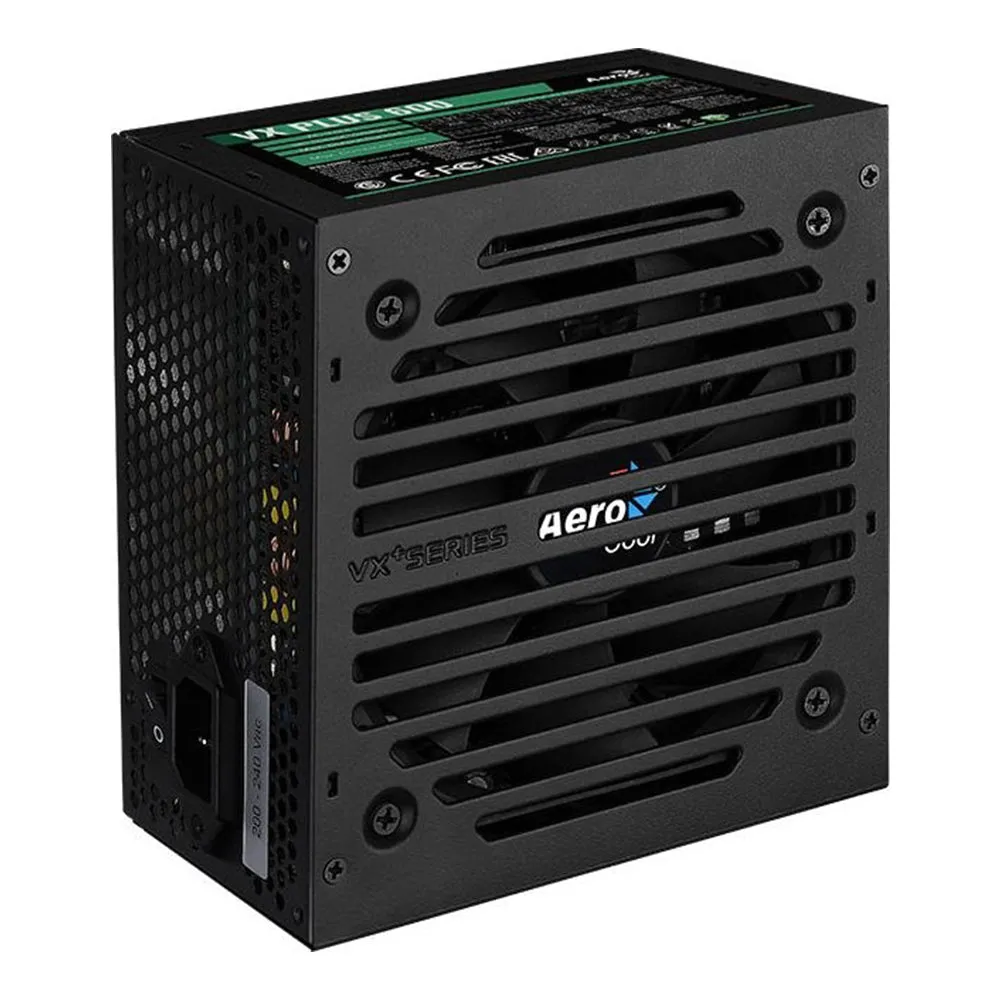

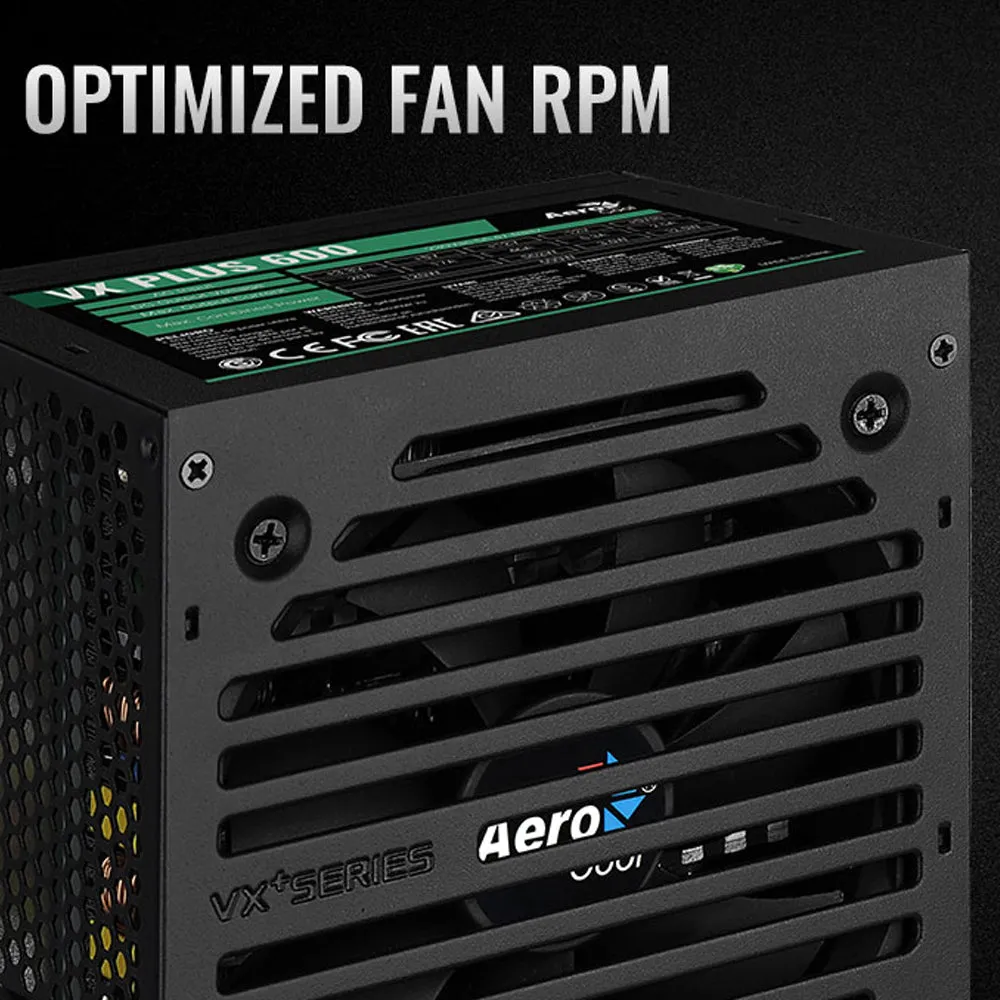

• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• Fan location: Top
