The Antec VP 550W Plus Non-Modular PSU is discreet and durable with an 80 PLUS® 230V standard certification and a 120mm silent fan. It provides 550w of continuous output power with a reduced power draw of up to 85% efficiency. This PSU has two-PCI-E connectors for dual GPU installations. Antec’s Thermal Manager optimizes the fan for optimal heat and noise control.

FEATURES:

• Continuous Power - Guaranteed Continuous Power from Antec
• 80 PLUS® 230V Standard Certified - Up to 85% efficient, to reduce your electricity bill
• 120mm Silent Fan
• Thermal Manager - An advanced low-voltage fan control for optimal heat & noise management
• CircuitShield™ - Full suite of industrial grade protections: OVP/SCP/OPP/NLO
• Multi PCI-E - 2 PCI-E connectors for multiple GPU support

SPECIFICATIONS:

• Modularity: Non-Modular
• Output Capacity: 550W
• Input Voltage: 200-240 VAC ±10%
• Input Current: 5A
• Input Frequency Range: 50Hz-60Hz
• PFC: Active PFC (>0.9 typical)
• Power Good Signal: 100-500ms
• Efficiency: 85% Typically
• Protection: OVP/SCP/OPP/NLO
• Regulatory: TUV/CB/CE/KC
• Fan: 120mm Silent Fan
• Certifications: 80 Plus

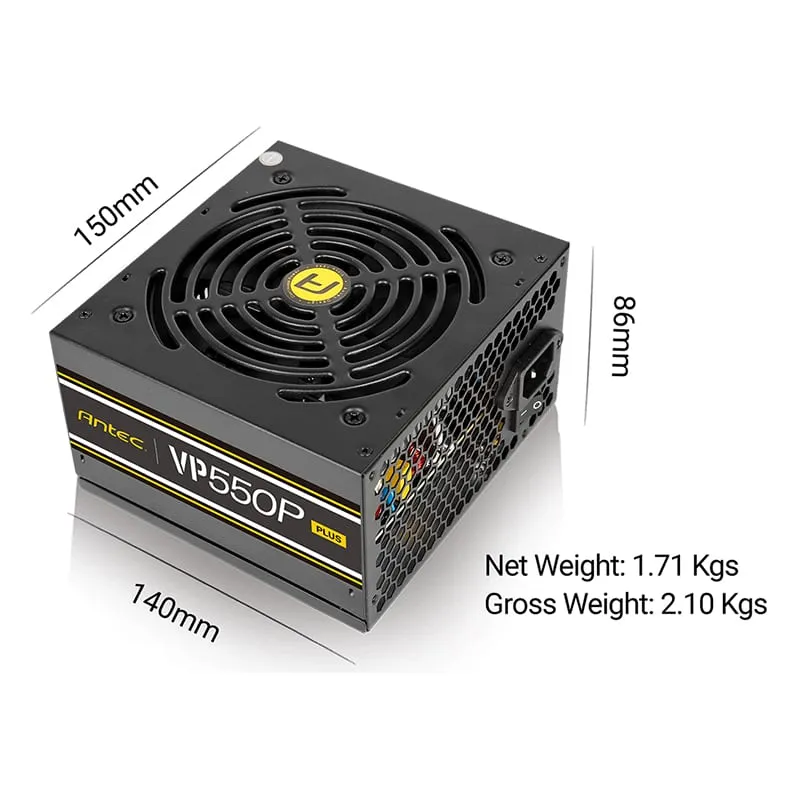

• Dimensions: 14 x 15 x 8.6 cm
• Connectors:
  • 1 x MB 24(20 4) Pin
  • 1x 8(4 4) Pin EPS 12V
  • 2x 8(6 2) Pin PCI-E
  • 7x SATA
  • 2x Molex
  • 1x FDD

WHAT'S IN THE BOX:

• Antec VP 550W PSU - Black x1
• Power cable x1
• Pack of screws x1
