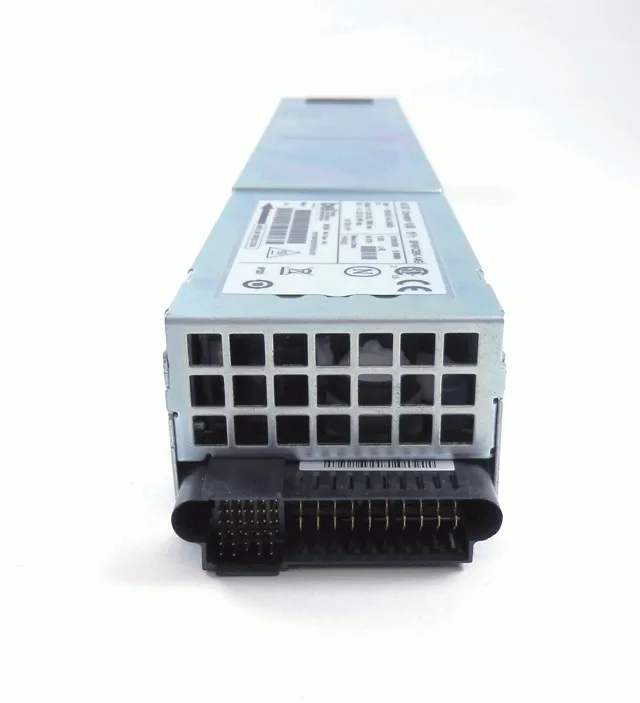

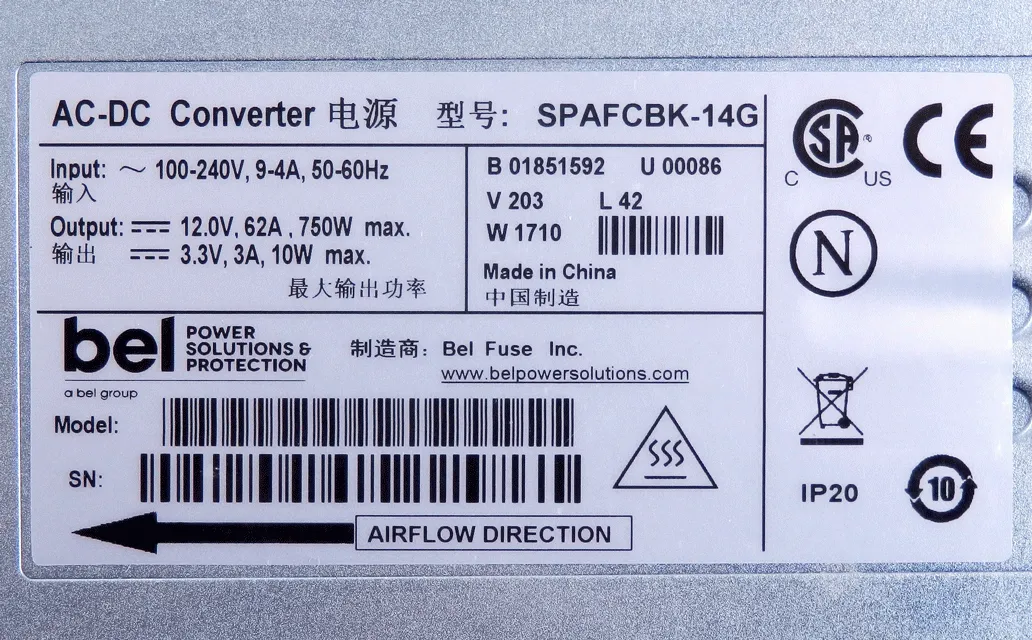

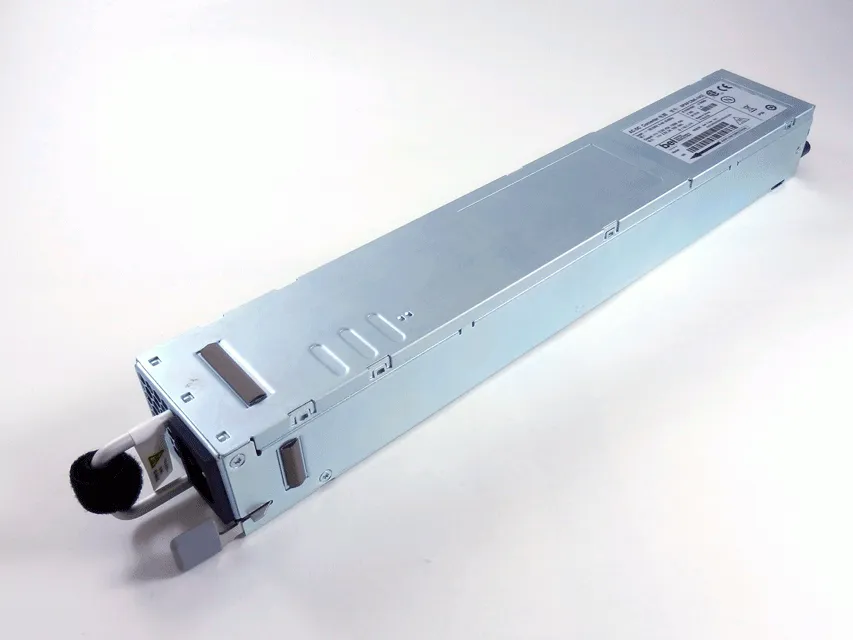

This is a New Bel Power Solutions 750W 12VDC 62A Front End AC-DC Power Supply. Its model number is SPAFCBK-14G. The SPAFCBK-14G is a power-factor-corrected (PFC) power supply that converts standard AC mains power into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The SPAFCBK-14G meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Features:

• Open Compute (OCP) compliant
• Meeting 80 Plus “Platinum” Efficiency
• Wide input voltage range: 90 - 264 VAC
• AC input with power factor correction
• Always-On 10 W standby output (3.3 V/3 A)
• Hot-plug capable
• Active current share
• Small form factor: 321.5 x 54.5 x 40 mm (12.66 x 2.14 x 1.57 in)
• I2C communication interface for control, programming and monitoring with PSMI and Power Management Bus protocol
• Overtemperature, output overvoltage and overcurrent protection

Applications:

• High Performance Servers
• Routers
• Switches

Specifications

• Power (W): 750
• Standby Output (V): 3.3
• Output Voltage (VDC): 12
• Output Current (A): 62
• Voltage Input (VAC): 90-264
• Operating Temperature (ºC): -5 to 55
• Dimensions LxWxH (mm): 333.5 x 54.5 x 40
• Vout 1 (VDC): 12
• Iout 1 (A): 62
• Airflow: Normal
• RoHS: RoHS Compliant
