Product Details
＋

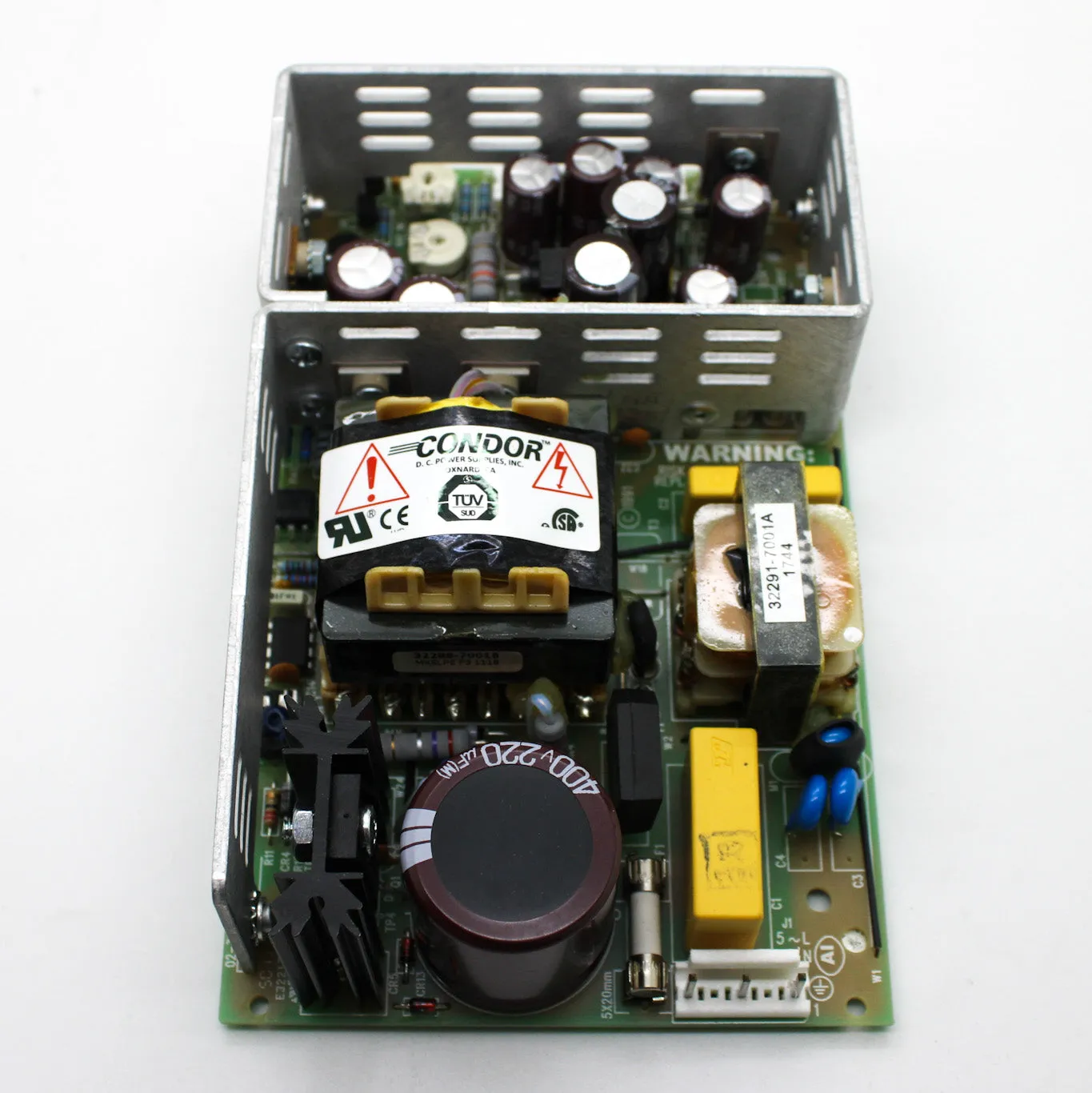

This is a Condor 5V 15V -5V -15V 55W Open Frame Switching Power Supply. Its part number is GPC55CG.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Advanced Energy
- Part Number: GPC55CG
- Output Voltage-Channel 1: 5 VDC
- Output Voltage-Channel 2: 15 VDC
- Number of Outputs: 4 Output
- Output Power: 55 W
- Open Frame/Enclosed: Open Frame
- Input Voltage: 85 VAC to 264 VAC
- Output Current-Channel 1: 6 A
- Output Current-Channel 2: 3 A
- Industry: Industrial
- Mounting Style: Chassis
- Length: 6.3 in
- Width: 3.94 in
- Height: 1.68 in
- Series: GPC
- Approvals: EN60950-1
- Brand: Advanced Energy / SL Power
- Compliance: EN60950-1
- Efficiency: 70 %
- Load Regulation: Regulated
- Maximum Operating Temperature: 50 C
- Mechanical Style: Open / Enclosed Frame
- Minimum Operating Temperature: 0 C
- Operating Temperature Range: 0 C to 50 C
- Output Current-Channel 3: 1 A
- Output Current-Channel 4: 1 A
- Output Voltage-Channel 3: - 5 VDC
