Product Details
＋
From the manufacturer
|
Model |
MPE-5501-ACABW-B |
|

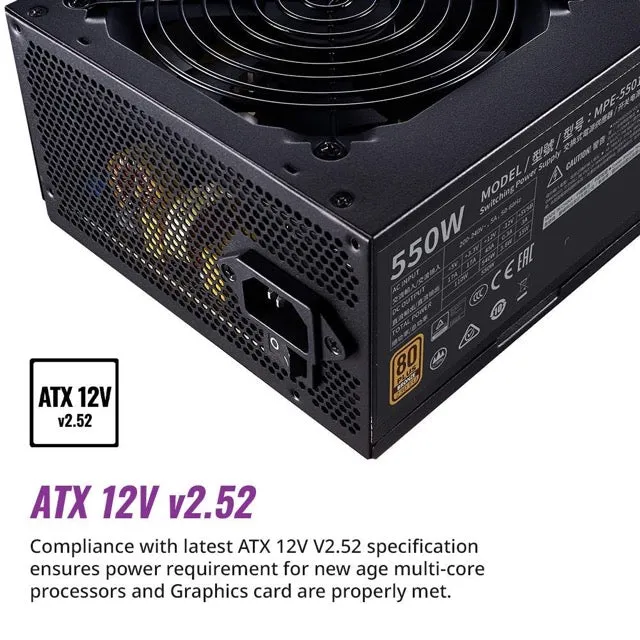

ATX Version |
ATX 12V V2.52 |
|
PFC |
Active PFC |
|
Input Voltage |
200-240Vac |
|
Input Current |
10-5A |
|
Input Frequency |
50-60Hz |
|
Dimensions (L x W x H) |
140 x 150 x 86 mm |
|

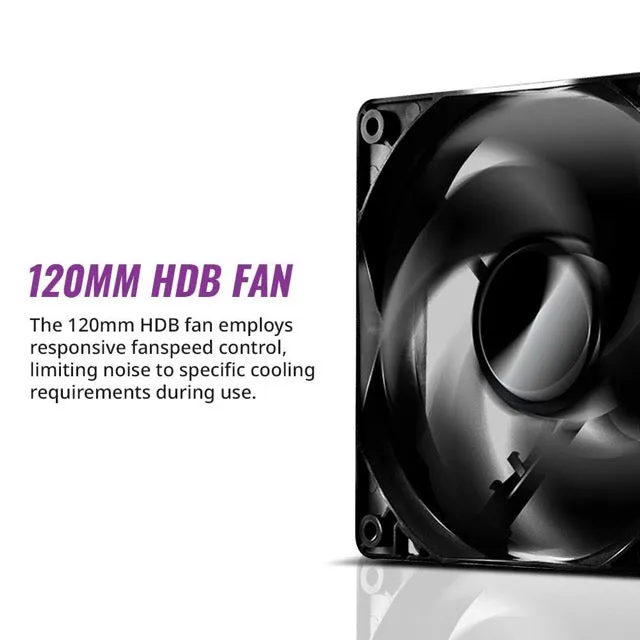

Fan Size |
120mm |
|
Fan Bearing |
HDB |
|
Fan Speed |
1500 RPM |
|
Noise Level @ 20% |
13.8 dBA |
|
Noise Level @ 50% |
18.4 dBA |
|
Noise Level @ 100% |
31.2 dBA |
|
Efficiency |
88% Typically |
|

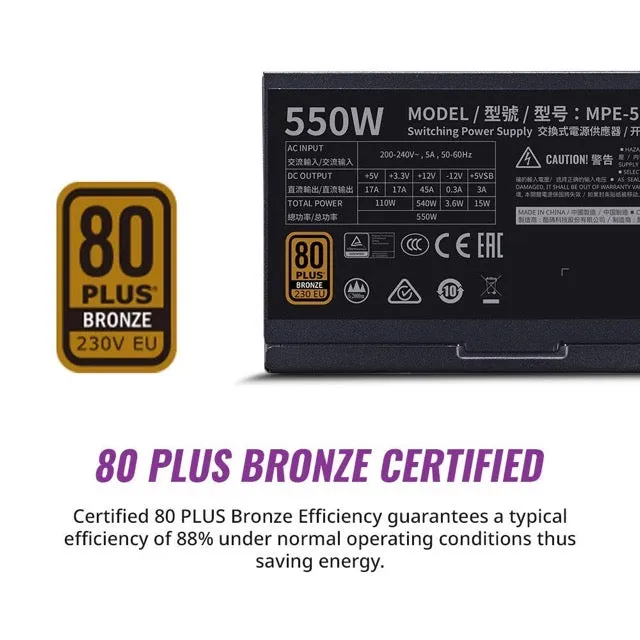

80 PLUS Rating |
80 PLUS Bronze EU 230V |
|
ErP 2014 Lot 3 |
Yes |
|
Power Good Signal |
100 - 500 ms |
|
Hold Up Time |
>14ms at 100% Full Load@230Vac |
|
MTBF |
>100,000 Hours |
|
Protections |
OVP, OPP, SCP, UVP, OTP |
|
Regulatory |
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
|
ATX 24 Pin Connectors |
1 |
|
EPS 4 4 Pin Connectors |
1 |
|
SATA Connectors |
6 |
|
Peripheral 4 Pin Connectors |
3 |
|
PCI-e 6 2 Pin Connectors |
2 |
|
Series |
MWE Bronze Series |
|
80 Plus |
Bronze |
|
Modular |
Non Modular |
|
Wattage |
500 to 750W |
