Product Details
＋
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
80 PLUS® Gold
80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

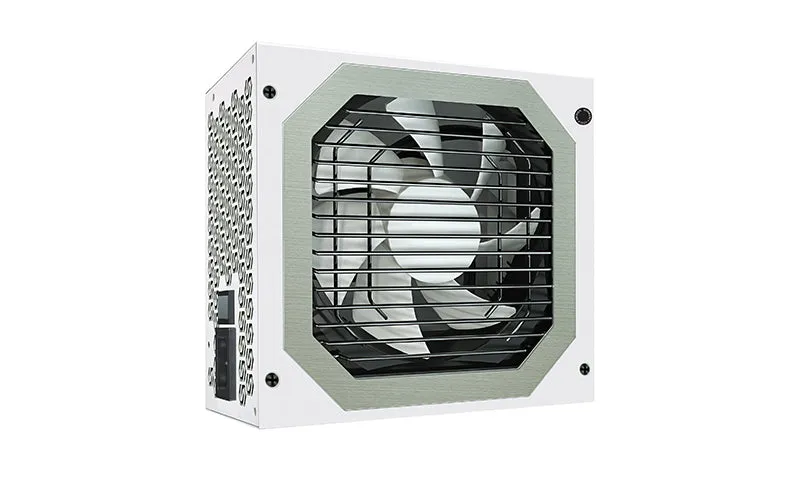

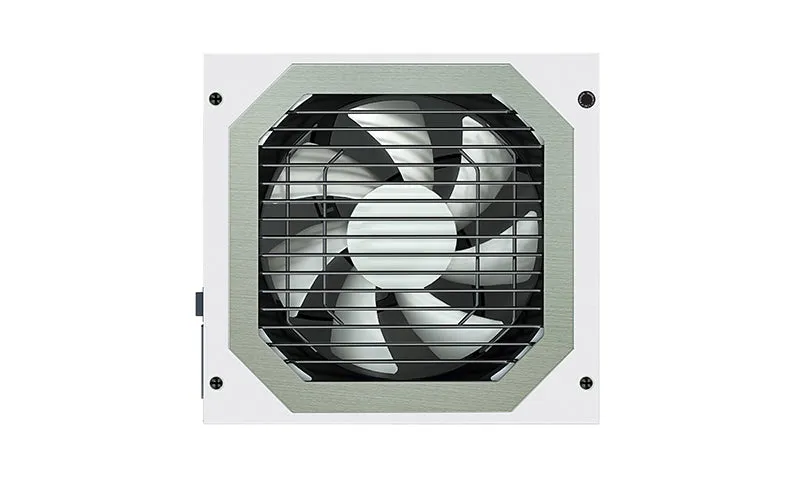

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise
Details Discovered
High grade Japanese 105℃ PFC Boost Capacitor
100% Japanese Capacitors
Excellent 1 and 2-stage EMI filter circuit
Highly efficient Active PFC
Excellent manufacturing process
Highly reliable supervisor IC for protections

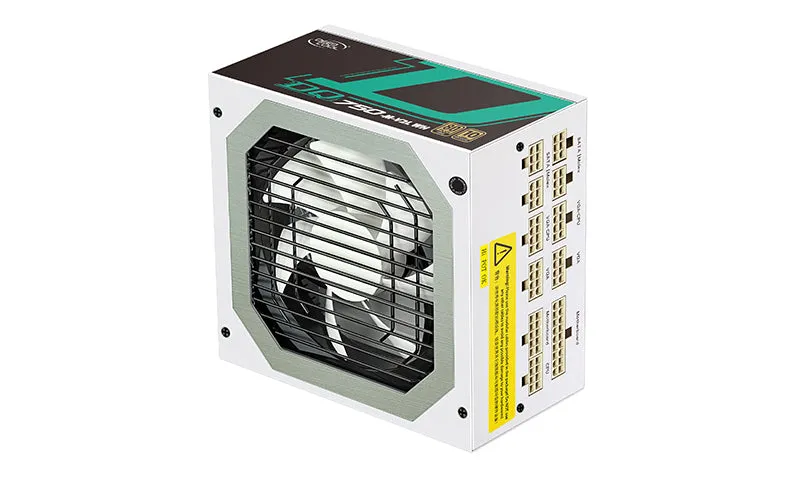

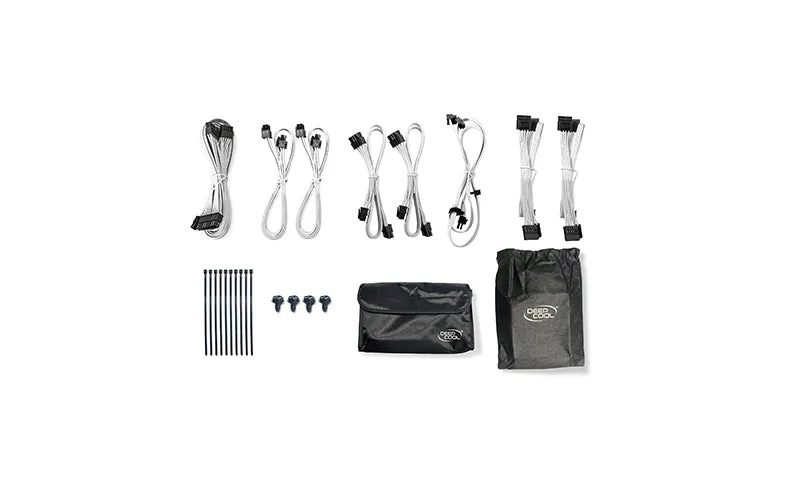

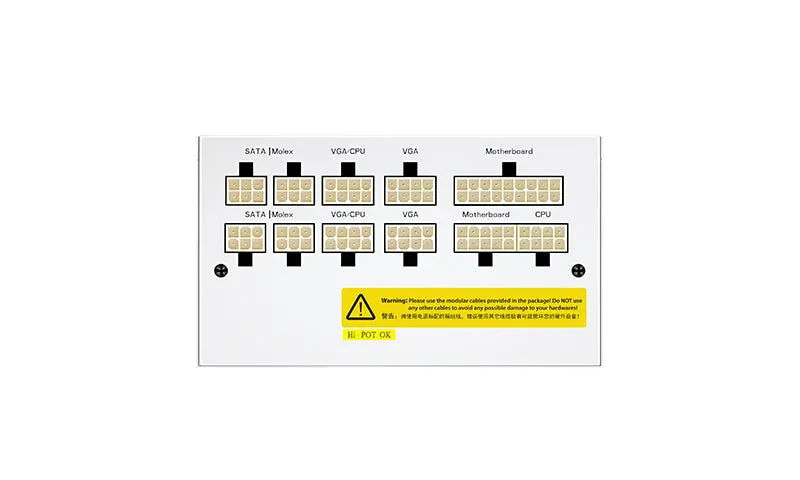

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
Technical Spec
| Model | DQ750-M-V2L |
| Type | ATX 12V V2.4 |
| Certifications | 80PLUS GOLD |
| Dimension | 150×160×86mm (W × L × H) |
| Output Capacity | 750W |
| Input Voltage | 100-240V |
| Input Current | 10.0A |
| Input Frequency Range | 47-63Hz |
| Fan Size | 120mm |
| PFC | Active |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms (80% Loading) |
| Efficiency | >90% Under Typical Load (50% Loading) |
| Standby Efficiency | ErP Lot 3 2014 |
| Protection | OVP/UVP/OCP/SCP/OPP/OTP |
| Operation Temperature | 0-40°C |
| Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
| MTBF | 100,000 Hours |
| EAN | 6933412798927 |
| P/N | DP-GD-DQ750-M-V2L |
