𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐒 :-

MODEL : PK550W / PK650W / PK750W

POWER : 550W / 650W / 750W

CERTIFIED : 80 Bronze

EFFICIENCY : ≥85% Under Typical Load(50% Loading)

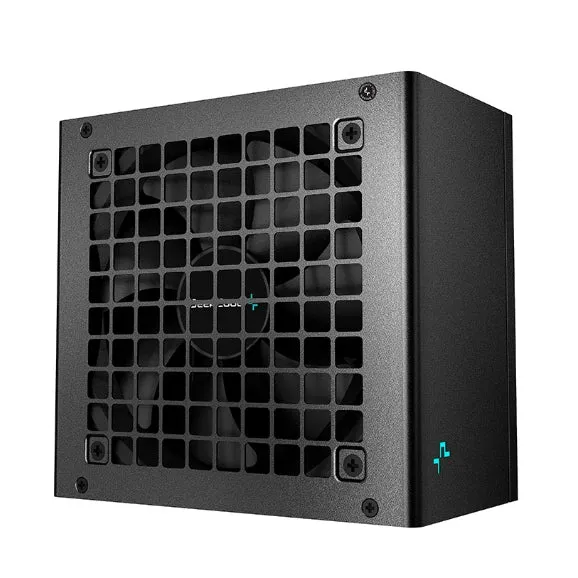

FAN : 120mm Hydro Bearing

PFC : Active PFC DC to DC

MTBF : >100,000 hours

DIMENSION : 150 x 140 x 86 mm

𝐏𝐑𝐎𝐓𝐄𝐂𝐓𝐈𝐎𝐍𝐒 :-

SCP, OPP, OTP, OVP, OCP, UVP

𝐏𝐊𝟓𝟓𝟎𝐃 (𝟓𝟓𝟎𝐖) 𝐂𝐎𝐍𝐍𝐄𝐂𝐓𝐎𝐑𝐒 :-

(1x) ATX 24 Pin Connectors

(2x) CPU/EPS 4 4 Pin Connectors

(2x) PCI-e 6 2 Pin Connectors

(3x) SATA Connectors

(3x) Peripheral 4 Pin Connectors

𝐏𝐊𝟔𝟓𝟎𝐃 (𝟔𝟓𝟎𝐖) 𝐂𝐎𝐍𝐍𝐄𝐂𝐓𝐎𝐑𝐒 :-

(1x) ATX 24 Pin Connectors

(2x) CPU/EPS 4 4 Pin Connectors

(2x) PCI-e 6 2 Pin Connectors

(7x) SATA Connectors

(3x) Peripheral 4 Pin Connectors

𝐏𝐊𝟕𝟓𝟎𝐃 (𝟕𝟓𝟎𝐖) 𝐂𝐎𝐍𝐍𝐄𝐂𝐓𝐎𝐑𝐒 :-

(1x) ATX 24 Pin Connectors

(2x) CPU/EPS 4 4 Pin Connectors

(4x) PCI-e 6 2 Pin Connectors

(8x) SATA Connectors

(3x) Peripheral 4 Pin Connectors
