Product Details
＋

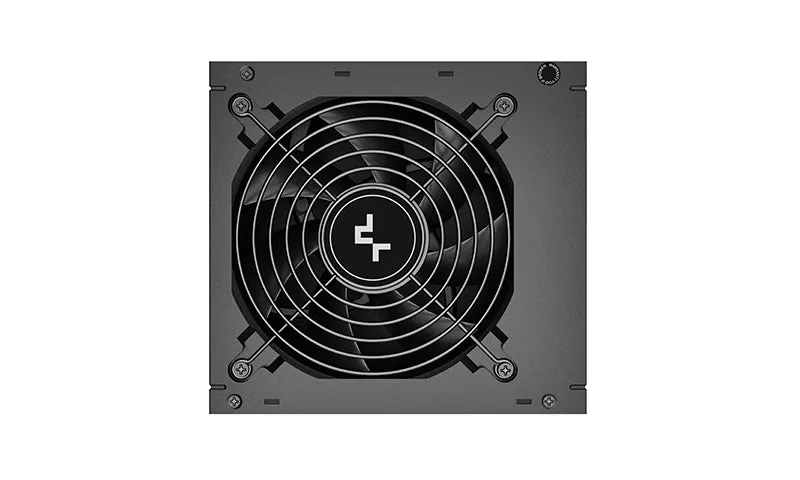

DeepCool Smps 750 W R-PM750D-FA0B-UK
Active PFC Full Bridge SRC LLC DC to DC converter, Japanese Bulk Capacitors, suitable for high wattage PC Power Supplies
PWR_OK (T3) timing under 150ms as required by Intel PSU Design Guide v1.43
60% Dynamic Load on 12V rail ensures voltage stability
Compliant with the EU ErP 2014 regulations for 5Vsb rail for energy saving measures
Black flat cables for easier system building and cable routing
Three independent PCIe interfaces to support high performance GPUs
Specifications
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC Full Bridge SRC LLC DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
| EAN | 6933412709541 |
| P/N | R-PM750D-FA0B-US |
