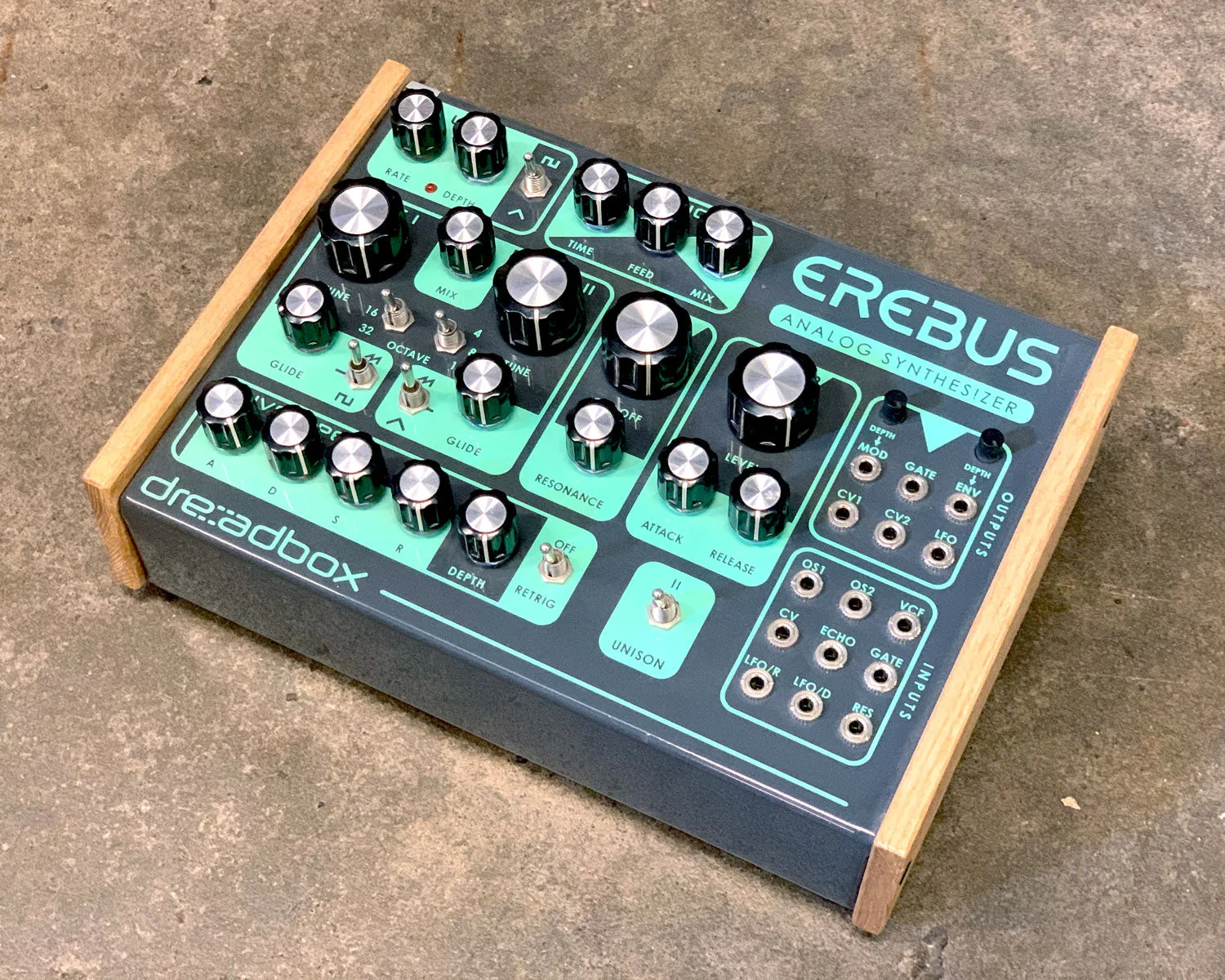

Analog 2-Voice synthesiser module which can be run in Paraphonic or Unison mode. Features:

• 2 x VCO with separate glide controls
• 2 pole (12dB/ocv) pre-fed resonating VC Low Pass Filter
• VC LFO with additional VC Depth
• 2 x Envelope Generators (1xADSR and 1xAR dedicated to the AMP) VC Delay/Echo
• 15 patches for an astonishing Modular experience

CV Outputs: LFO, Envelope (attenuated), Modulation Wheel (attenuated), Gate, Osc1 pitch(1V/ocv), Osc2 pitch (1V/ocv) CV Inputs: Osc1, Osc2, Echo time, VCF, CV, GATE, LFO rate, PW , VCA

Paraphony CV/GATE outputs allows you to turn monophonic devices into Paraphonic, or even combine 2 monosynths into paraphonic bliss.

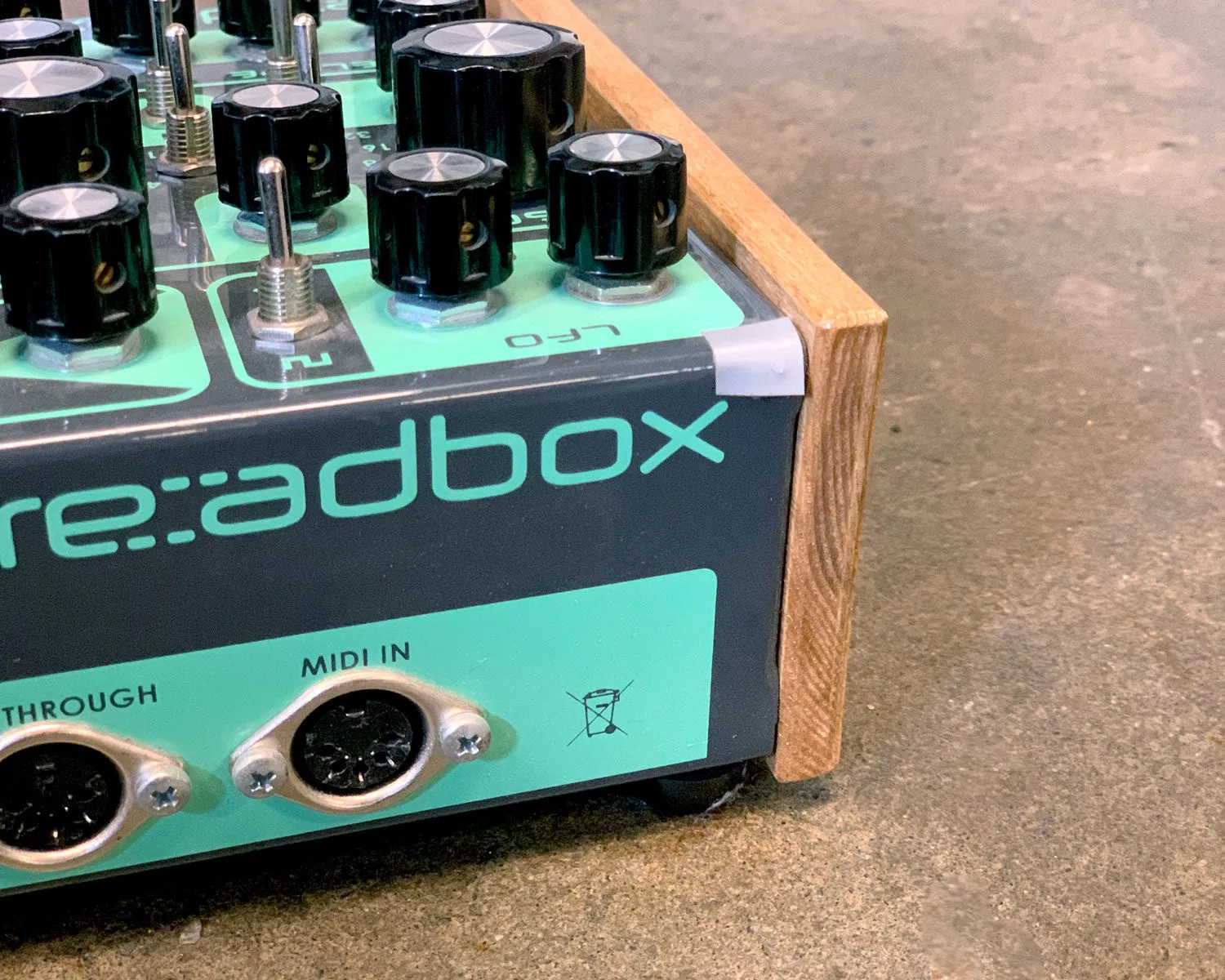

Includes US PSU with adapter. Small chip on back covered

Video:

Product Specs

• Item Number: 17156
• Make:
• Model:
• Condition:
• Finish: Grey
• Categories: ⇒
• Function:
• Made In: Greece
• Modular Grid: Eurorack
• Dimensions*: 42 HP
• Power*: 78 mA 12V 46 mA -12V 0 mA 5V

* User contributed details
