Eco-Worthy 1950W 24V (10x Bifacial 195W) Complete MPPT Off Grid Solar Kit

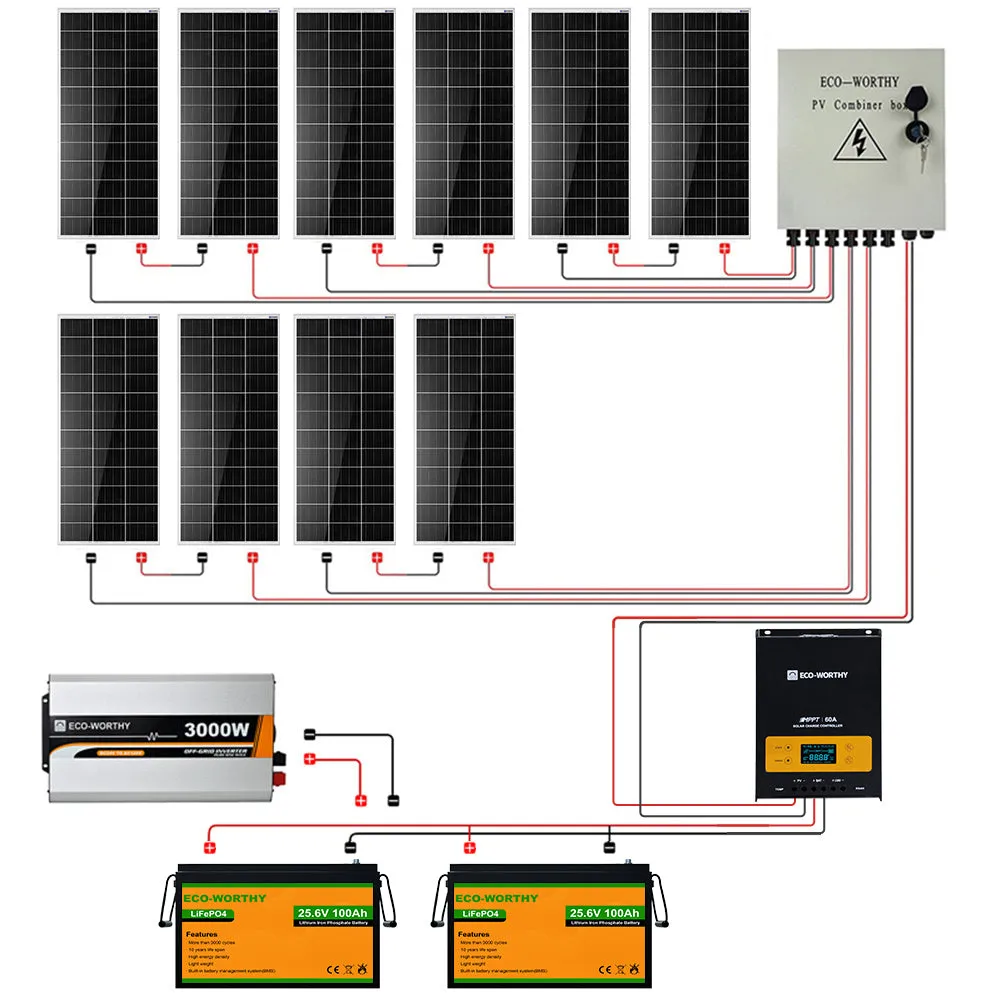

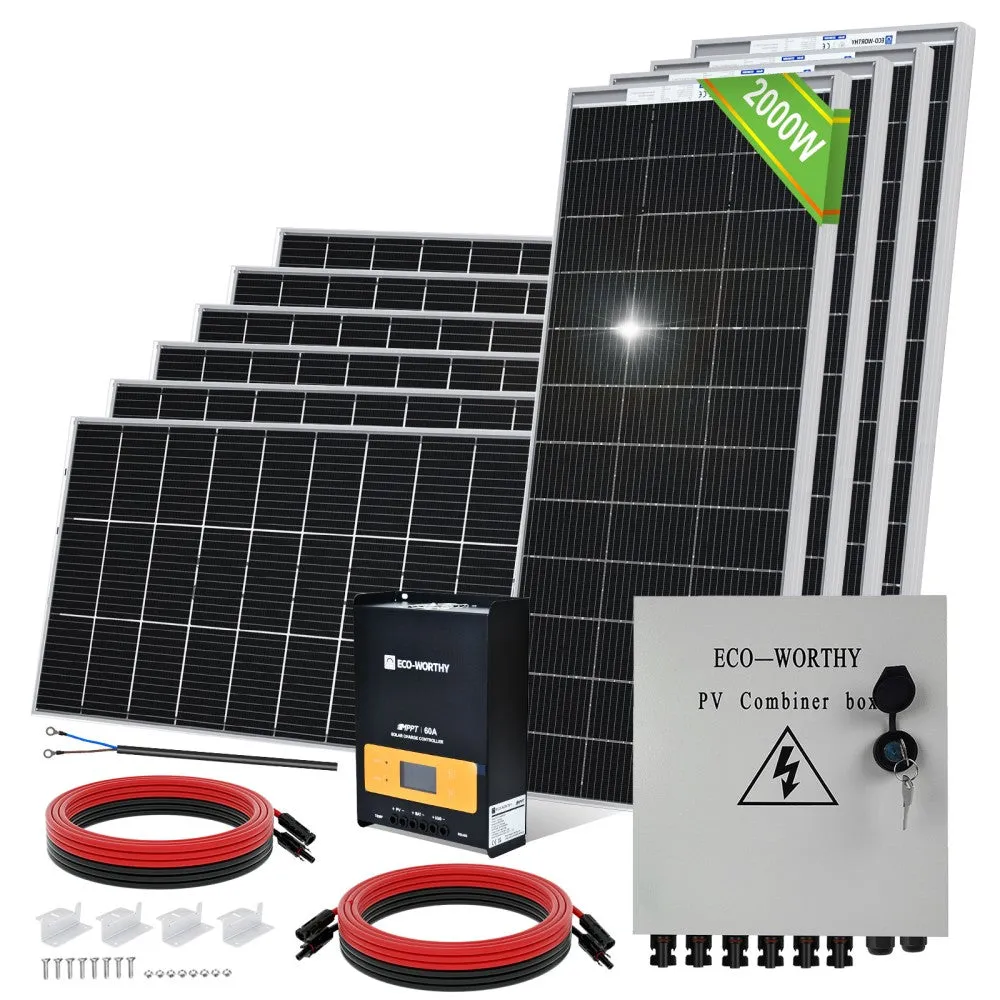

Package Includes
10x Bifacial 195W Mono Solar Panel
1x 6 String PV Combiner Box
1x 60A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
5x 5M 12AWG MC4-MC4 Extension Cable(Panel to Combiner Box)
10x Z Mounting Bracket
Inverter & Battery Bank Options-
Inverter & 4.8kWh Lithium Battery Bank (optional)
with
1x 3000W 24V-110V Pure Sine Wave Inverter
2x 100Ah 24V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable
Specifications

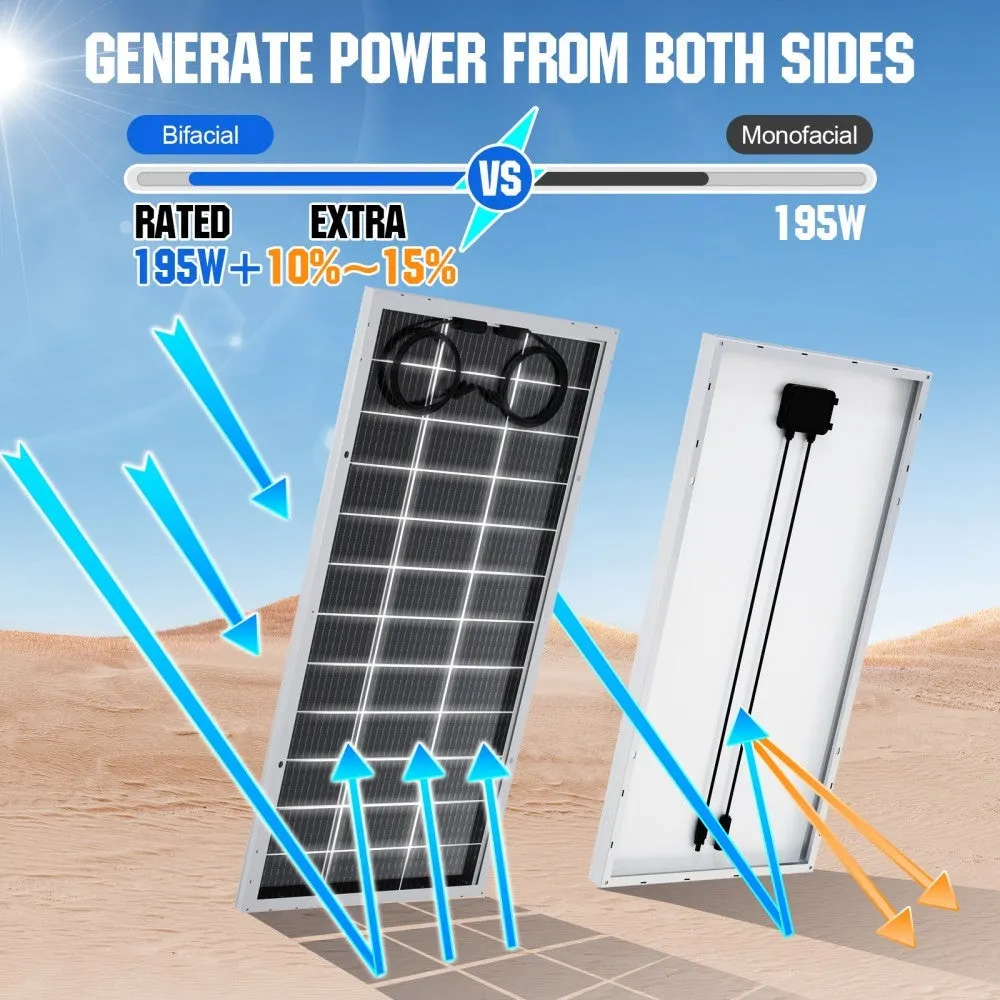

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010 /-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38 /-0.01)%/℃ | Temperature range: －40℃～ 85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |

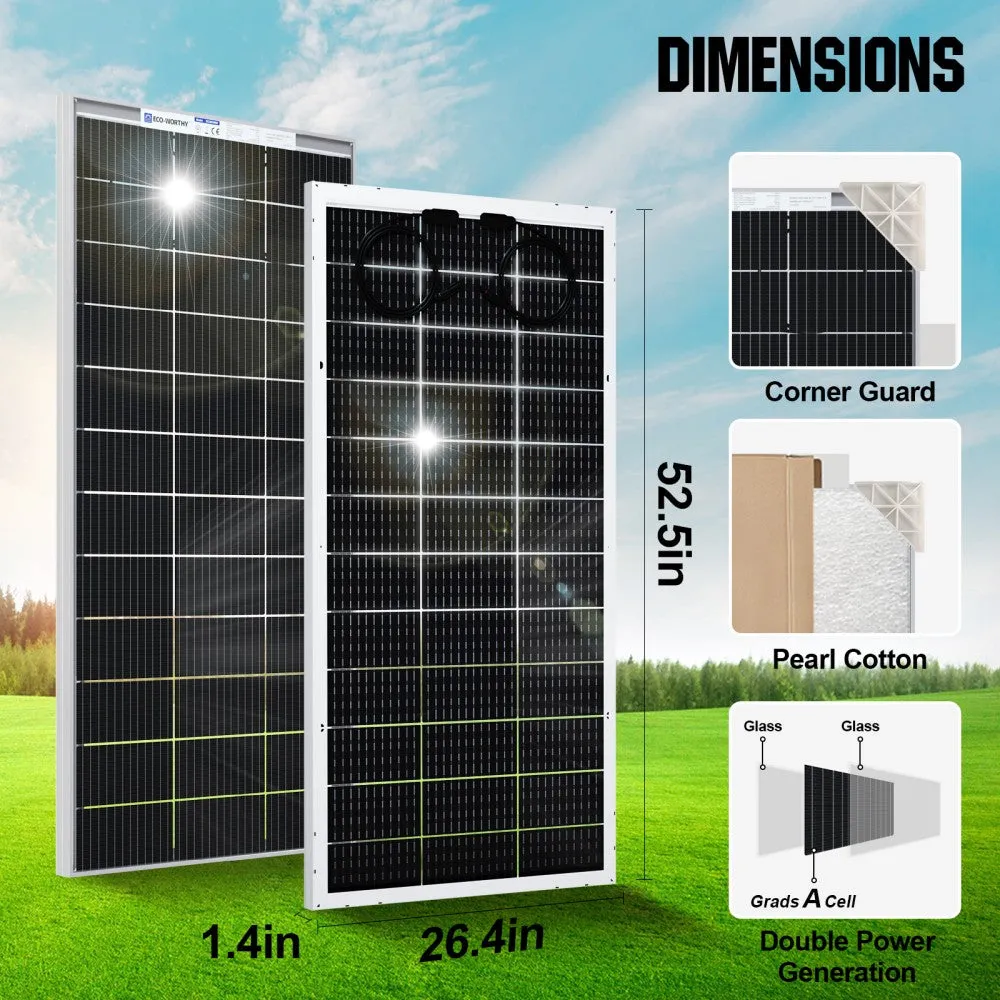

| Size: 52.6x26.38x1.38in (1335*670*35mm) |

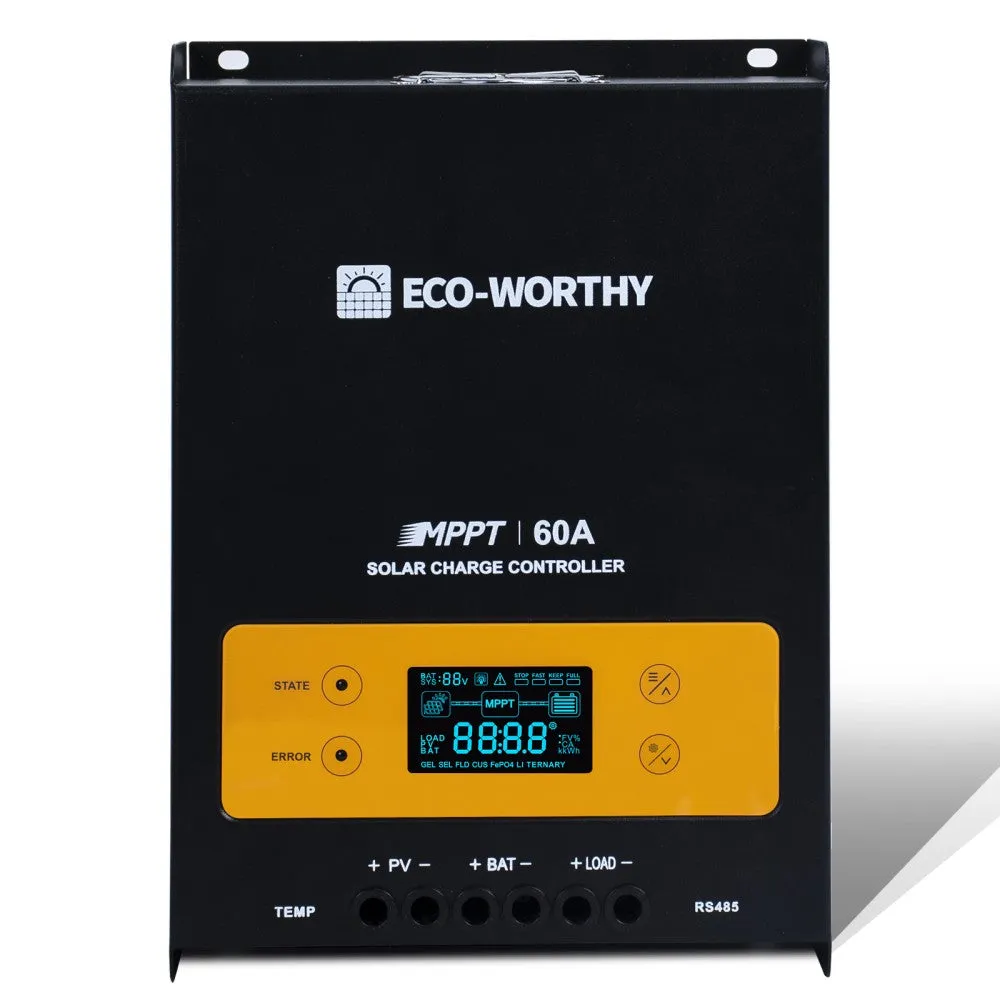

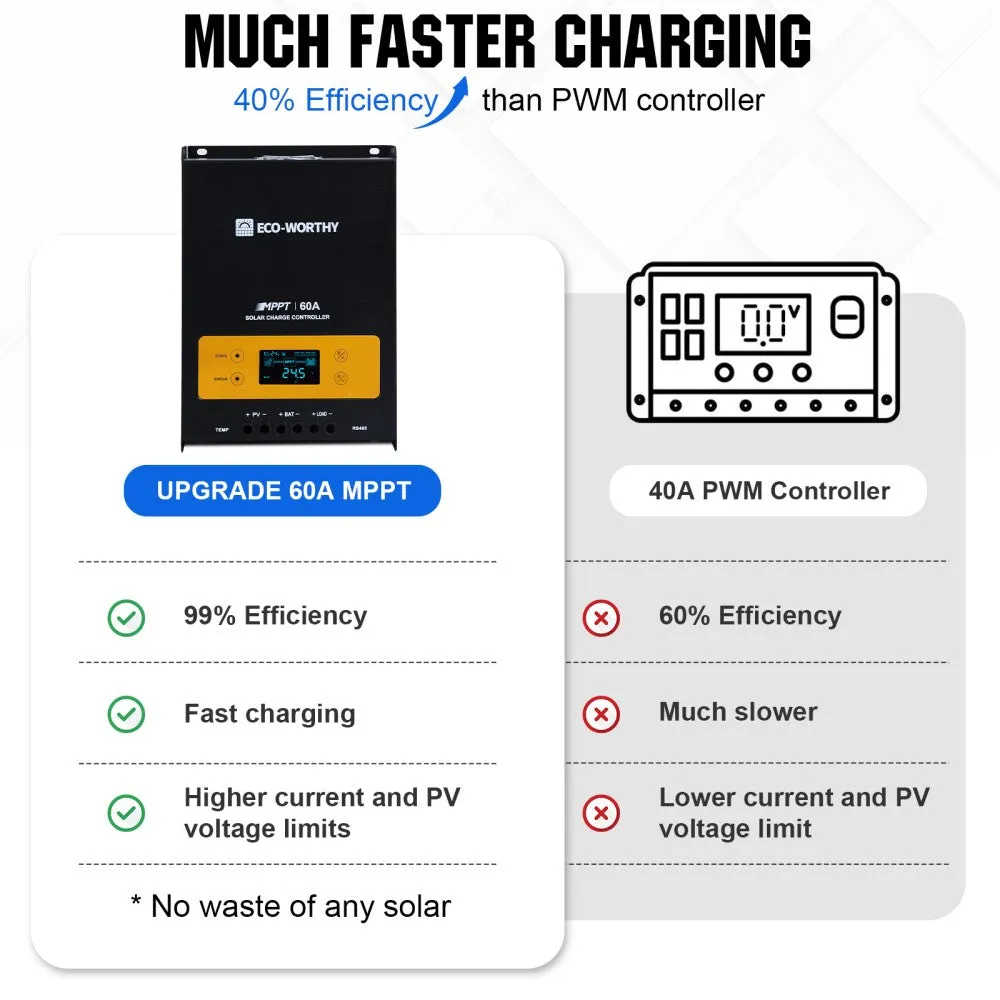

60A MPPT Solar Charge Controller
| Battery voltage：12V/24V/36V/48V | Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V) |
| Charging mode：MPPT | Rated Load Current：30A |
| Charge Efficiency (Peak)：97% | Max Charge current：60A |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | No-load static loss: 0.5W-1.2W |
| Size：240*166*65mm | Weight：1.96KG |
| Maximum wire size: 20mm2 |

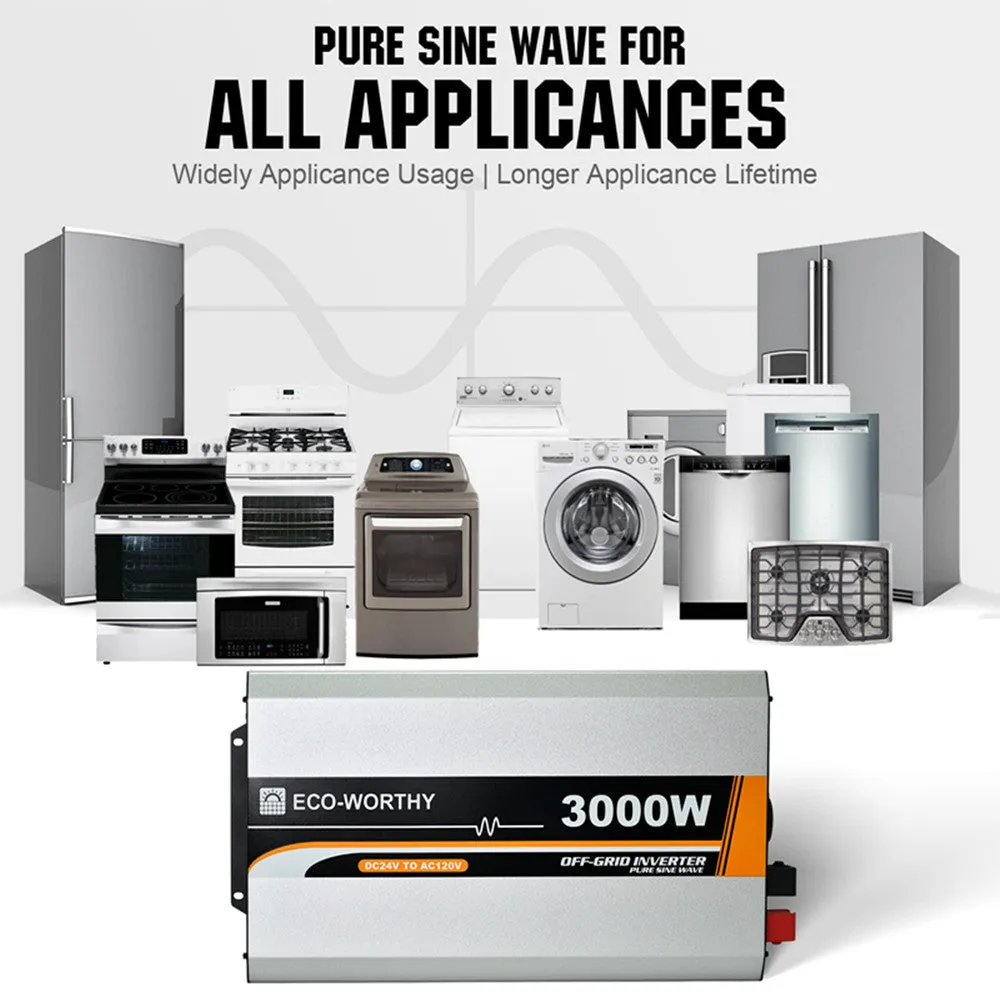

3000W 24V Off Grid Inverter
| Continuous output power: 3000W | Surge power: 6000W |
| Surge current when power on: < 100A | Output voltage: 110VAC (±3%); 120VAC (-6%~ 3%);240VAC (-9%~ 3%) |
| Output frequency: 50/60Hz ± 0.2% | Output wave: Pure Sine Wave |
| Output distortion THD: THD≤3% (Resistive Load) | Rated input voltage: 24VDC |
| Input voltage range: 21.6 ~ 32.0VDC | Rated output efficiency: > 90.0% |
| Max. output efficiency: > 94.0% (30% loads) | Idle current: < 0.15A |
| No-load current: < 1A | Input terminal: M6 |
| Dimension (L x W x H): 521 × 270 × 143mm | Mounting size: 495 × 145mm |
| Mounting hole size: Φ6mm | Net Weight: 8.5kg |

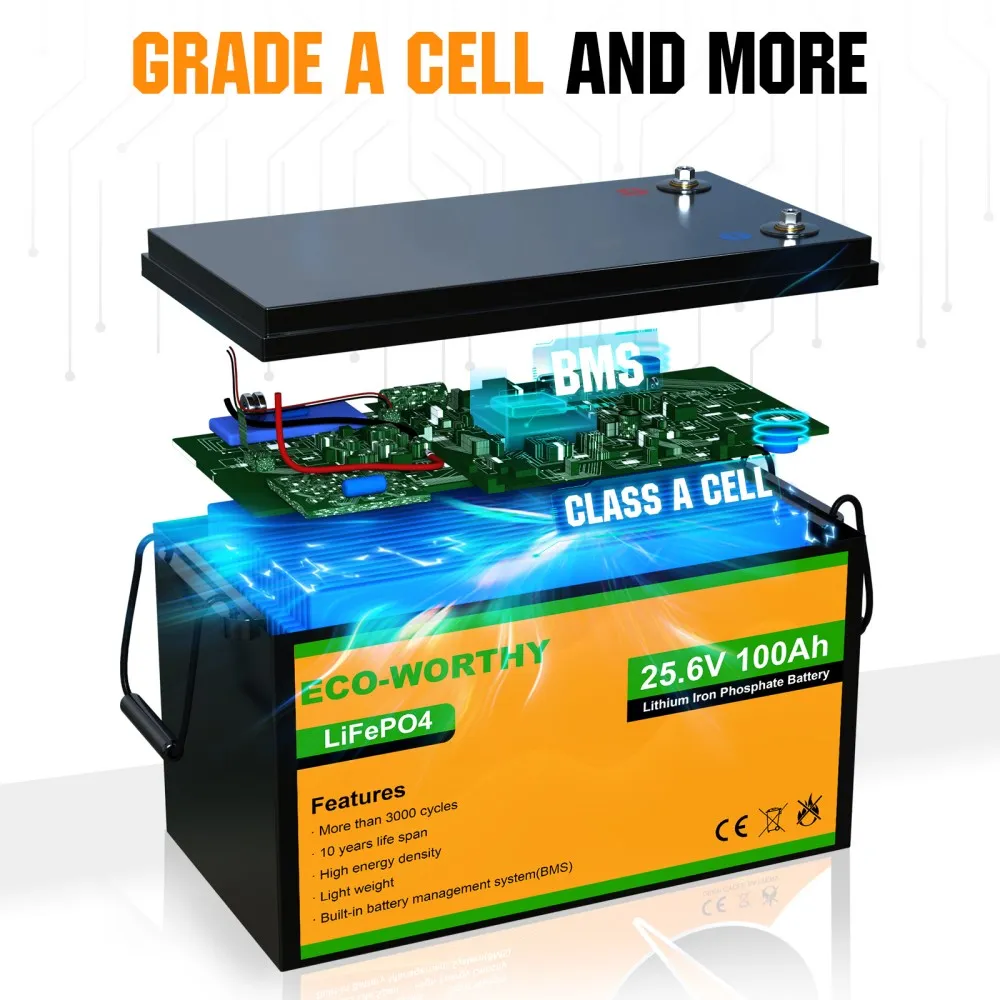

100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 2560Wh |
| Battery Voltage: 25.6V | Maximum Charging Current: 100A |
| Maximum Discharging Current: 100A | Max Charge Voltage: 29.2V |
| Operating Temperature: -4°F to 140°F | BMS: Integrated battery management system |
| Terminal: M8 screw | Size: 15.1*7.6*10inch |
| Weight: 44.75lbs |

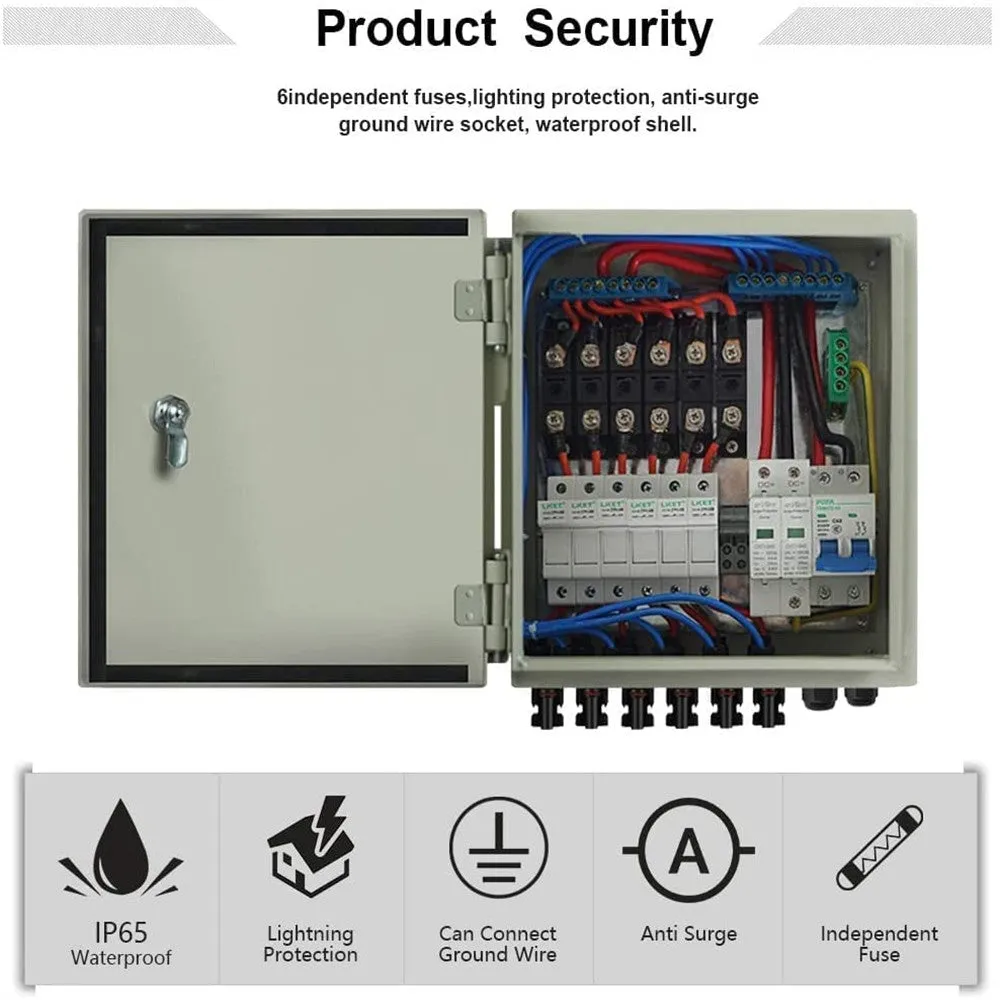

6 String PV Combiner Box
| Number of Max. connection solar array: 6 | Max input current of single solar array: 10A |
| Total input current of solar array: 60A | Max input solar system wattage (12/24/48V): 1080/2160/4320W |
| Max Input Voltage of single solar array: 250V | Max Output Voltage: 250V |
| Number of circuit breaker poles: 2 | Circut breaker rated current: 63A |
| Product Weight: 4.9kg | Product Size: 260*320*115mm |

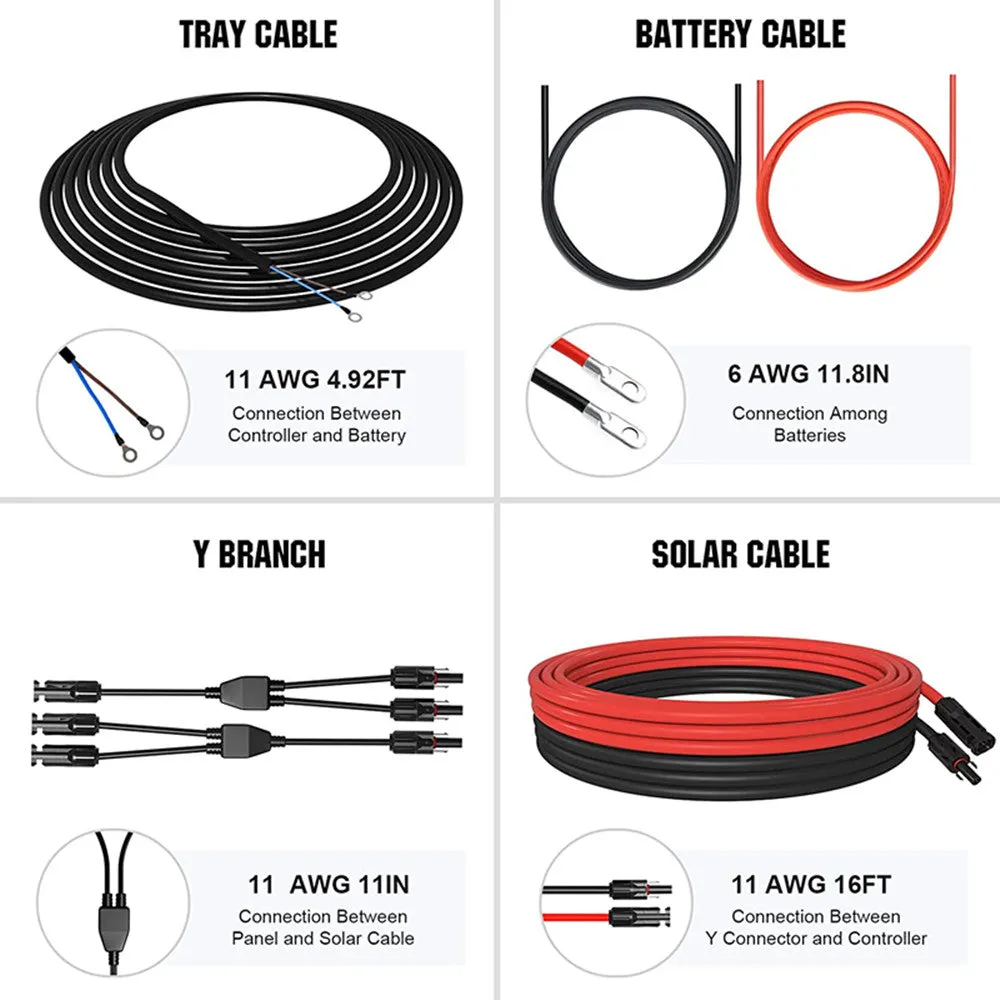

16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to 185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
