Specifications:

• Product Number: EY7A005
• Total power: 600 W
• AC input voltage: 200 - 240 V
• AC input frequency: 50 Hz
• Input current: 5 A
• Combined power ( 3.3V): 97 W
• Combined power ( 12V): 588 W
• Combined power ( 5V): 97 W
• Combined power (-12V): 3.6 W
• Combined power ( 5Vsb): 12.5 W
• Max output current ( 3.3V): 15 A
• Max output current ( 12V): 49 A
• Max output current ( 5V): 15 A
• Max output current (-12V): 0.3 A
• Max output current ( 5Vsb): 2.5 A
• Power protection features
• Over current
• Over power
• Over voltage
• Short circuit
• Under voltage

Ports & interfaces

• Motherboard power connector: 24-pin ATX
• Motherboard power cable length: 57 cm
• Number of SATA power connectors: 5
• SATA power cable length: 500
• Peripheral (Molex) power connectors (4-pin): 1
• Peripheral (Molex) power cable length: 820 mm
• PCI Express power connectors (8-pin): 2
• ATX Power connector (24-pin): Yes
• Cabling type: Modular

Performance

• 80 PLUS certification: 80 PLUS Bronze
• Supported motherboard form factors: ATX
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• Mean time between failures (MTBF): 80000 h

Design

• Product colour: Black
• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• Built-in display: No
• On/off switch: Yes

Packaging content

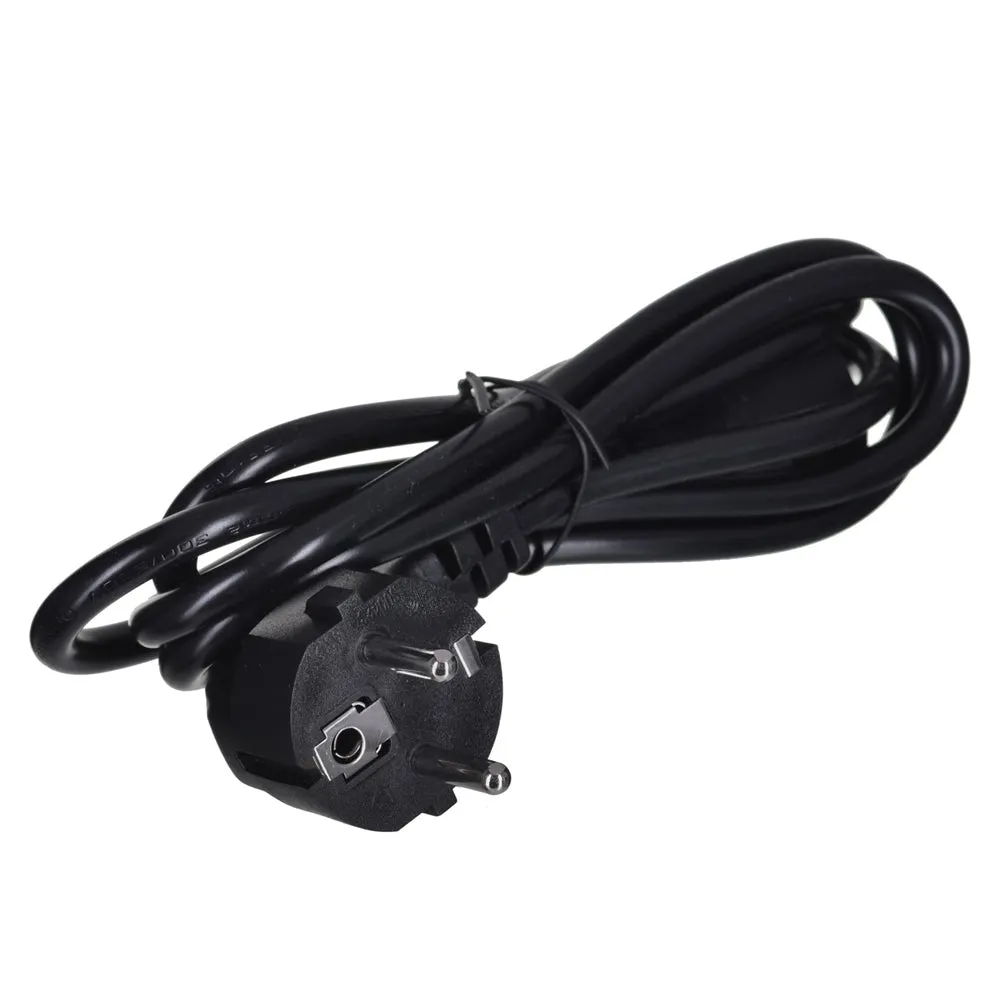

• Cables included: AC

Weight & dimensions

• Width: 140 mm
• Depth: 150 mm
• Height: 87 mm
• Weight: 1.69 kg

Technical details

• Sustainability compliance: Yes
• Sustainability certificates
• CE
• Federal Communications Commission (FCC)
• RoHS
