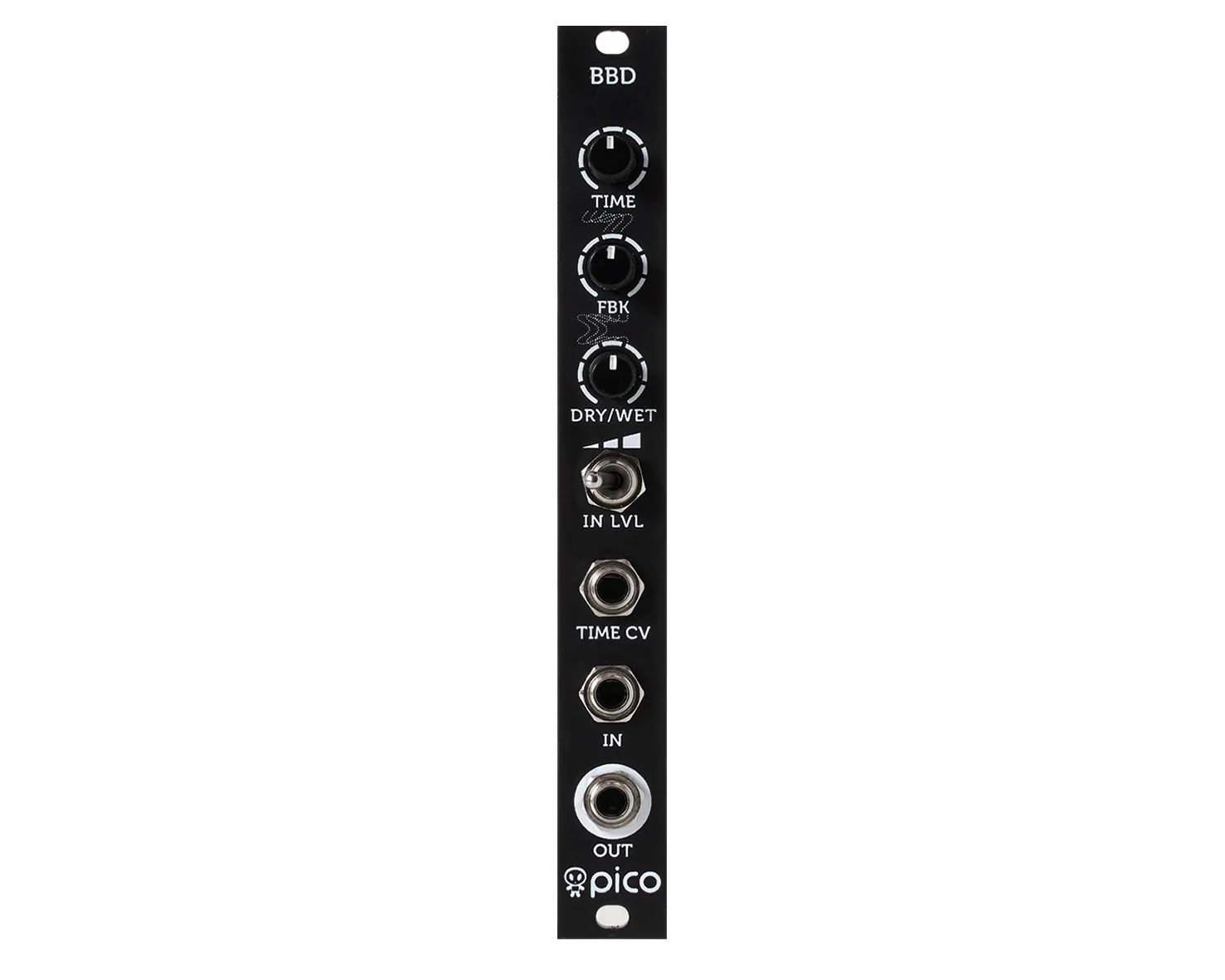

The Pico BBD from Erica Synths is a lush, fully analogue 4092 stage bucket brigade delay module; the smallest BBD in eurorack. Besides its nice flanger and delay effects, fully cranked TIME and feedback knobs can produce extreme sonic artefacts. Take note that this BBD unit doesn't have any kind of post delay filter therefore the higher the delay time setting the higher the produced noise in the output.

Features

• Full analogue circuit
• 4092 stage BBD chip
• Up to 300ms delay time
• CV control over delay time
• Input and output protection against overvoltage
• Protection against reverse PSU connection
• NB! Unlike most BBD units, this BBD unit doesn't have any kind of post delay filter therefore the higher the delay time setting the higher the produced noise in the output, retaining higher frequency signals.

Technical specifications:

• Delay time up to 300ms
• CV input level (full span) -5V - 5V
• Power consumption 20mA, -9mA
• Module width 3HP
• Module depth 35mm

Video:

Product Specs

• Item Number: 15005
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Latvia
• MPN: ES-PicoBBD
• EAN: 4751030825588
• Modular Grid: Eurorack
• Dimensions: 3 HP 35 mm deep
• Power: 20 mA 12V 9 mA -12V ? mA 5V
