Product Details
＋
| ATX Cable | 1x 550mm |
| EPS Cable | 2x 600mm |
| PCIe Cable | 3x 550mm, 700mm |
| SATA Cable | 3x 500mm, 650mm, 800mm |
| Four-Pin Peripheral Cable | 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm 1000mm (Floppy) |
| Floppy Adapter | 1x |
| AC Power | 1x 1800mm |

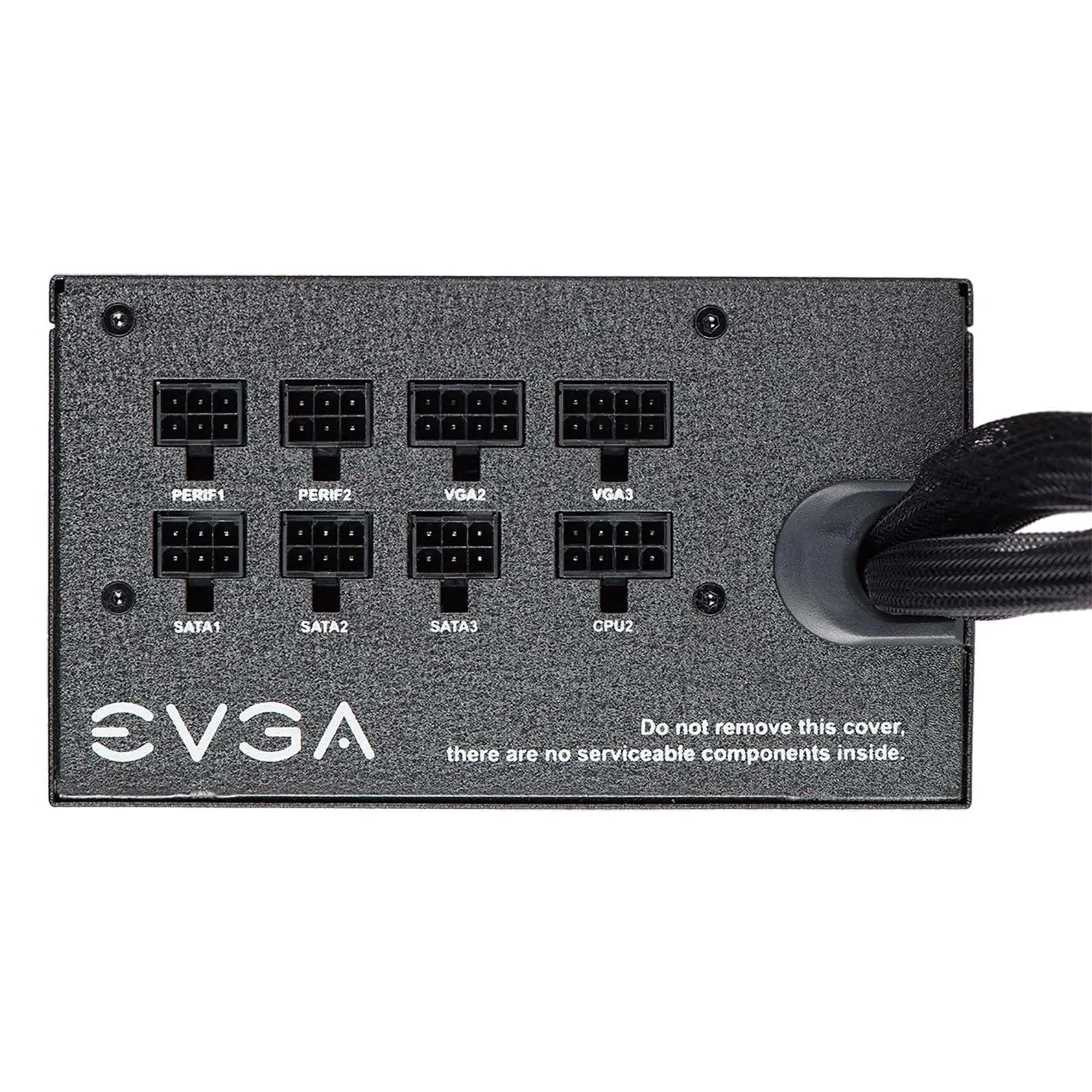

| Modular Cable Type | Semi-Modular |
| Connector Quantity | |
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4 4) |
| PCIe | 3x |
| SATA | 9x |
| Four-Pin Peripheral | 5x |
| Floppy | 1x |
| Input | |

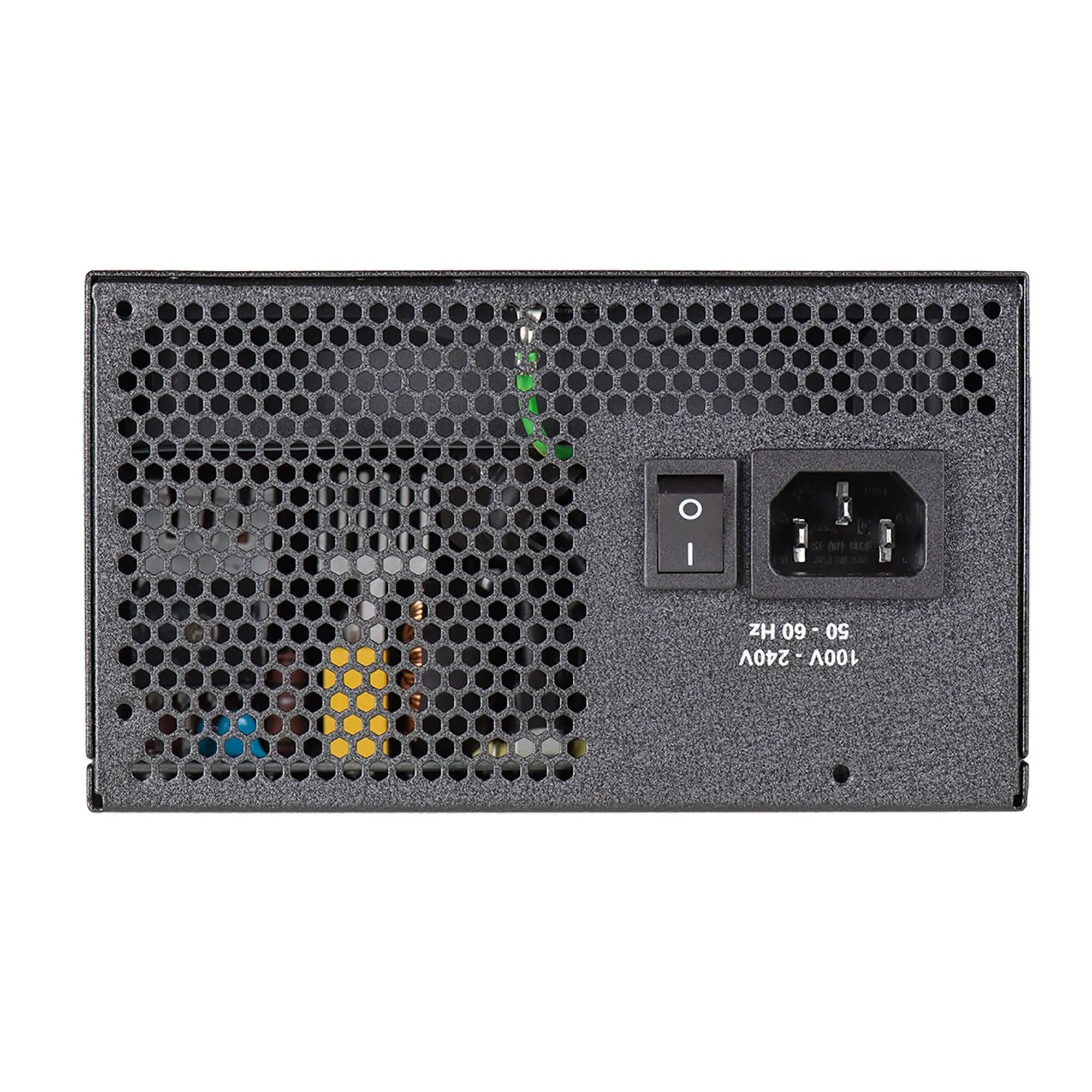

| Input Voltage | 100 - 240 VAC |
| AC Input | 10A |
| Input Frequency Range | 50-60Hz |
| Efficiency | 85% Typical |

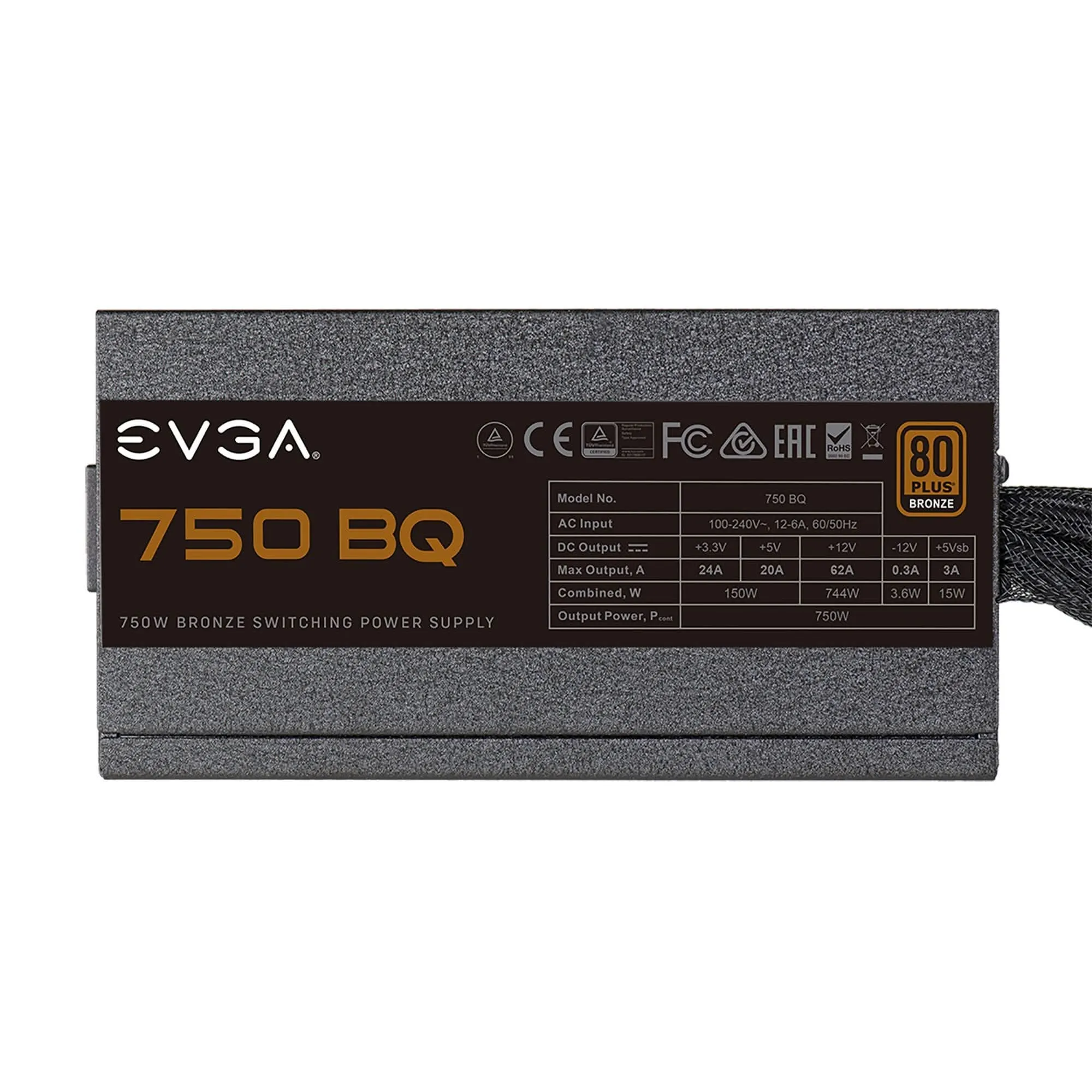

| Output | |
| Total | 750W @ 40C |
| Max Output | 150W |
| Max Output:- 24A / 20A | |
| Rail:- 3.3V / 5V | |
| 744W | |
| Max Output:- 62A | |
| Rail:- 12V | |
| 15W | |
| Max Output:- 3A | |
| Rail:- 5Vsb | |
| 3.6W | |
| Max Output:- 0.3A | |
| Rail:- -12V | |
| Additional Details | |
| Operating Temperature | 0∞ to 40∞ C |
| Japanese Capacitors | Main PCB |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Gross Weight | 5.68 lbs |
| Size | 85mm (H) x 150mm (W) x 165mm (L) |
| Approvals | TUV, CE, FCC, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 140mm Teflon Nano-Steel Bearing |
| Warranty | 5 Years |
