Product Details

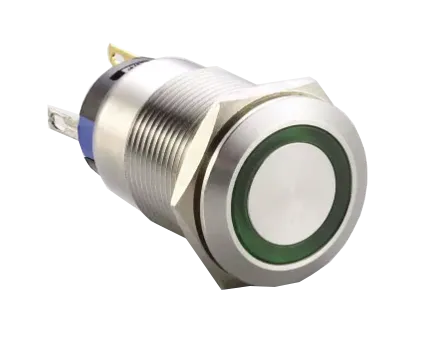

F19-371BF19-371G, 19mm Latching Pushbutton Switch Metal with GREEN Ring Illumination, 1xNO 1xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops

Description

  • Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 1xNO 1xNC, Lettering, varnished in different colours
  • Assembly by mounting with nut
  • Pin connections, Pins with Soldering Aid or Clip for Pins

Characteristics

  • Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
  • Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp
  • 24VDC Illumination Supply Voltage
  • Zinc die-cast for housing and actuator For indoor use, no Illumination, 1xNO 1xNC, no lettering
  • Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols
  • Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data)
  • Tamper Proof suitable for public spaces
Specification
Fastron Electronics Part Number F19-371B
Switch Size 20 x 19mm
Nominal Voltage 250VAC/DC
Rated Power 750W
Switch Type Latching 1NO 1NC
Illumination voltage 24VDC @ 10mA
Illumination Type GREEN RING
Nominal Current (AC/DC) 3 Amp @240VAC/24VDC
Contact Resistance ON/OFF <100m Ohm
Dimensions ø22 x 14.6mm
Operating Temperature Range -20°C / 85°C
Termination Faston/Solder Pins
IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit)
Unit Weight 40g
Factory Pack Qty 10



Datasheet
F19-371G, 19mm Latching Pushbutton Switch Metal with GREEN Ring Illumination, 1xNO 1xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops
