Product Details
＋

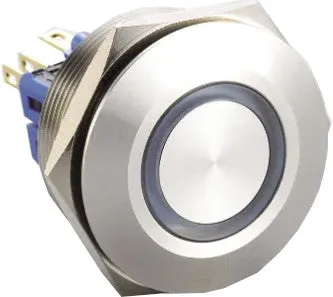

F30-272Y, 22mm Momentary Pushbutton Switch Metal with YELLOW Ring Illumination, 2xNO 2xNC, 3 Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops
Description
- Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 2xNO 2xNC, Lettering, varnished in different colours
- Assembly by mounting with nut
- Pin connections, Pins with Soldering Aid or Clip for Pins
Characteristics
- Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
- Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp
- 24VDC Illumination Supply Voltage
- Zinc die-cast for housing and actuator For indoor use, no Illumination, 2xNO 2xNC, no lettering
- Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols
- Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data)
- Tamper Proof suitable for public spaces
Specification
| Fastron Electronics Part Number | F30-272Y |
| Switch Size | 20 x 22mm |
| Nominal Voltage | 250VAC/DC |
| Rated Power | 750W |
| Switch Type | Momentary 2xNO 2xNC |
| Illumination voltage | 24VDC @ 10mA |
| Illumination type | YELLOW RING |
| Nominal Current (AC/DC) |
3 Amp @240VAC/24VDC |
| Contact Resistance ON/OFF | <100m Ohm |
| Dimensions | ø22 x 14.6mm |
| Operating Temperature Range | -20°C / 85°C |
| Termination | Faston/Solder Pins |
| IP Protection Rating | (IP 67 with Oring) IP 64 (IP40 switching circuit) |
| Unit Weight | 40g |
| Factory Pack Qty | 10 |
