Product Details
＋
- Wattage
- Certification
- Modular
- PCIe Connector (6 2)
- SATA Connector
- Peripheral (4-Pin)
- Warranty

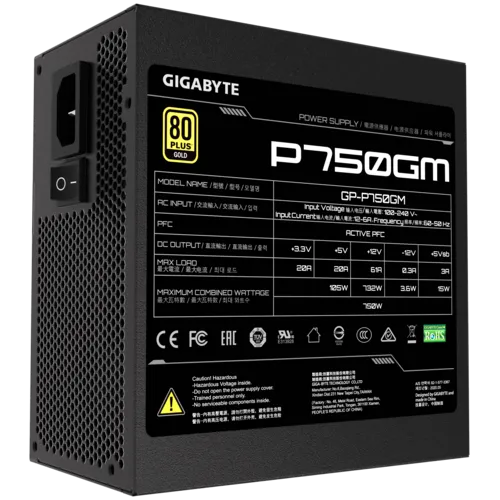

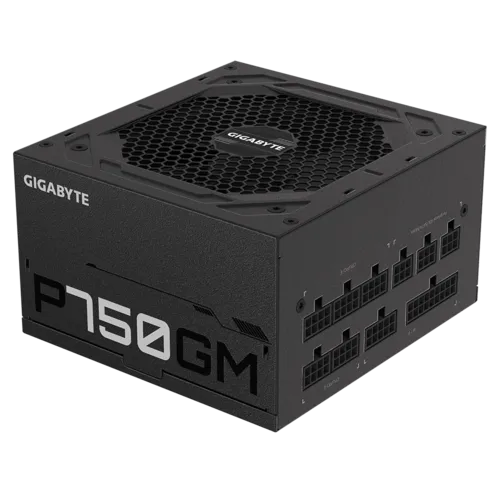

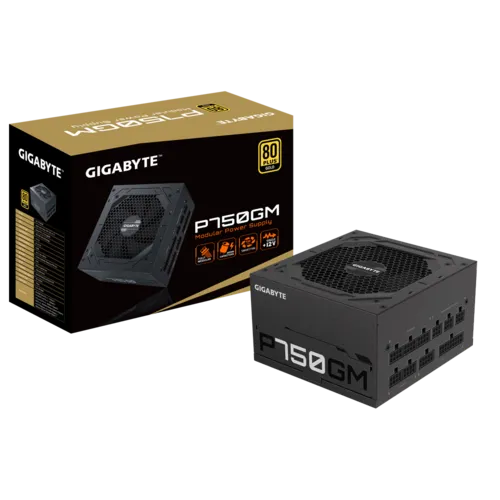

| Model | GP-P750GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 1?00-240 Vac (full range) |
| Input Current | 1?2-6 A |
| Input Frequency | 6?0-50 Hz |
| Output Capacity | 7?50W |
| Dimension | 1?50 x 140 x 86 mm |
| Fan Type | 1?20mm Hydraulic Bearing ( HYB ) fan |
| 80 PLUS | Gold |
| Efficiency | 9?0% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 1?00-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |

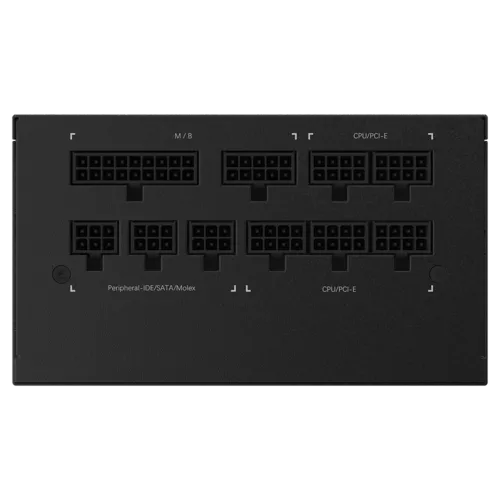

| Connectors | ATX/MB 20 4 Pin x 1 : 610mm*1 CPU/EPS 4 4 Pin x 2 : 600mm*2 PCI-e 6 2 Pin x 4 : 600mm 150mm*2 SATA x 8 : 600mm 150mm 150mm 150mm*2 : 4 Pin Peripheral x 3 4-Pin floppy x 1 : 500mm 120mm 120mm 120mm *1 |
| Warranty | 5 Years |
