Product Details
＋

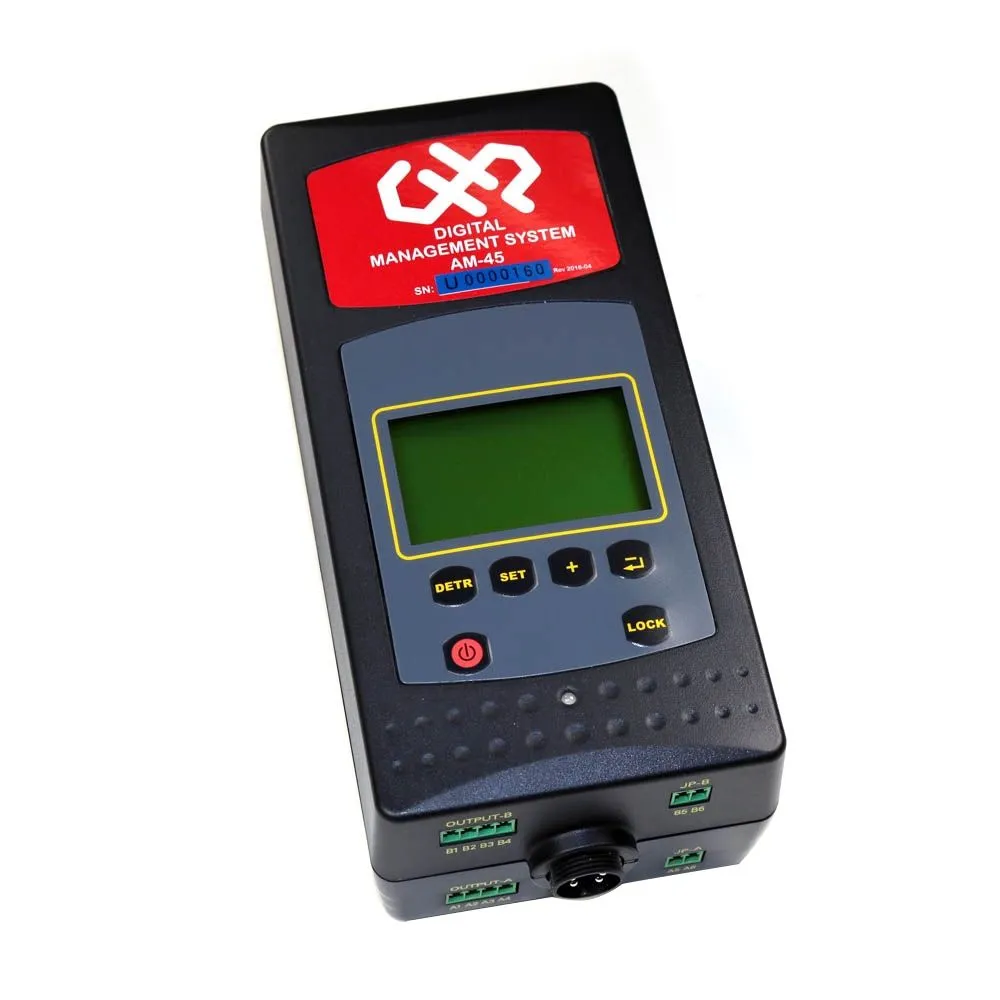

ERROR-PROOFING SYS,DIGITAL,DRIVER,AT-4500 SERIES
Specifications
| Part No. | AM-45 |
| Input Voltage | 100-240VAC, 50/60Hz |
| Power Consumption | 70W |
| Output Voltage | 25 - 35 VDC |
| Maximum Number of Workpiece | 60000 |
| Maximum Screws in Single Workpiece | 99 |
| Maximum Number of Sample | 99 |
| Number of Profile/Memo | 10 set |
| Fastening time | 0.01 - 9.99 seconds |
| Fastening time tolerance | ±1 -99% |
| Signal Output Mode | Dry Contact |
| Output Voltage Setting | Stepless Control |
| Output Pin | 5 Pin |
| Output Signal | Switch Signal, Shut-off Signal, Workpiece complete signal, Fastening OK signal, Fastening NG signal |
| Input Signal | ON/OFF switch signal |
| Number of Controlled Screwdriver | 1pc |
| Applicable Model | AT-2000 AT-3000 AT-4000 AT-4500 |
| Dimension | 176 x 84 x 61mm |
| Weight | 450g (0.66lb) |
| Safety Approval |
ERROR-PROOFING POWER SUPPLY
• Monitor assembly process
• Ensure proper installation
• Multiple profile settings
• External control terminals
CONTENTS
| Item No. | Description |
| AM-30/AM-45/AM-85 | Error-proofing Power Supply |
| AT-2W1024 | Power Cord |
| -- | RPM Adjustment Tool |
| AT-2T6012 (2pcs) | 4 Pin Terminal Connector |
| AT-2T6011 | 2 Pin Terminal Connector |
| AT-2T6011-1 | 2 Pin Terminal Connector |
| -- | Instruction Manual |
