Product Details
＋

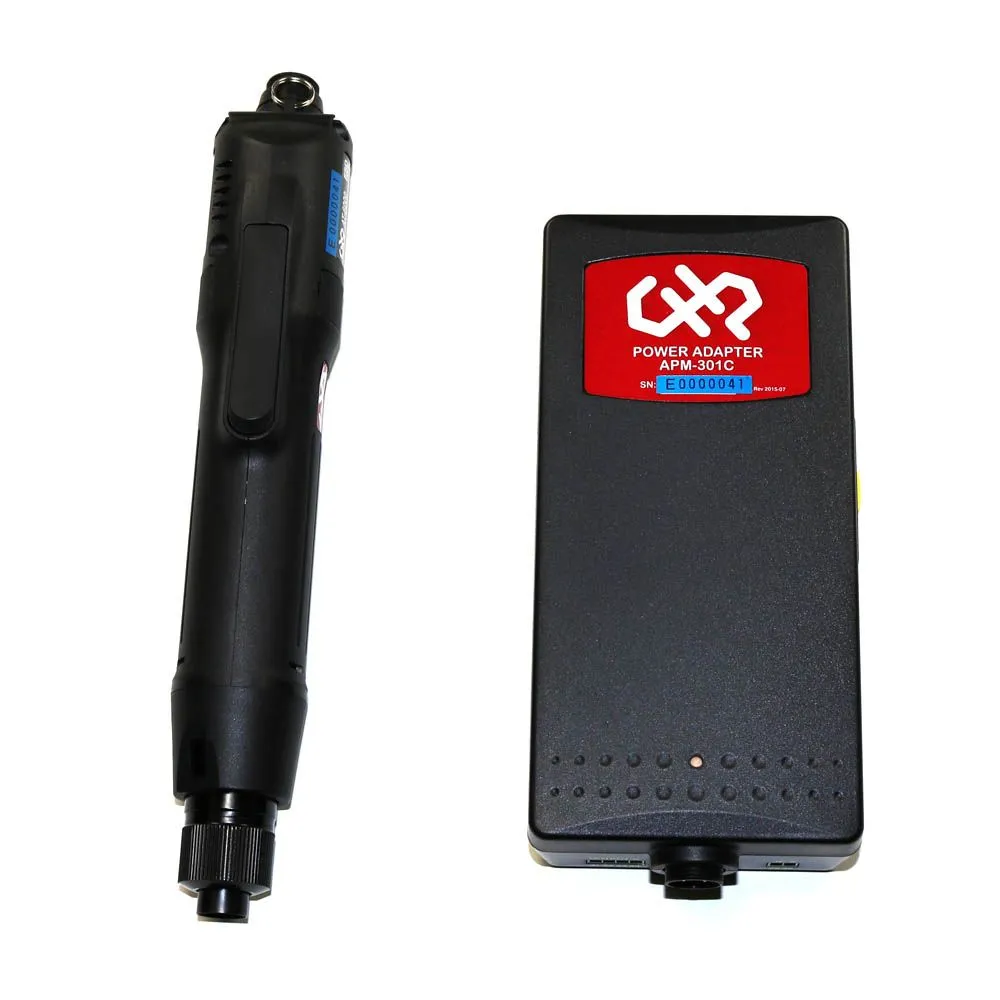

CHP brush type electric screwdrivers feature large side windows for easy access and fast replacement of carbon brushes.
Specifications
| Driver Model No. | AT-6500 |
| Part No. | AT-6500C |
| Input Voltage | 100-240VAC, 50/60Hz |
| ESD Safe | Yes |
| Power Consumption | 75W |
| Driver | |
| Torque Range | 3.5 - 17.4 lbf-in (4.0 - 20.0 kgf-cm) |
| Speed | 550 - 850 RPM |
| Torque Setting | Stepless |
| Motor Type | Brush |
| Connecting Cable Length | 2.4m (7.9ft) |
| Weight | 490g (1.1 lb) |
| Length | 228 mm (9.0 in) |
| Available Bit shank | 1/4" (6.35mm) Hex shank |
| Power Supply | |
| Part Number | |
| Output Voltage | 20 - 30 VDC |
| Dimension | 172 x 84 x 46 mm |
| Weight | 380g (0.84 lb) |
| Power Cord Length | 1.8m (5.9 ft) |
| Safety Approval |
What's in the box?
| Description | Part No. |
| 1/4" Hex Phillips Bit (No. 1 X 3.0) | -- |
| 1/4" Hex Phillips Bit (No. 2 X 6.0) | -- |
| Connecting Cable | |
| Driver | AT-6500 |
| Power Supply | |
| Power Cord | |
| 4 Pin Terminal Connector | |
| 2 Pin Terminal Connector | |
| Torque Cover, Installed on driver | |
| RPM Adjustment Tool | -- |
| Replacement Carbon Brush (2) | |
| Instruction Manual | -- |
• Full Auto Shut-off
• Stepless speed control
• ESD safe
• Soft start feature for safer operation
Note: Includes Screwdriver and Power Supply. Please see below for other options.
• Driver, Power Supply, & Spring Balancer
