Harting HAN-ECO MONOBLOCK KIT 6 (16B GG) Heavy Duty Power Connector 10410000006

Features:

• Han-Eco "click and mate" assembly concept
• Can be mounted to back of electrical cabinet
• Optimum protection against environmental influences
• Modules from the Han-Modular series can be used
• Weight reduction combined with mechanical strength
• Fast assembly process without tools
• Highly resistant to environmental stress, suitable for use in outdoor applications
• Complete range of modules from Han-Modular series usable
• Capable for applications according protection class II
• Same panel cut out as Han B housings, bulkhead mounting
• Optional PE contact module for hold the protective ground conductor
• Not mating compatible with series Han® B
• New hoods/housings series made of thermoplastic material with excellent mechanical properties and high resistance against environmental influence
• Weight and cost optimized
• Quick assembly without screws and tools ("click and mate")
• One extra module fits into the Han-Eco hoods/ housings compared to equivalent size of Han B series

Specifications:

• Manufacture: HAN-ECO
• Part # 10410000006
• Current Rating: 16 A  
• Number of Positions: 20 Position PE     
• Termination Style: Screw      
• Voltage Rating: 500 V 
• Housing / Hood Size: 16B      
• Cable Entry Angle: Top  
• Insert / Contact Gender: Male, Female     
• Thread Size: M40
• Wire Gauge Min: 18 AWG      
• Wire Gauge Max: 14 AWG
• Housing Material: Polyamide (PA)    
• Contact Plating: Silver 
• Contact Material: Copper Alloy

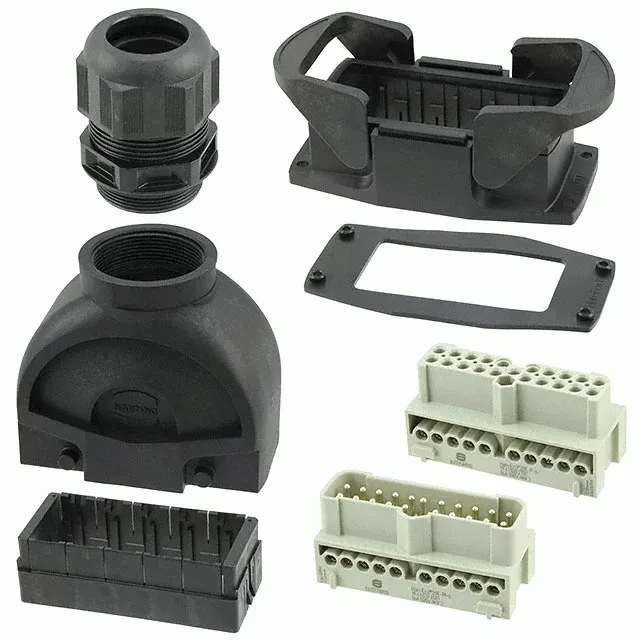

Kit includes the following parts:

• Part # 19 41 016 0301 Description: Han-Eco® 16B Panel Mt. Housing
• Part # 19 41 116 0423 Description: Han-Eco® 16B TE M40 with cable gland
• Part # 19 41 020 2601 Description: Han Eco® 20E-M-s
• Part # 19 41 020 2701 Description: Han Eco® 20E-F-s
