Product Details
＋

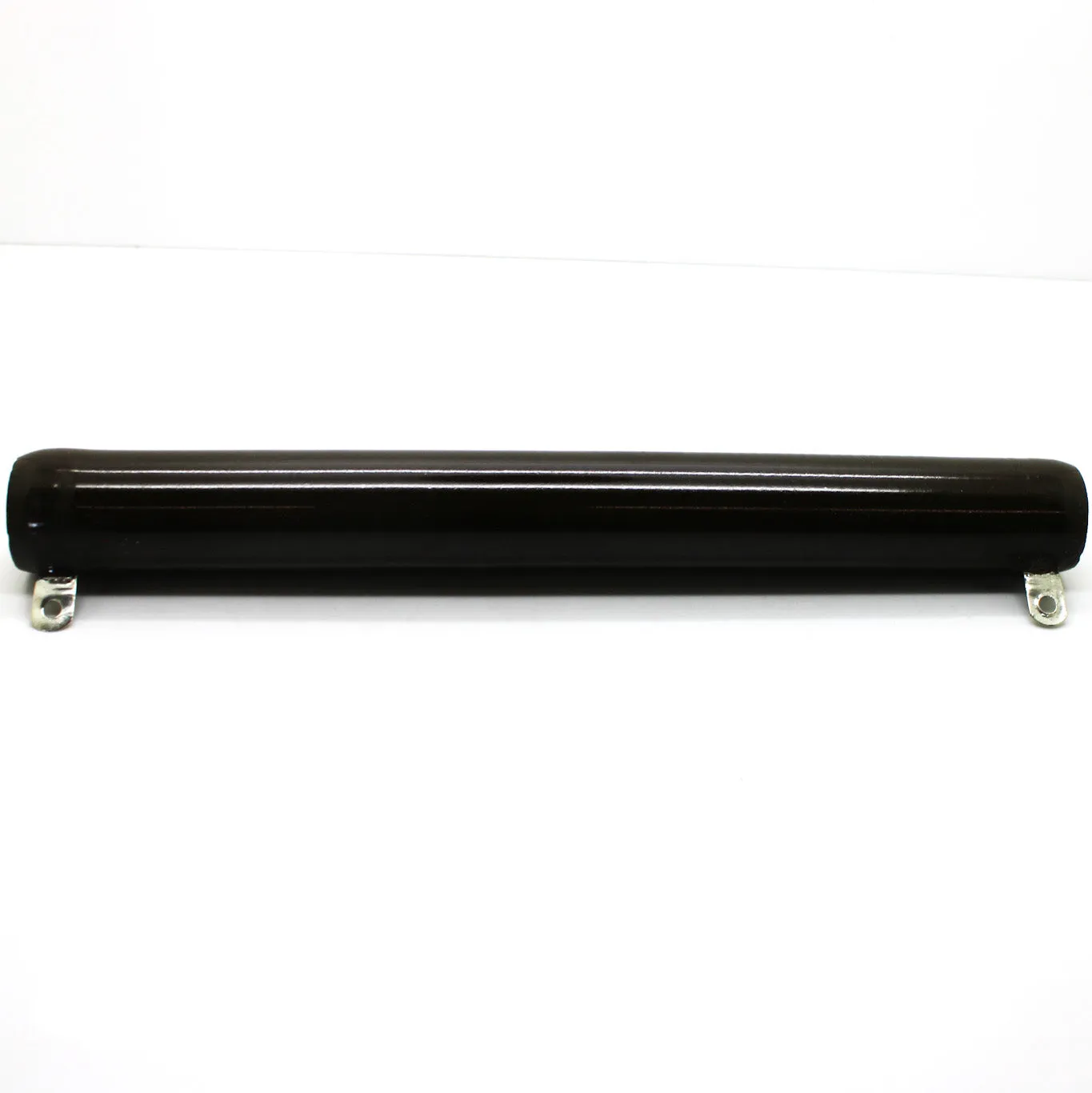

This is a Ohmite 225W 10ohm 5% High Power Wirewound Resistor. Its part number is L225J10RE.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Ohmite
- Part #: L225J10RE
- Product Category: Wirewound Resistors - Chassis Mount
- Series: 270
- Resistance: 10 Ohms
- Power Rating: 225 W
- Tolerance: 5 %
- Voltage Rating: 4.595 kV
- Termination Style: Solder Lug
- Length: 267 mm
- Diameter: 28.6 mm
- Features: Tubular Resistors
- Mounting Style: Chassis Mount
- Operating Temperature Range: 25 C to 350 C
- Product: Tubular Resistors
- Unit Weight: 10.702438 oz
