Product Details

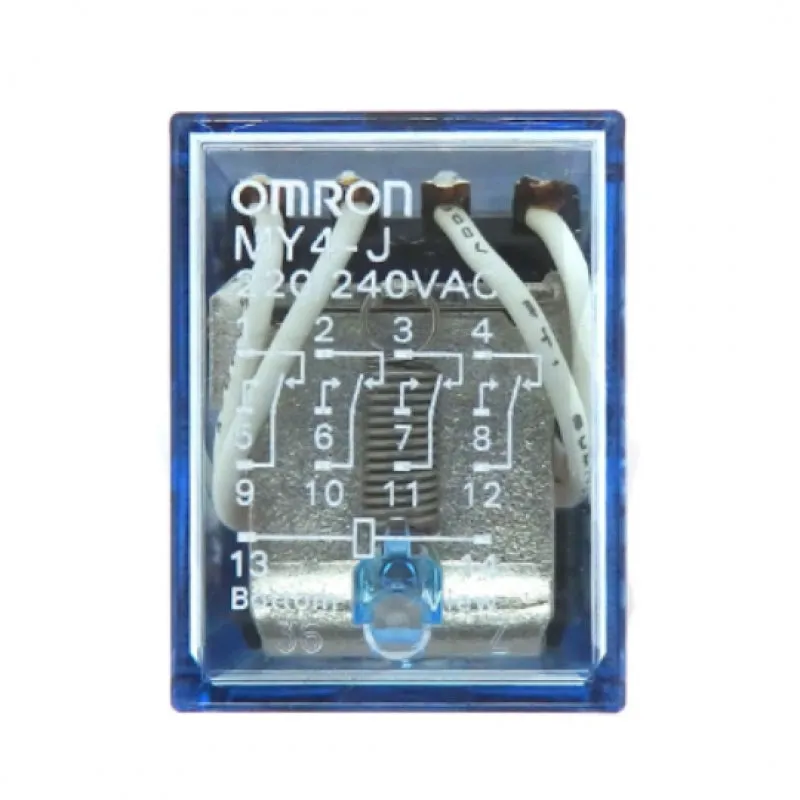

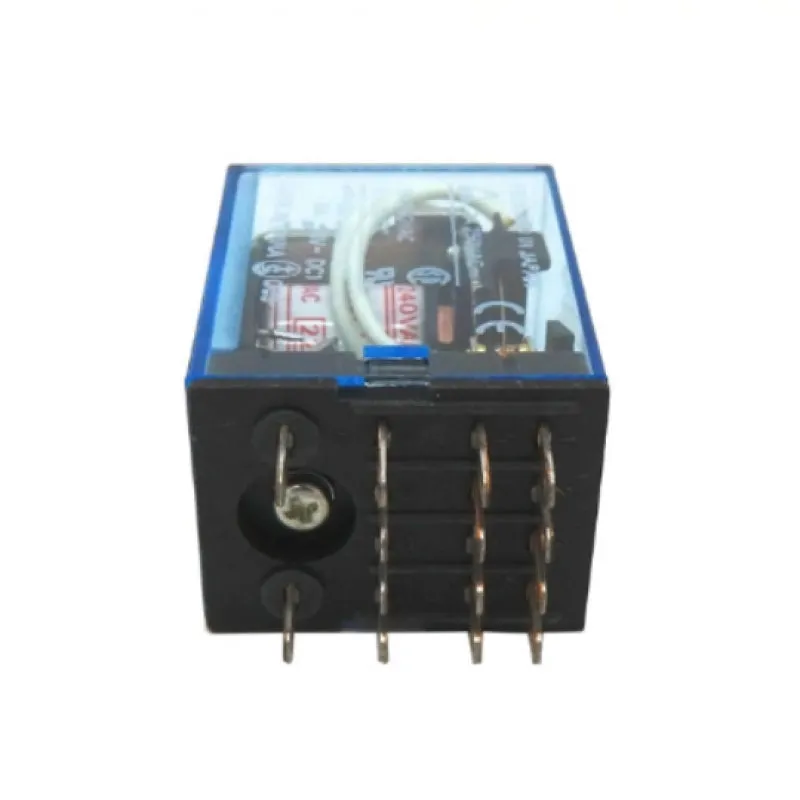

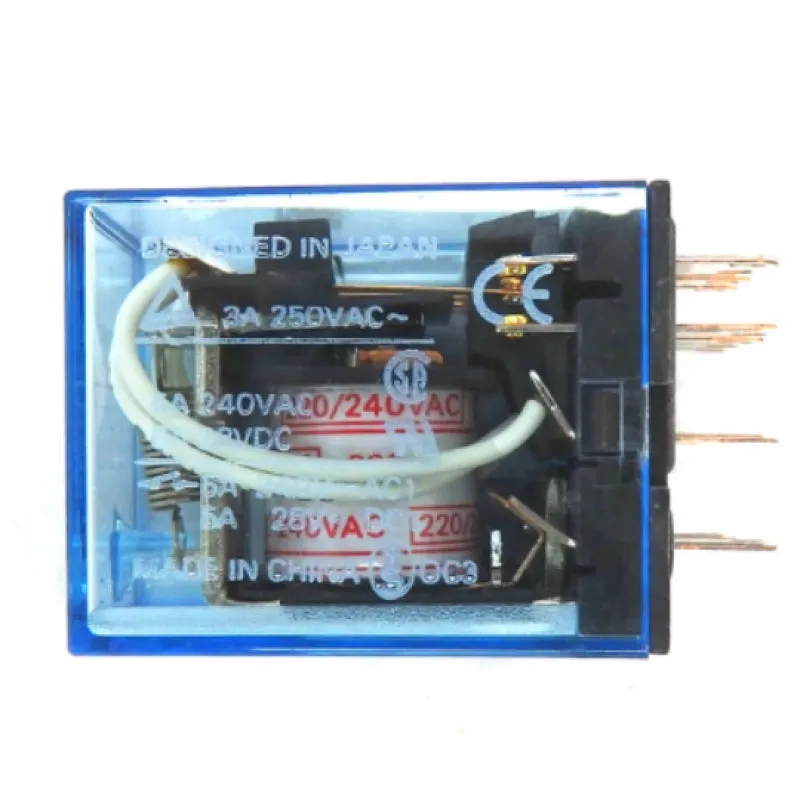

This is an Omron 220/240VAC 4PDT (4 Form C) 3A 14 pin power relay. Its part number is MY4-J-AC220/240. This relay is new and has never been used. It was originally bulk packaged and we have repackaged it for individual sale.

It comes as pictured and does not include any additional parts or accessories.

Specifications:

  • Manufacturer: Omron
  • Part Number: MY4-J-AC220/240
  • Series: MY
  • Coil Type: Non Latching
  • Coil Current: 4.2mA
  • Coil Voltage: 240VAC
  • Contact Form: 4PDT (4 Form C)
  • Contact Rating: (Current) 3A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Turn On Voltage (Max): 192 VAC
  • Turn Off Voltage (Min): 72 VAC
  • Operate Time: 20ms
  • Release Time: 20ms
  • Mounting Type: Socketable
  • Termination Style: Plug In
  • Contact Material: Silver (Ag)
  • Coil Power: 1.1 VA
  • Coil Resistance: 18.79 kOhms
  • Operating Temperature: -55°C ~ 70°C
Omron 220/240VAC 4PDT 3A 14 Pin Power Relay MY4-J-AC220/240
