Omron 5VDC 8A DPST General Purpose Relay G2RG-2A4 DC5
Omron 5VDC 8A DPST General Purpose Relay G2RG-2A4 DC5
  • Omron 5VDC 8A DPST General Purpose Relay G2RG-2A4 DC5
  • Omron 5VDC 8A DPST General Purpose Relay G2RG-2A4 DC5
Product Details ＋

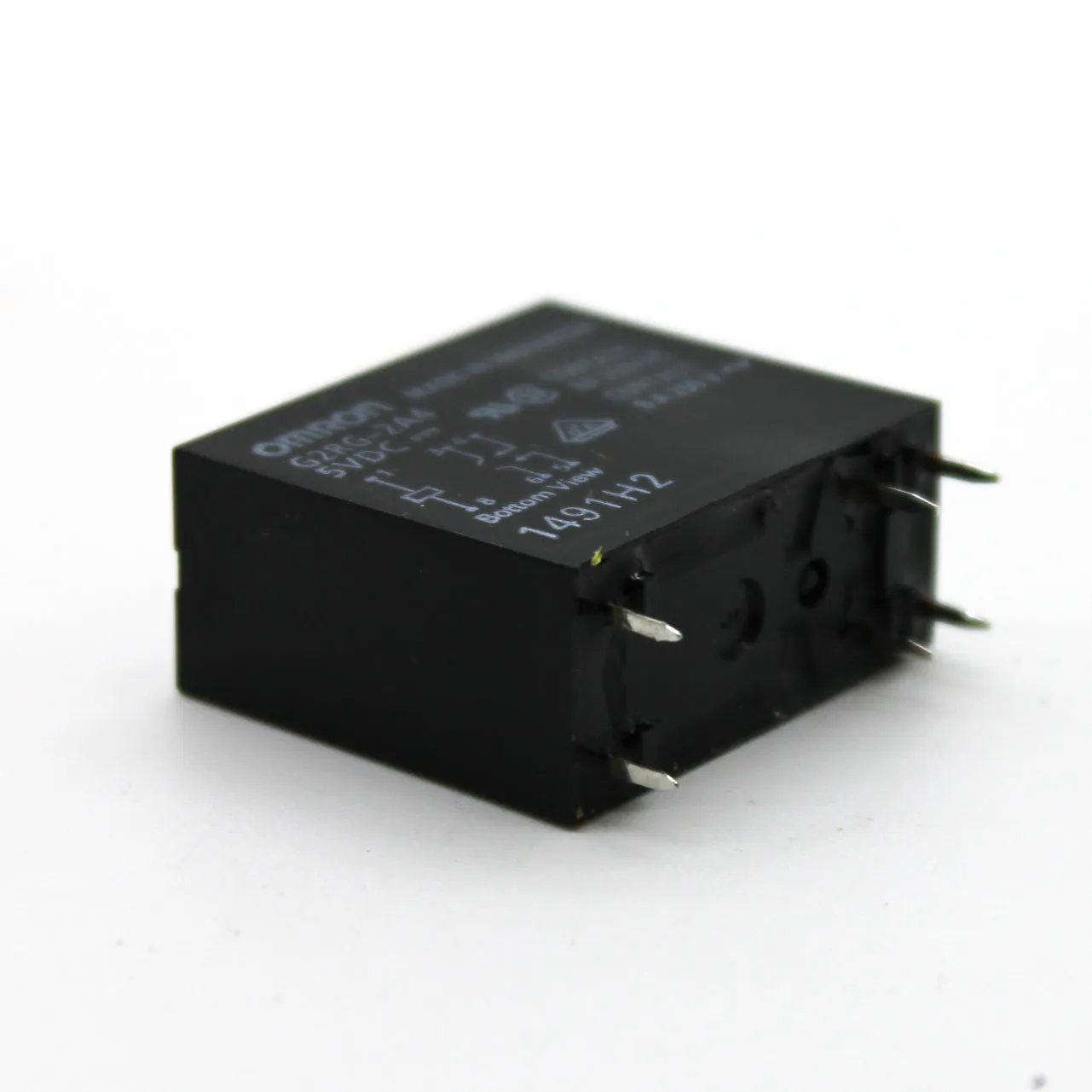

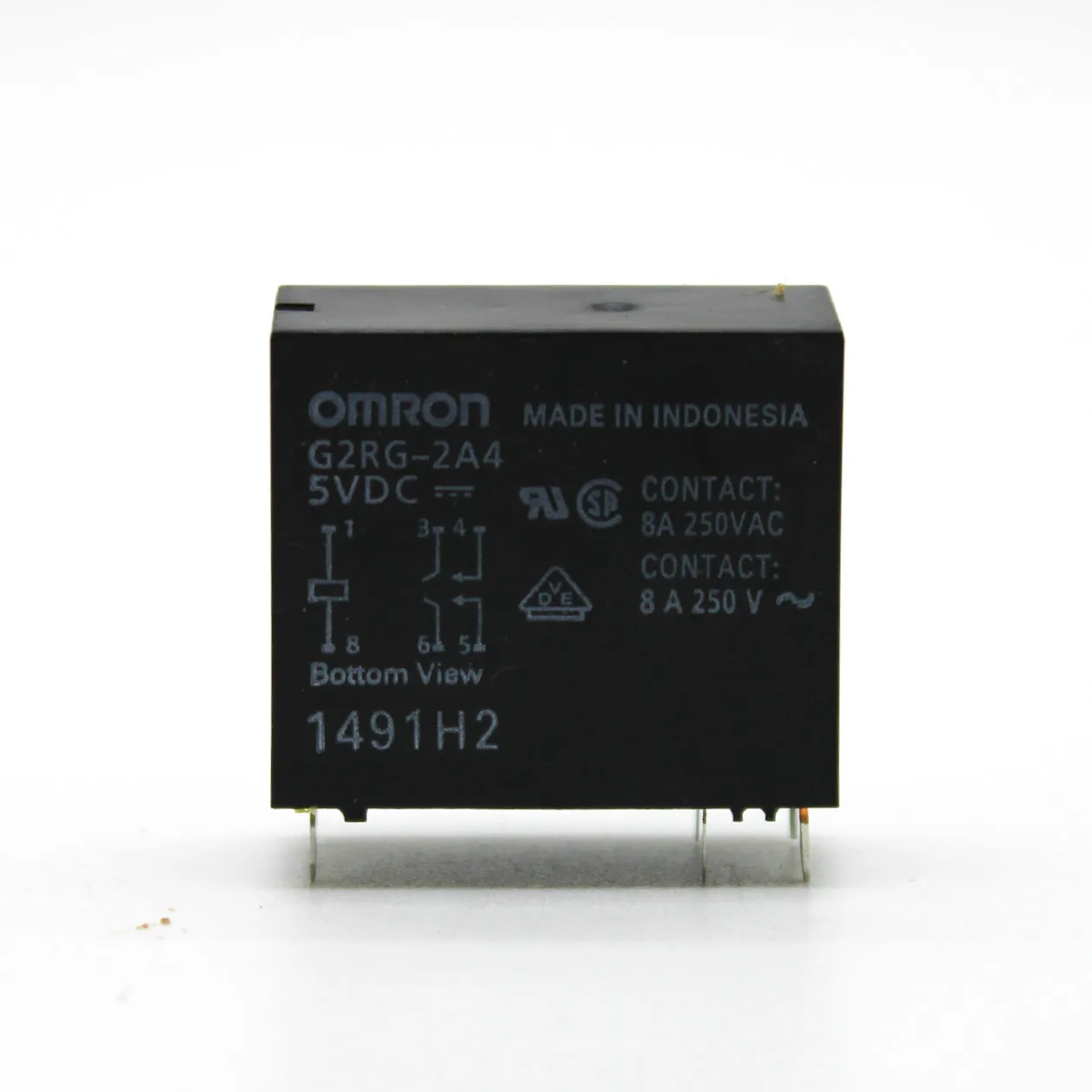

This is an Omron 5VDC 8A DPST General Purpose Relay. Its part number is G2RG-2A4 DC5.


This item comes as pictured and does not include any additional parts or accessories.


Specifications:
  • Manufacturer: Omron
  • Type: High Capacity
  • Coil Voltage: 5 VDC
  • Relay Contact Form: 2 Form A (DPST-NO)
  • Contact Current Rating: 8 A
  • Contact Termination: Solder Pin
  • Mounting Style: Through Hole
  • Switching Voltage: 380 VAC, 125 VDC
  • Coil Termination: Solder Pin
  • Coil Type: Non-Latching
  • Coil Resistance: 31.3 Ohms
  • Coil Current: 160 mA
  • Contact Material: Silver Alloy (Ag)
  • Series: G2R
  • Length: 29 mm
  • Width: 13.5 mm
  • Height: 25.7 mm
  • Contact Form: DPST (2 Form A)
  • Power Consumption: 800 mW
Omron 5VDC 8A DPST General Purpose Relay G2RG-2A4 DC5
  • DefaultTitle

$ 76.15

$ 58.58
