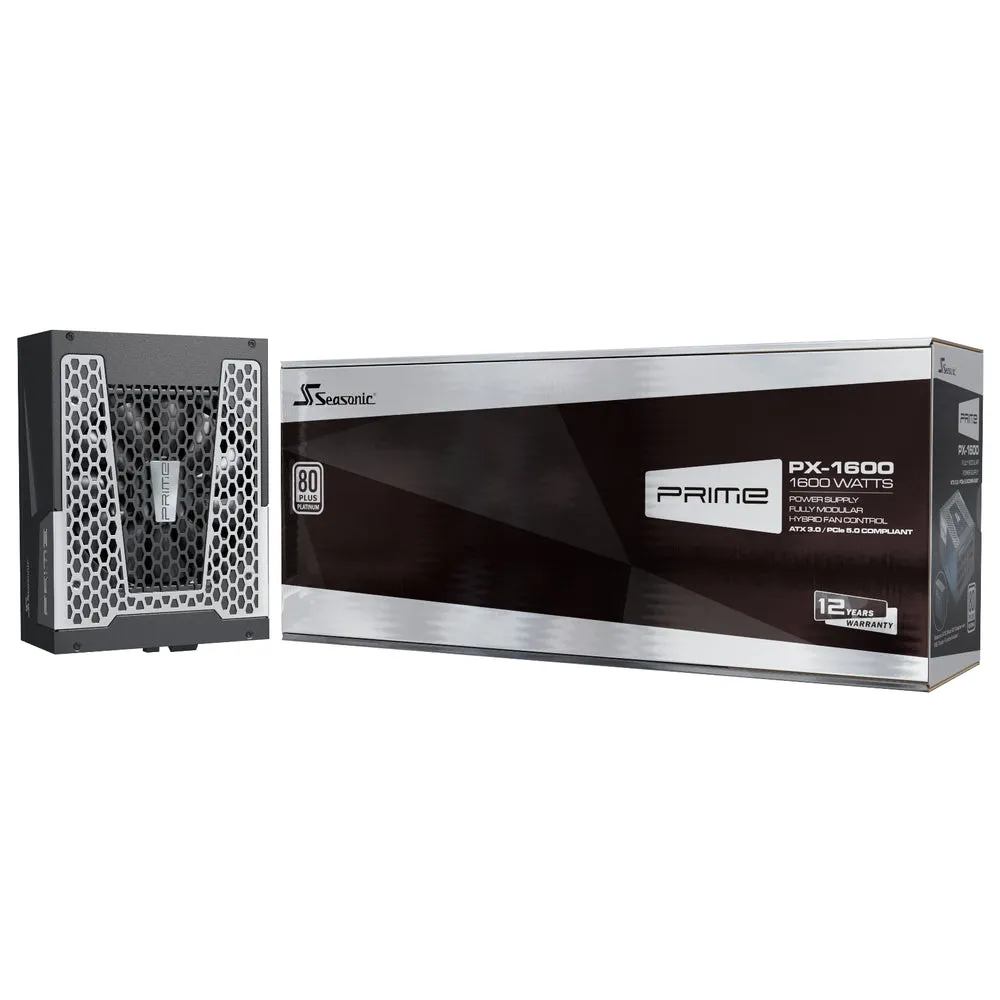

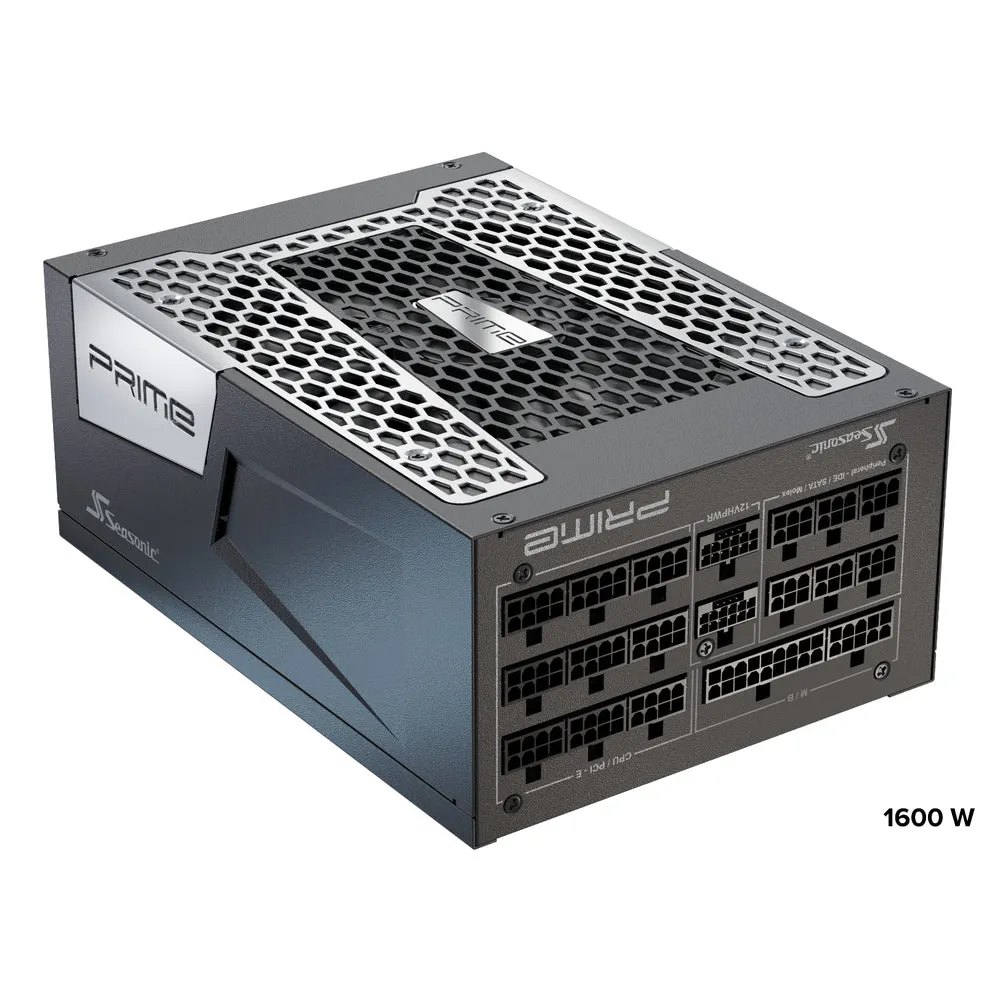

Seasonic SSR-1600PD2 PS Prime PX-1600 1600W Platinum ATX PSU

The Seasonic PRIME PX 3.0 Series is a high-performance power supply unit that is perfect for powering high-end graphic cards and processors. This 1600W PSU is equipped with native 12VHPWR connectors, Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors for unwavering power delivery and long-term durability. With 80 PLUSr Platinum certification, it boasts 92% efficiency at 50% system load.

Features:

• Operating relative humidity (H-H): 15 - 65
• Operating temperature (T-T): 0 - 50
• Total power: 1600W
• Motherboard power cable length: 610mm
• CPU power cable length: 700mm
• Peripheral (Molex) power cable length: 690mm
• Motherboard power connector: 20 4 pin ATX
• Safety certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE

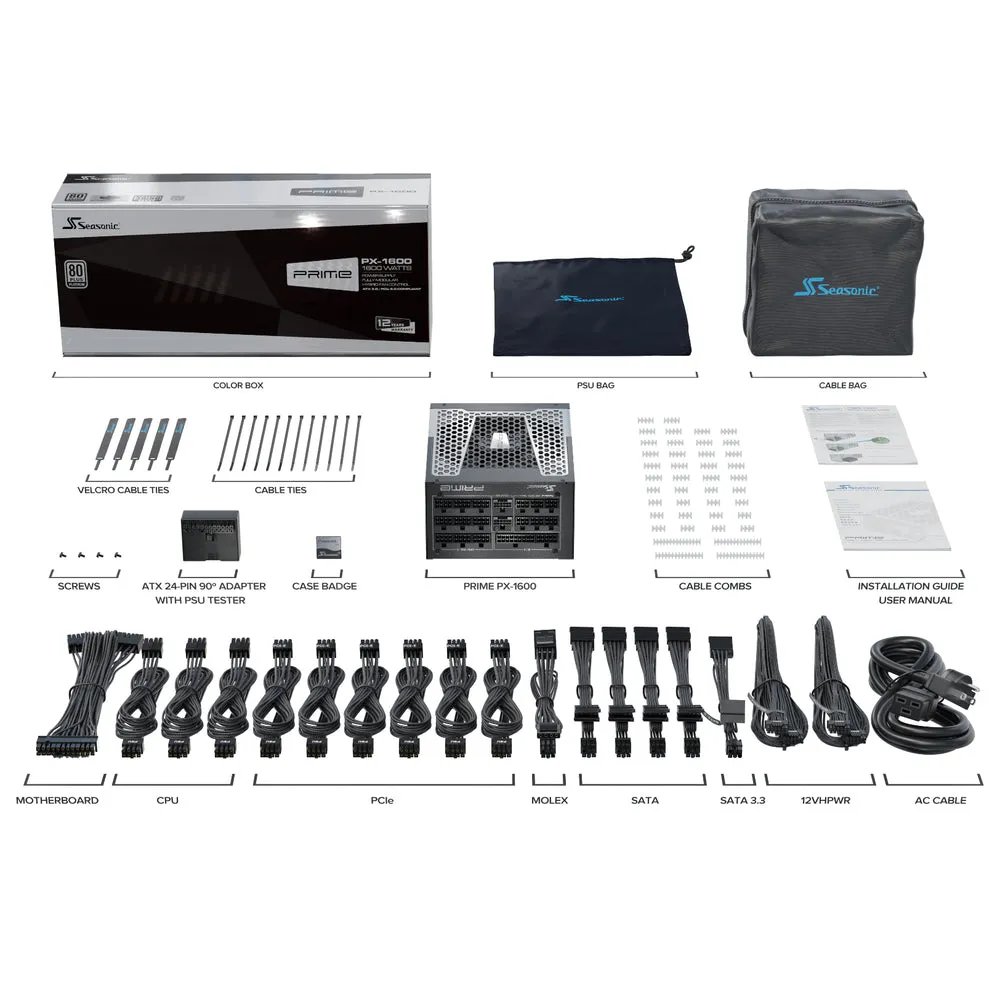

• Cables included: CPU, PCIe, Peripheral (Molex) to SATA 3.3, SATA
• Mean time between failures (MTBF): 100,000 hours
• Number of fans: 1
• Peripheral (Molex) power connectors (4-pin): 3
• Height: 86mm
• Width: 150mm
• Depth: 210mm
• Product color: Black
• CPU power connector (4 4 pin): Yes
• Input current: 15 - 10A
• Purpose: PC
• Cooling type: Active
• Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
• Fan diameter: 135mm
• CPU P4 connector (4-pin): 1
• ATX version: 3.0
• 80 PLUS certification: 80 PLUS Platinum
• Combined power ( 3.3V): 125W
• Combined power ( 12V): 1600W
• Combined power ( 5V): 125W
• Combined power (-12V): 6W
• Combined power ( 5Vsb): 15W
• Max output current ( 3.3V): 25A
• Max output current ( 12V): 133.3A
• Max output current ( 5V): 25A
• Power supply unit (PSU) form factor: ATX
• AC input frequency: 50/60Hz
• AC input voltage: 100 - 240V

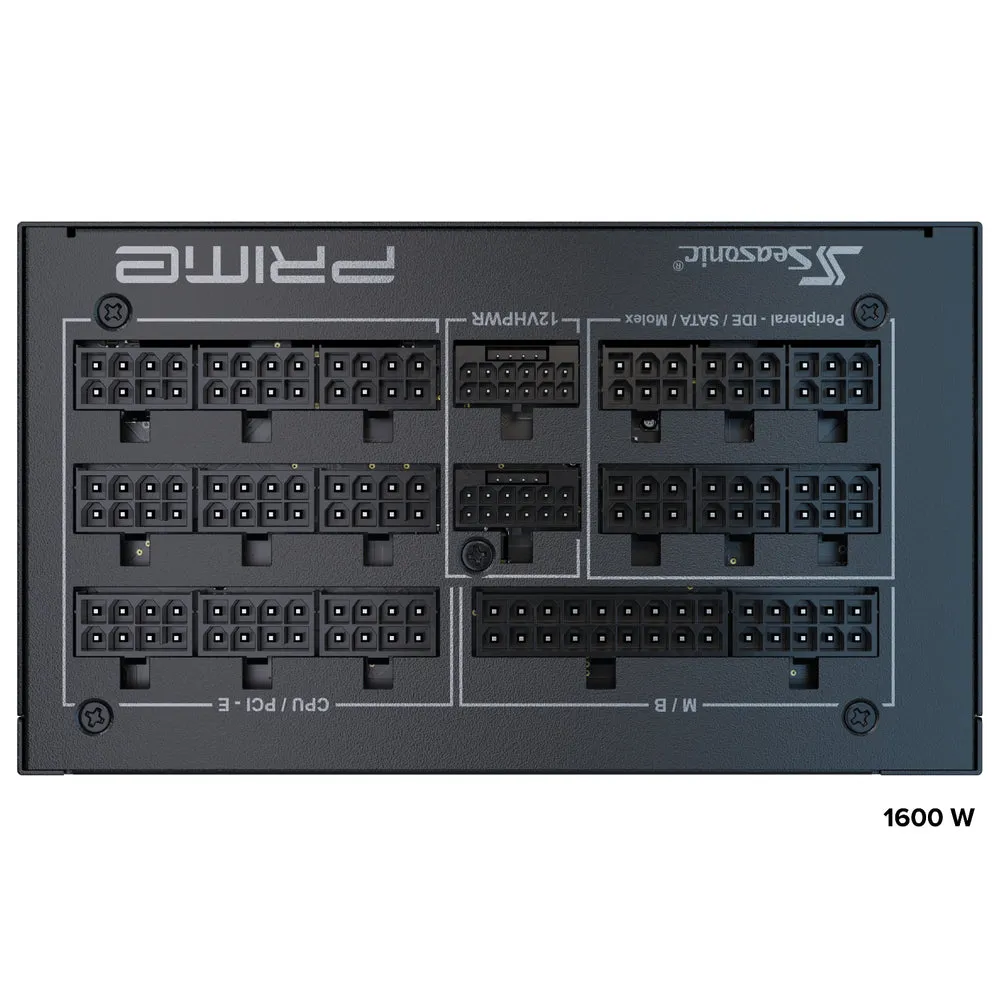

• Cabling type: Modular
