Product Details
＋

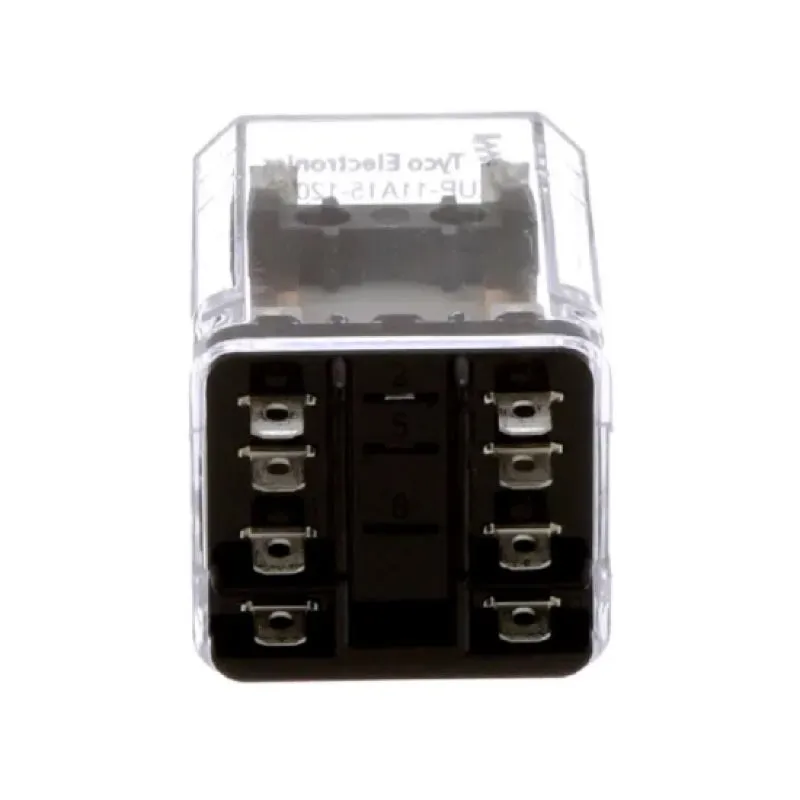

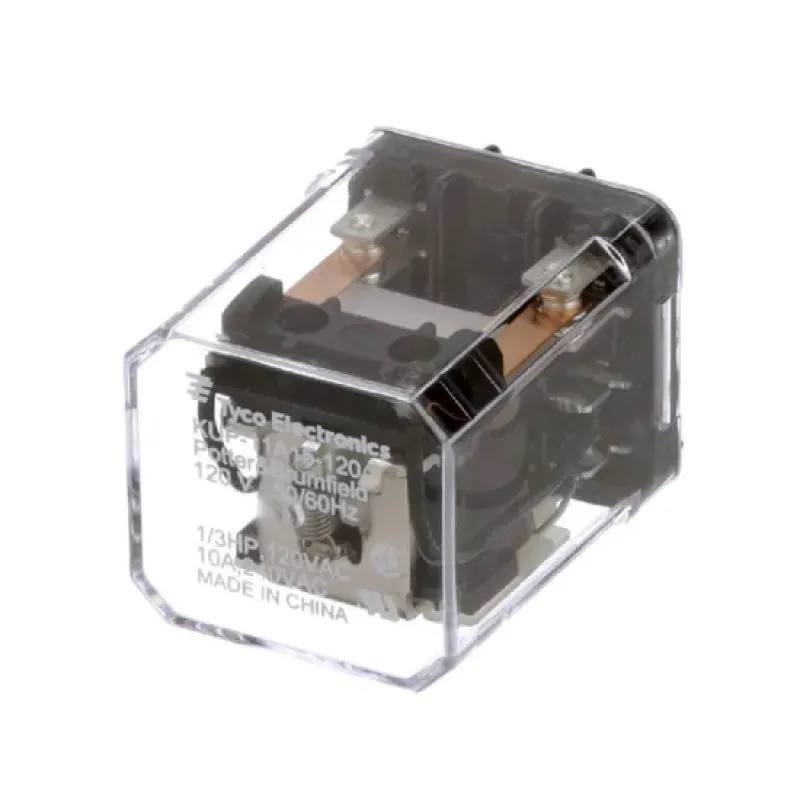

This is a Tyco 10A 120V General Purpose Power Relay. Its part number is KUP-11A15-120.
It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Coil Resistance: 2250 Ohms
- Contact Current Rating: 10 A
- Contact Form: DPDT
- Contact Material: Silver Cadmium Oxide
- Contact Voltage Rating: 300 VAC
- Control Voltage: 120 V
- Current Rating: 10 A
- Function: Monostable
- Mounting Type: Socket Mount
- Number of Pins: 9
- Primary Type: Power Relays
- Series: KUP Series
- Standards: UL ; CSA
- Termination: QC Tabs
- Voltage Rating: 300 V
