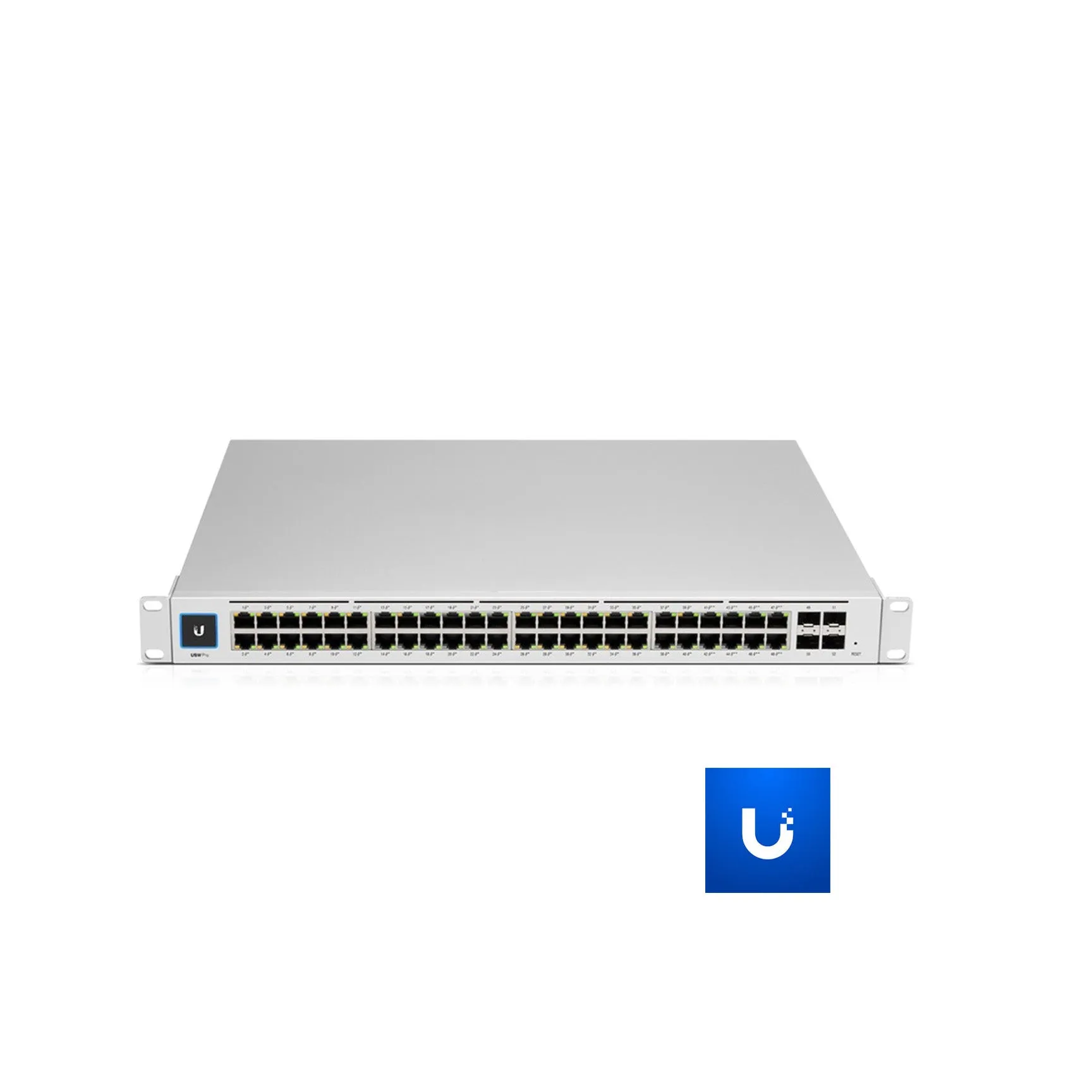

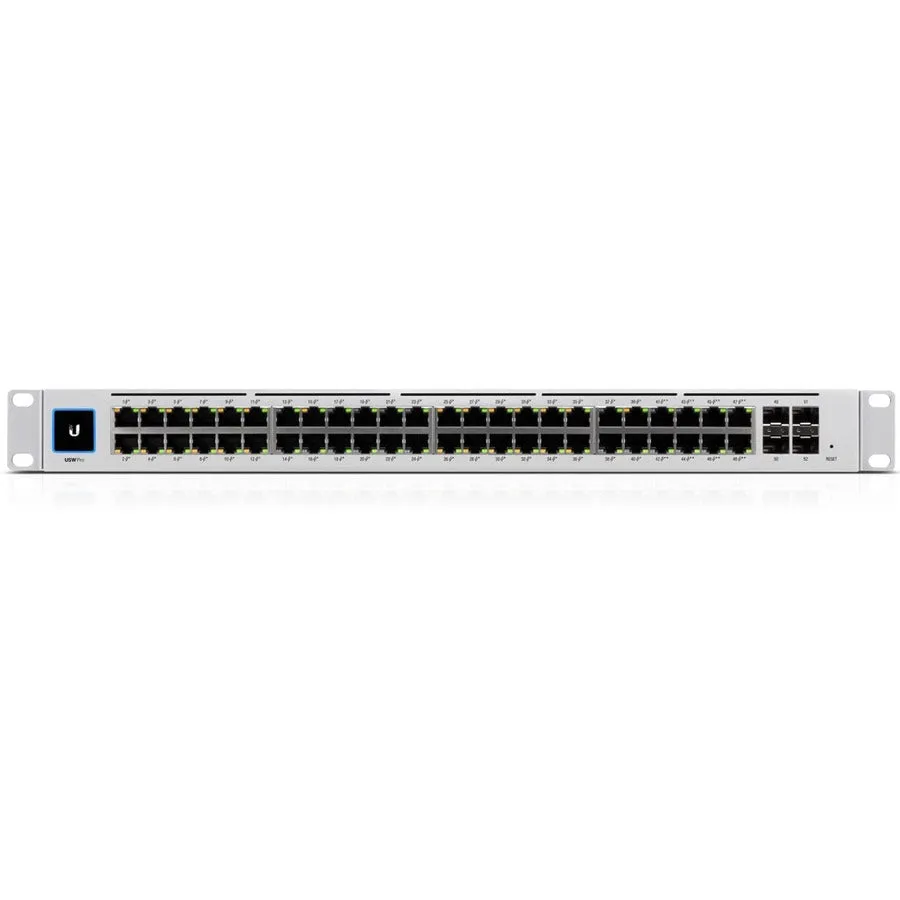

Ubiquiti USW-Pro-48-PoE Layer 3 Switch
Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
- USW-Pro-24-PoE 24 RJ45 ports with 2 SFP ports
- USW-Pro-48-PoE 48 RJ45 ports with 4 SFP ports
Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
- USW-Pro-48-PoE Layer 3 Switch
- Rack Mount Hardware
48
Yes
Yes
Yes
- 40 x Gigabit Ethernet PoE
- 8 x Gigabit Ethernet PoE
- 4 x 10 Gigabit Ethernet Expansion Slot
- Optical Fiber
- Twisted Pair
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 10/100/1000Base-T
- 10GBase-X
4
SFP
4
3
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Yes
Yes
600 W
- 120 V AC
- 230 V AC
- 50 Hz
- 60 Hz
Power Supply
Yes
60 W
Galvanized Cold Rolled Steel (SGCC)
1U
Rack-mountable
1.7"
17.4"
15.7"
13.78 lb
- USW-Pro-48-PoE Layer 3 Switch
- Rack Mount Hardware
Network
Yes
1 Year
