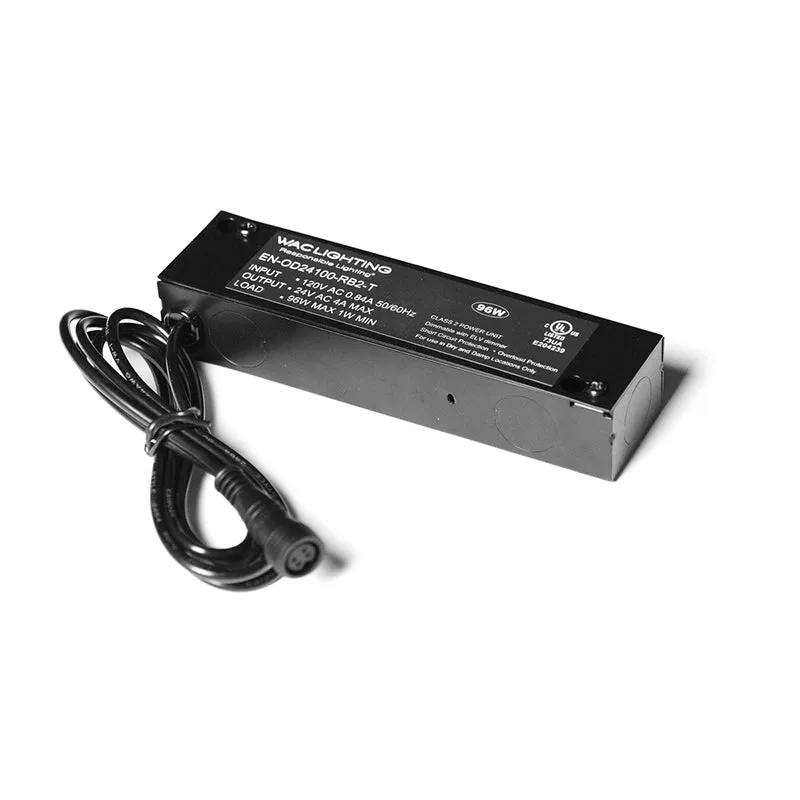

Low Voltage electronic transformer designed to be used as an enclosed remote transformer. Enclosure has separate compartments for transformer, line and low voltage wiring. Transformer may be safely loaded to 100% of stated capacity.

Features

• Finish: Black
• Max Load: 96W
• Min Load: 1W
• Input Voltage: 120VAC
• Output Voltage: 24V AC
• Secondary wiring for Class 2 transformers does not require conduit sheathed cable or clamp wiring techniques
• Intrinsically safe, Class 2 transformers permit no greater than a 5 amp current be drawn
• The enclosure is damp location listed, the waterproof connector is wet location listed
• Compatible with InvisiLED Pro Outdoor LED-TO2435
• Built-in auto reset, soft start, short and overload circuit
• FCC Part 15 Class B Compliant

Dimensions

• Length: 6.5"
• Width: 1.63"
• Height: 1.13"
