Product Details
＋
The ECP130 series is designed to minimize the no load power consumption and maximize efficiency to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications, this range of single output AC-DC power supplies are packaged in a low profile 1.1" height with a foot print of just 2" by 3". The ECP130 provides up to 130 W force-cooled or 100 W convection-cooled leading to very high power densities of 19.7 W/in3 or 15.1 W/in3 respectively. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 80 °C ambient.

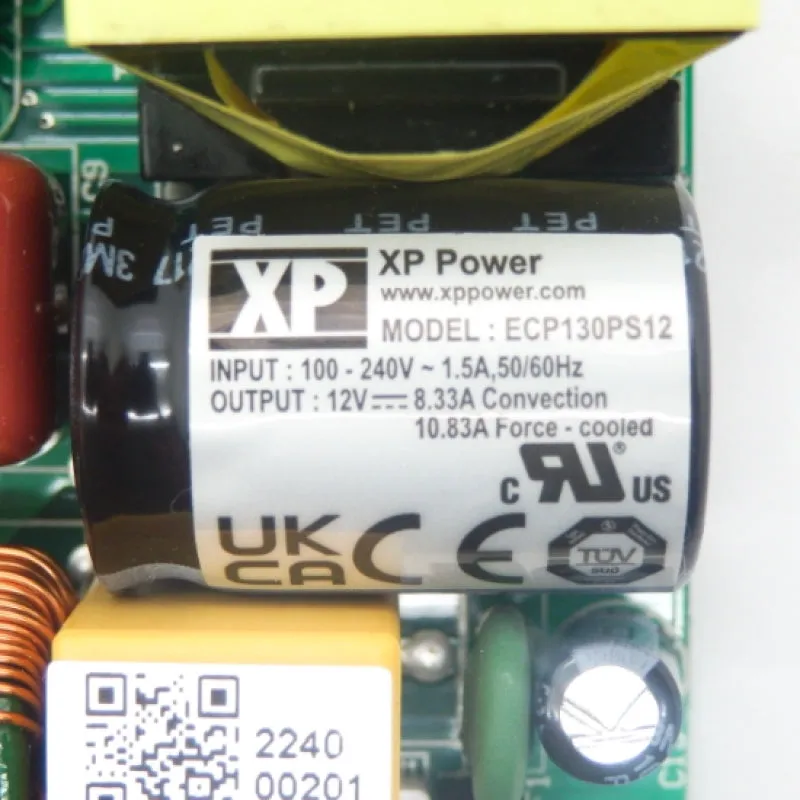

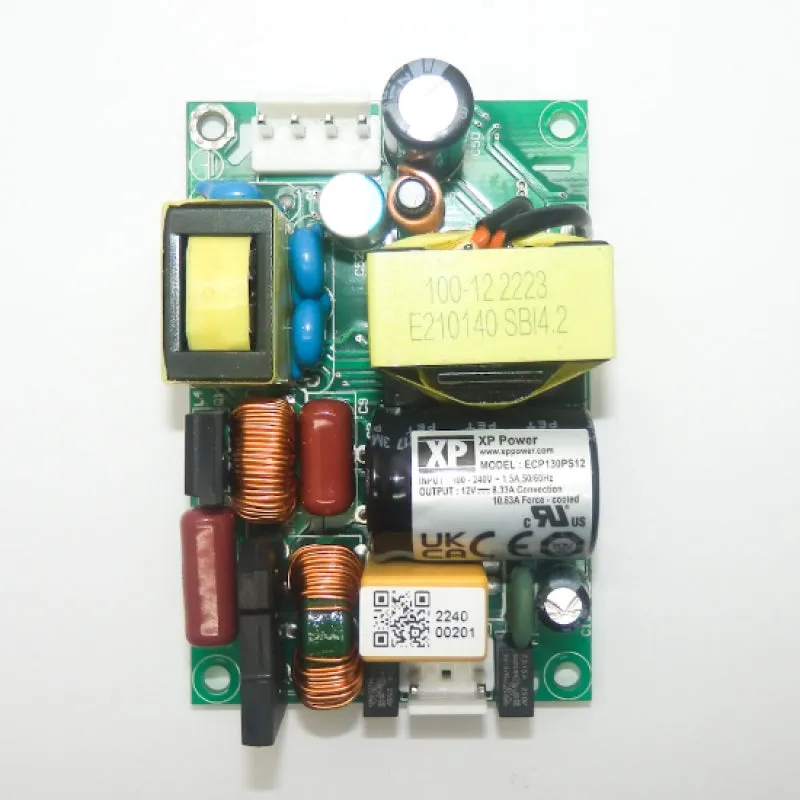

It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Configuration: Open-Frame
- Efficiency: 93%
- Input Voltage Range: 85-264 VAC
- Isolation Voltage: 4 kV ; 4000 V
- Mounting Type: Panel Mount
- Number of Outputs: 1
- Operation: PFC
- Output Current: 10.8 A
- Output Power: 130 W
- Output Voltage: 12 VDC
- Peak Current: 8.33A A
- Power: 100 W ; 130 W
- Primary Type: AC-DC
- Series: ECP130 Series
- Special Features: Standby Output
- Type: Embedded
