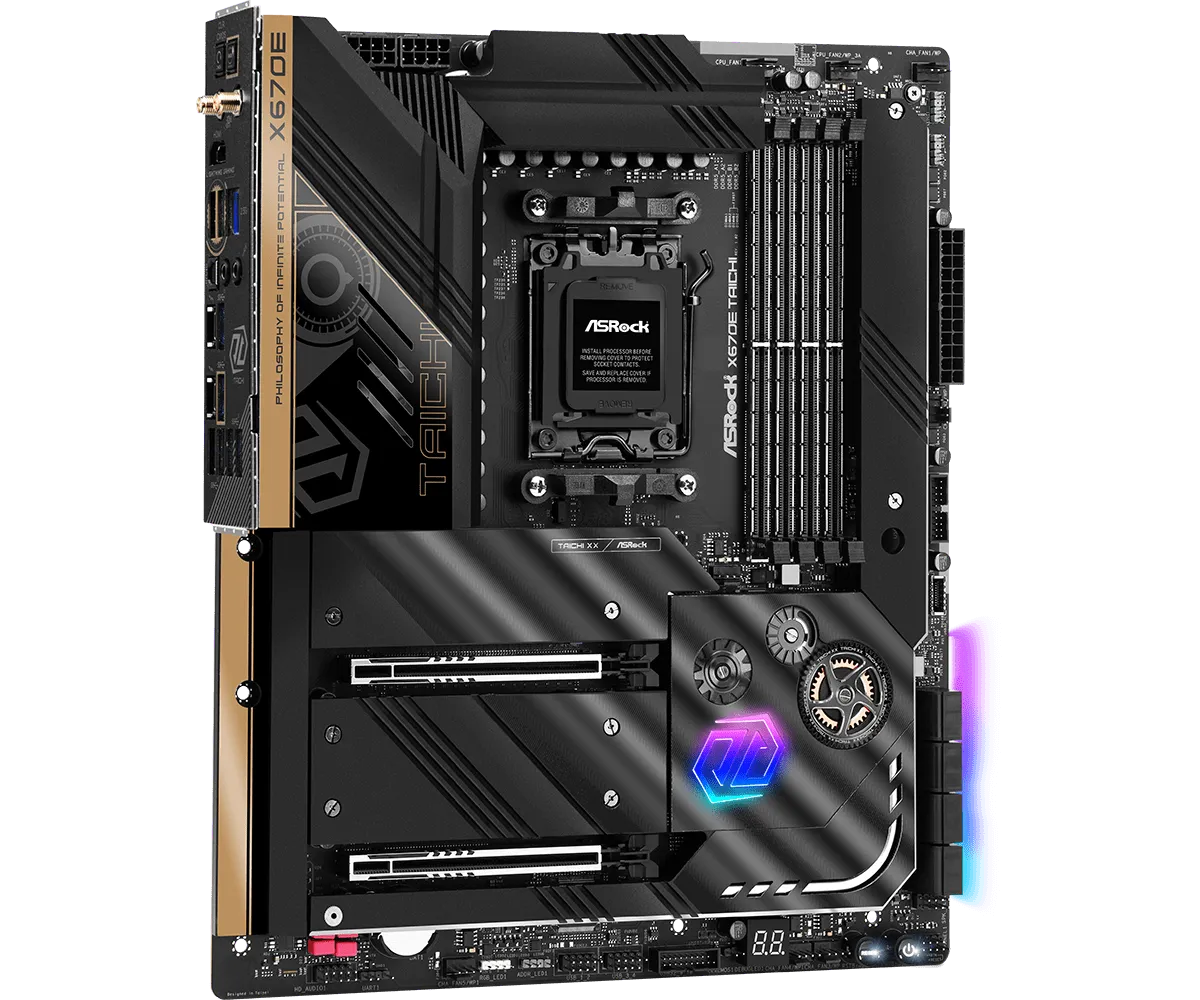

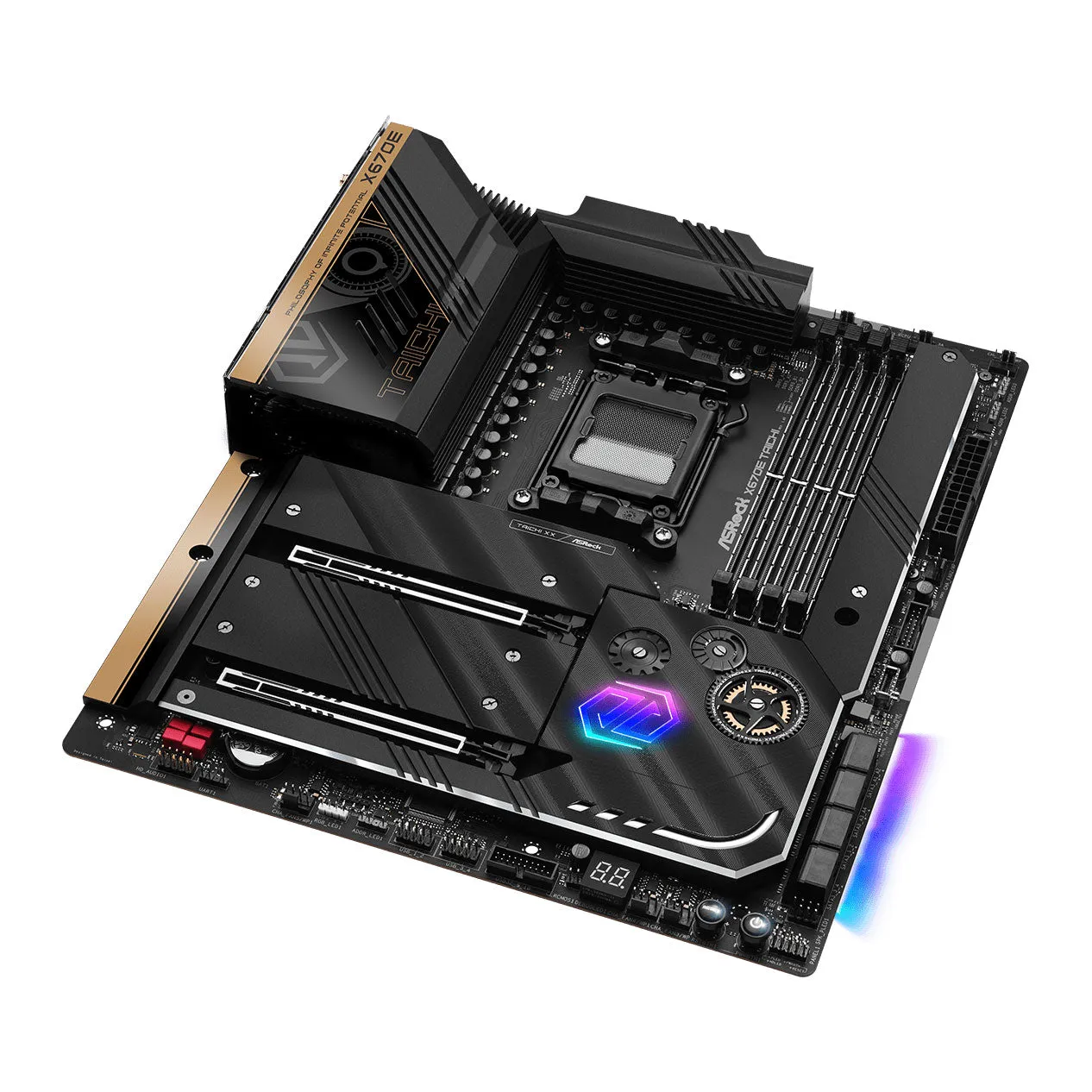

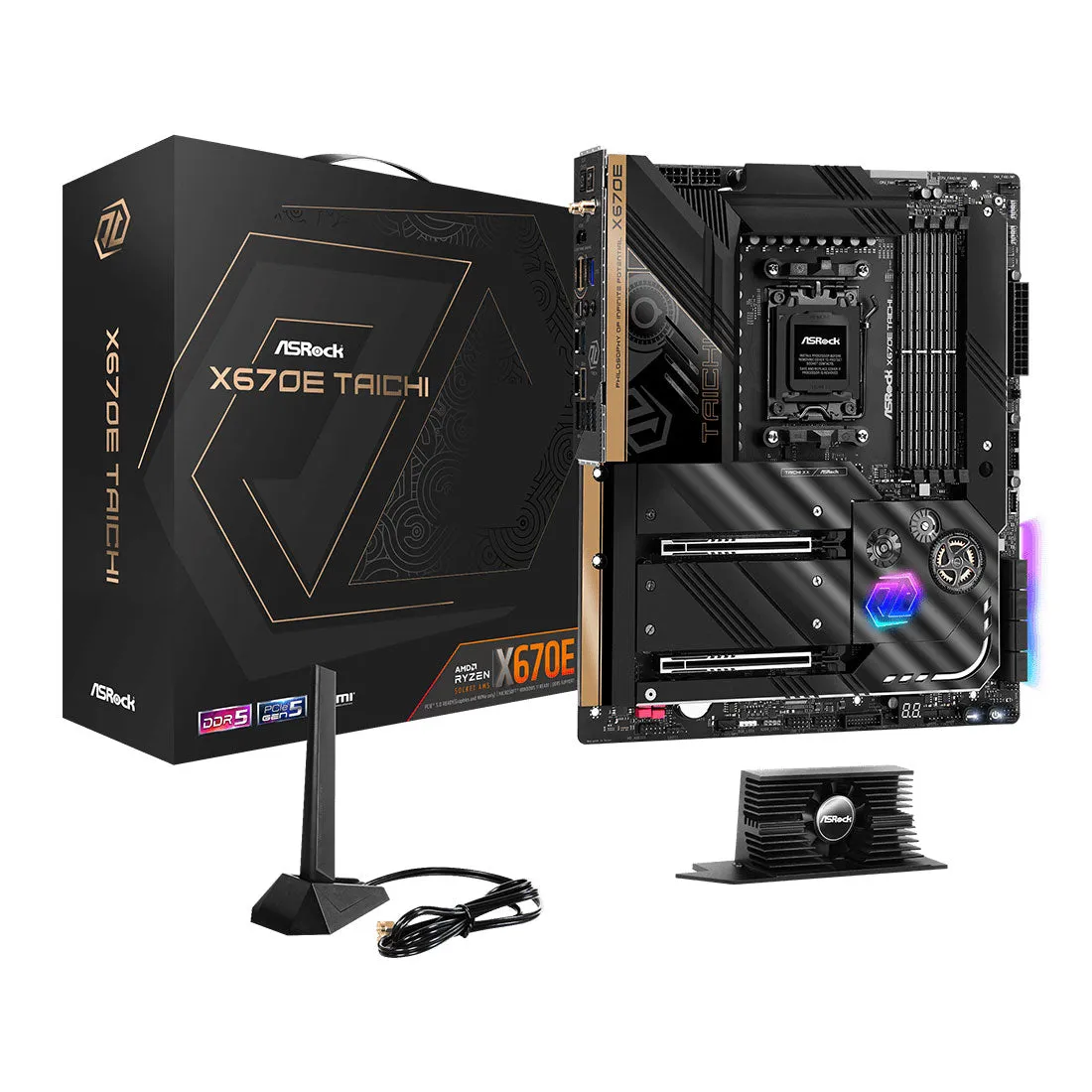

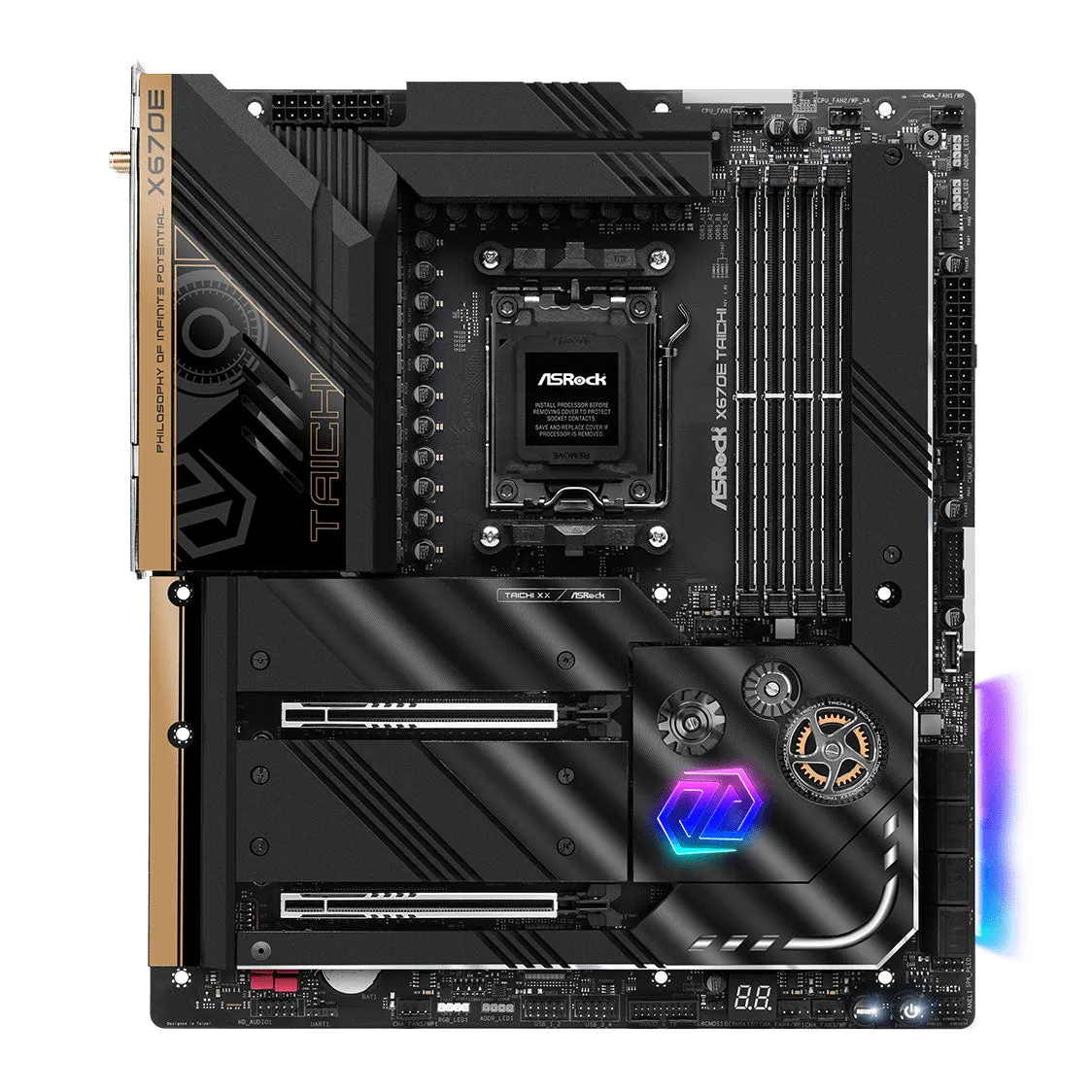

Product Details
＋
- Supports AMD Ryzen™ 8000 and 7000 Series Processors
- 24 2 1 Phase Power Design, SPS for VCore GT
- 4 x DDR5 DIMMs, supports up to 7800 (OC)
- 2 PCIe 5.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 5.1 CH HD Audio Codec,
ESS SABRE9218 DAC, WIMA Audio Caps - 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4 & SATA3),
2 Hyper M.2 (PCIe Gen4x4),
8 SATA3 - 2 USB4 Type-C (Rear),
1 USB 3.2 Gen2x2 Type-C (Front),
5 USB 3.2 Gen2 Type-A (Rear),
7 USB 3.2 Gen1 (3 Rear, 4 Front) - Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E Bluetooth 5.3
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 5600MHz up to 6600MHz(OC) Supports AMD EXTended Profiles for Overclocking (EXPO) |
| Onboard Graphics Outputs | 1 x HDMI® port 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz |
| PCI Slots | CPU:2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Networking | 1 x 2.5Gb Ethernet WIFI 6E Bluetooth |
| Audio | 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) |

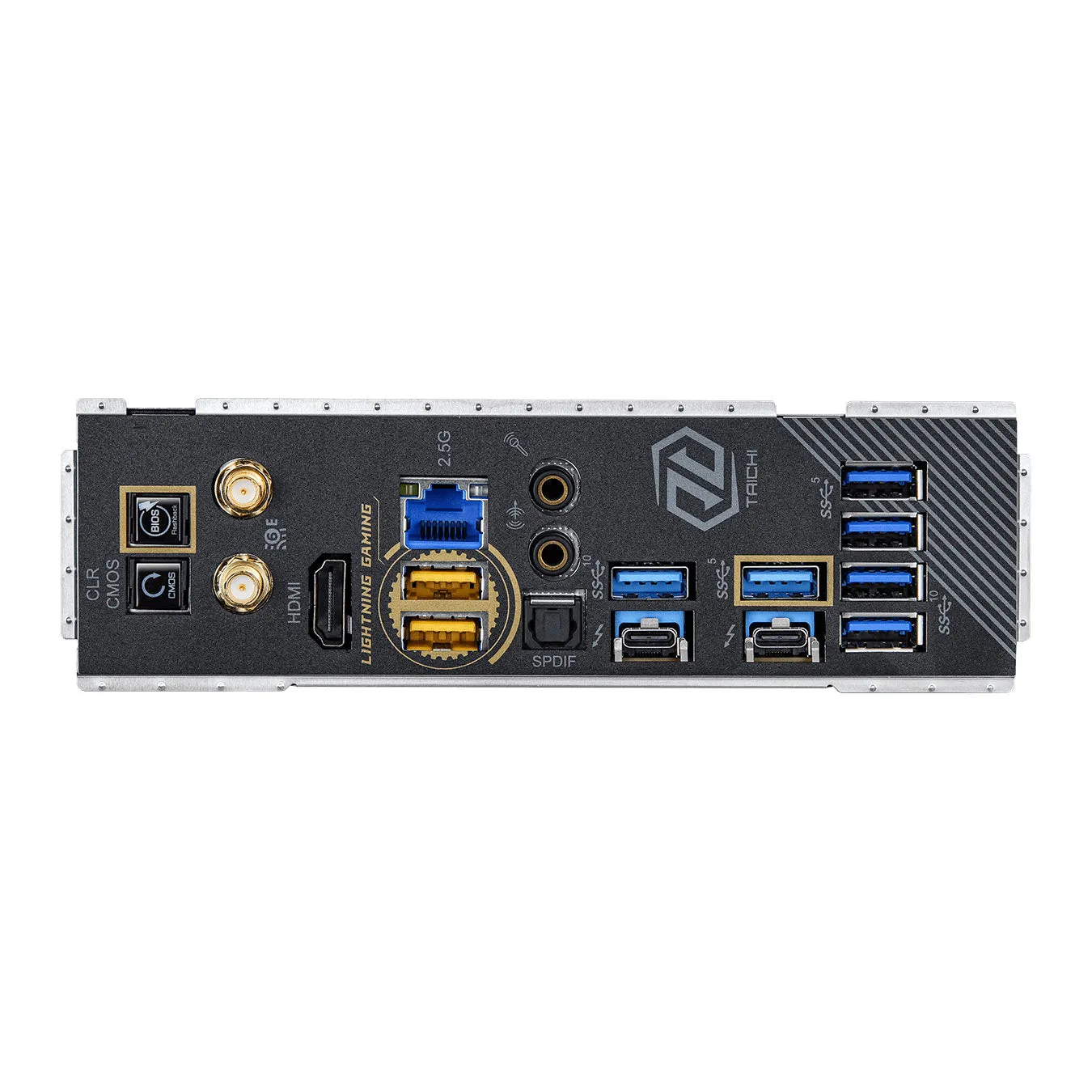

| Connectivity | - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.) - 3 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Internal Ports | - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15? Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |
| Form Factor | EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm |
| Warranty | Three Year Manufacturer Warranty |
