Product Details
＋

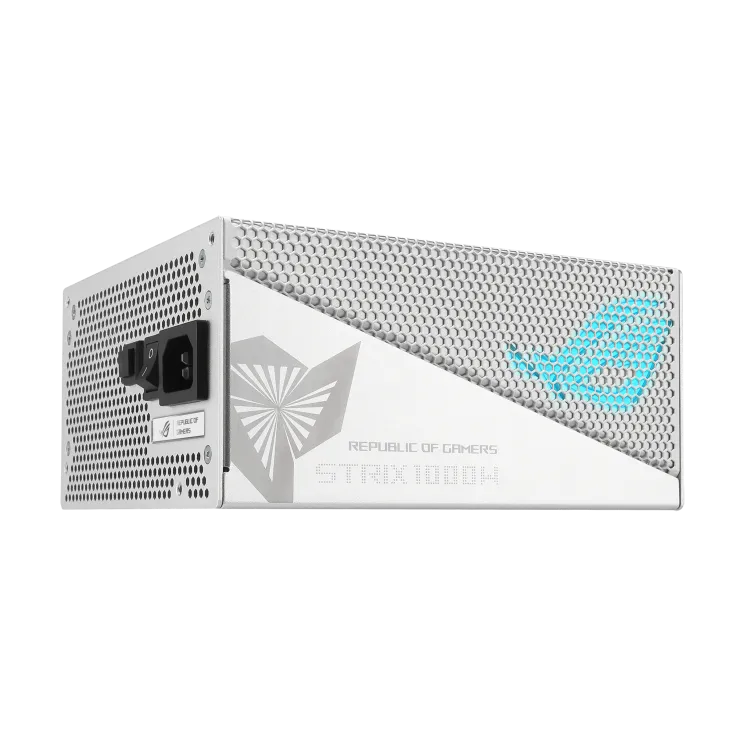

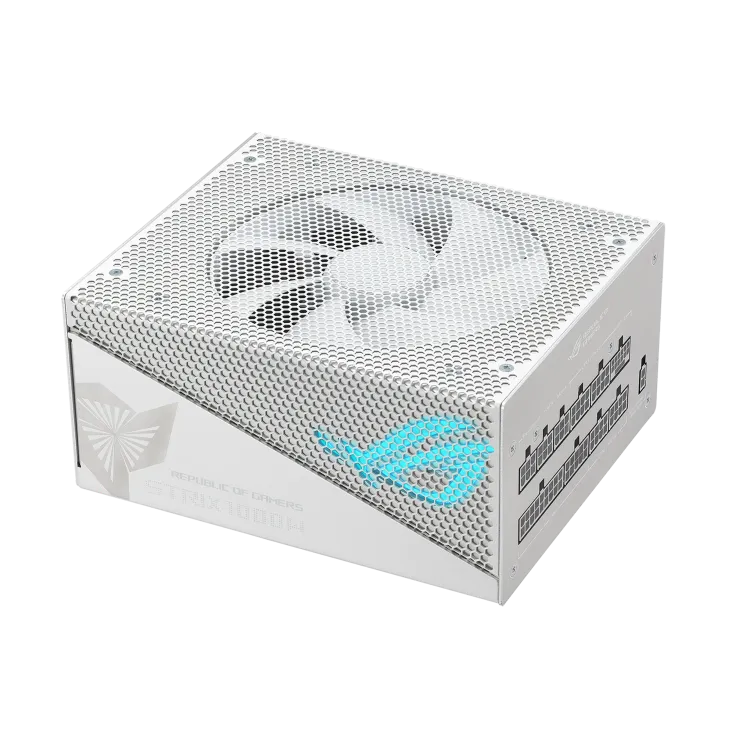

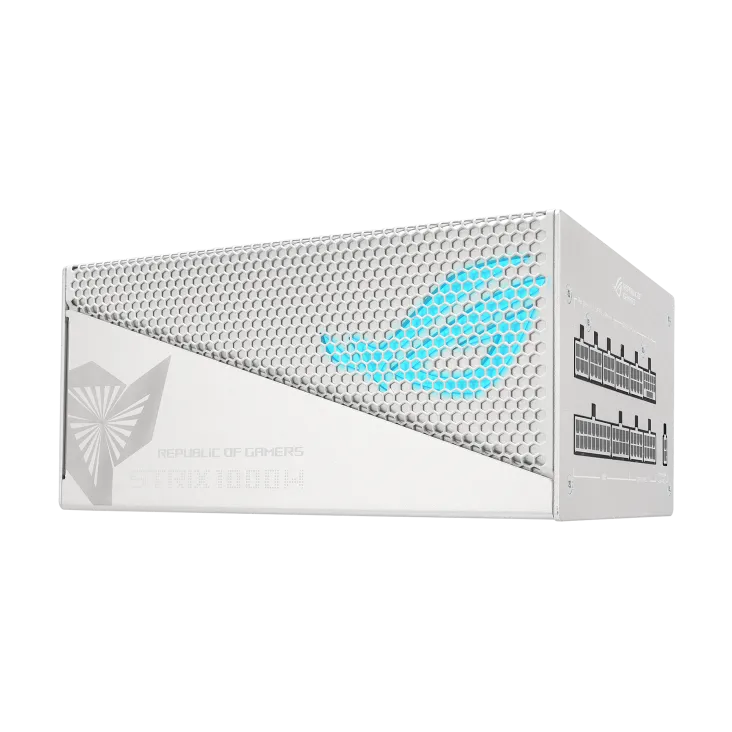

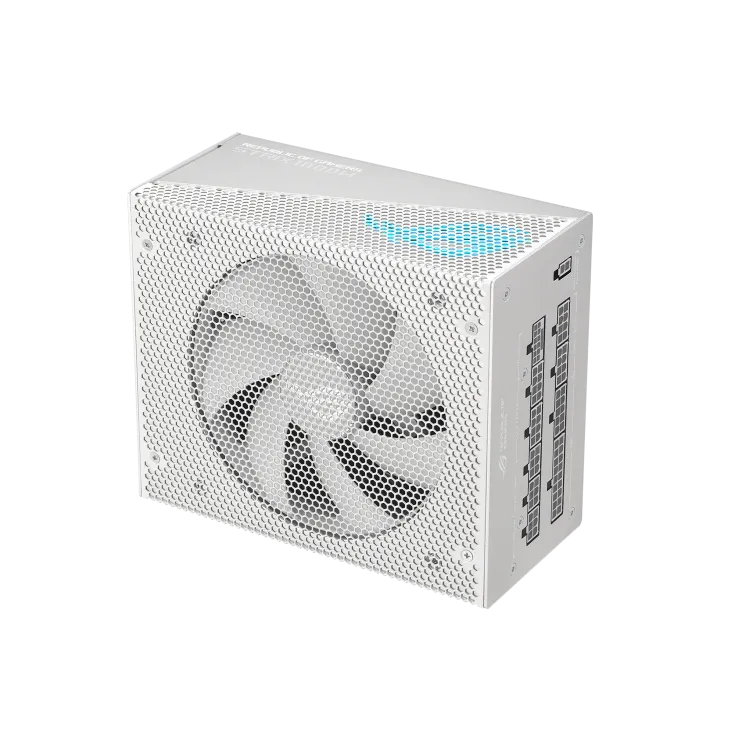

ROG STRIX 1000W Gold Aura White Edition
Intel Form Factor
ATX12V
ATX 3.0
Yes
Dimensions
180 x 150 x 86 mm
Efficiency
80Plus Gold
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
3.3V 5V 12V -12V 5Vsb
Maximum Load
22A 22A 83.3A 0.3A 3A
Combined Load
120W 120W 996.6W 3.6W 15W
Total Output
1000W
Cable Connectors
MB 24/20-pin x 1 CPU 4 4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4
Package Contents
Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675 mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675 mm) PCI-E 1-to-1 Cable x 2 (675mm) SATA 1-to-2 Cable x 1 (400 120mm) SATA 1-to-3 Cable x 1 (400 120 120mm) Peripheral 1-to-4 Cable x 1 (400 150 150 150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1
Weight
3.03 kg (single PSU)
AURA SYNC
ARGB
0dB Fan Button
Yes
Cybenetics Noise Level Certification
A
