Product Details
＋

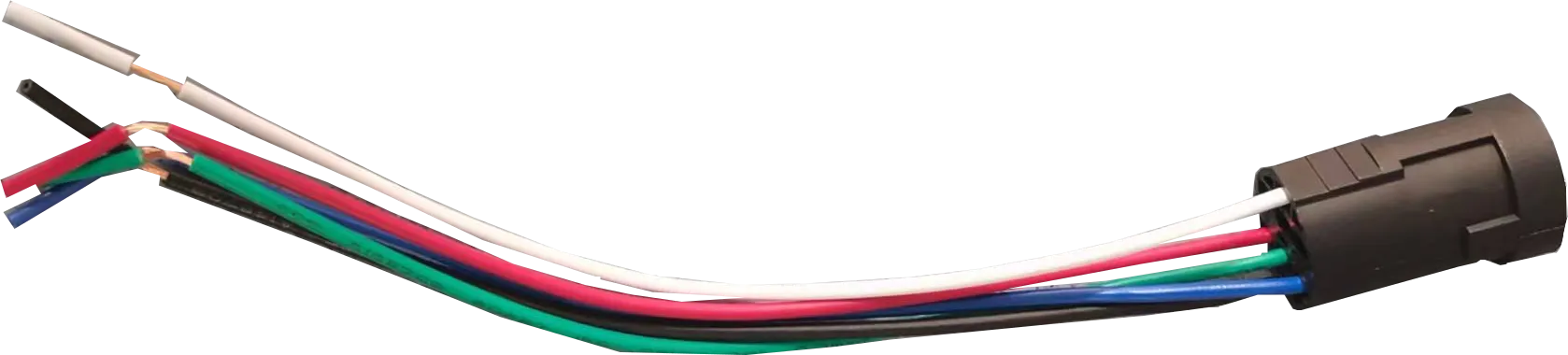

F19-5P-CON-800mm, Connector for F19 Series (19mm) Metal Pushbutton Switches, 3Amp @ 250VAC or 24VDC, 24VDC Illumination Supply, 800mm Flying Leads
Description
- Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 2xNO 2xNC, Lettering, varnished in different colours
- Assembly by mounting with nut
- Pin connections, Pins with Soldering Aid or Clip for Pins
Characteristics
- Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
- Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp
- 24VDC Illumination Supply Voltage
- Zinc die-cast for housing and actuator For indoor use, no Illumination, 2xNO 2xNC, no lettering
- Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols
- Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data)
- Tamper Proof suitable for public spaces
Specification
| Fastron Electronics Part Number | F19-5P-CON-800mm |
| Switch Size | For F19 Series (19mm) Metal Line Switches Non RGB Types Only) |
| Nominal Voltage | 250VAC/DC |
| Lead Length | 800mm |
| Rated Power | 750W |
| Switch Type | Momentary 1NO and 1NC / Latching C/O |
| Illumination voltage | 24VDC @ 10mA |
| Nominal Current (AC/DC) |
3 Amp @240VAC/DC |
| Operating Temperature Range | -20°C / 85°C |
| Termination | 10mm AWG22 Flying Leads |
| Unit Weight | 65g |
| Factory Pack Qty | 10 |
