Fluke 26500610 Ts100 Metric Cable Fault Findr (Item no. 2327959)

NOTE: Fluke Network lead times can vary due to component and supply issues.

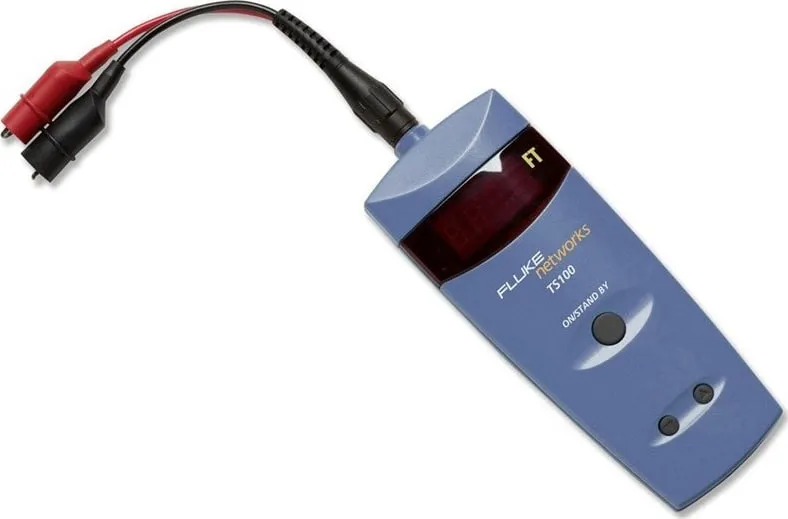

26500610 TS100 Metric Cable Fault Finder
Works on any two or more conductor cable up to 3,000 feet (915 meters)
Instantly measures distance to open or any fault from one end of any cable pair
Patented SmartTone tone generator positively identifies pair
Measures cable distance on spool
Measures constantly while "On"
Displays distance reading rather than waveform
Large bright LED screen
One button operation
High voltage detection
Moisture proof
Additional line cord options available for coaxial cable (F-connectors) and other applications

From just ONE END of any two or more conductor cable you can measure up to 3,000 feet (915 meters). The TS 100 cable fault locator lets you easily find the distance to opens or shorts on electrical wire, telephone wire, security wire and coax. Results appear as a distance reading rather than a waveform, so it's perfect for technicians unfamiliar with Time Domain Reflectometery (TDR).

Locate and fix cable problems without pulling new wire or blindly cutting into walls. Intermittent faults are easier to find because the unit constantly measures while "On".

The TS 100 cable fault locator is perfect for inventory management of cable stock in trucks and warehouses and it can help you generate more accurate bids for jobs by quickly assessing needs and managing the cable stock with greater accuracy.

Patented SmartTone technology gives you 5 distinct tones to use for exact wire and pair identification, even in proximity to current-bearing cable.

When touching the wires together and momentarily shorting the far end of a cable pair, the SmartTone technology will change the cadence of the tone generated. This tone change you hear through the probe positively verifies the correct wire pair.

Voltage detection in the unit will immediately sound an alarm if you accidentally clip onto an energized pair, up to 250VAC.

	Pro 3000f	Intellitone Pro	MicroMapper	TS100	MicroSanner PoE	CIQ-100	DSX-8000
Port Information and Cable ID
PoE Identification					✔	✔
PoE Power Class (0-8)					✔
Switch Speed					✔	✔
Digital Toning		✔			✔	✔
Analog Toning	Noise Filtering	✔	✔	✔	✔	✔	✔
Switch Presence		✔			✔	✔
VDV Service Detection					✔	✔
Cable Verification
Cable Wiremap		✔	✔		Graphical	Graphical	Graphical
Cable Length				✔	✔	✔	✔
Qualified Cabling Speed (10/100/1000/VoIP)						✔	✔
Cable Certification (Cat 6, 6A, 8, Fiber)							✔
Cable Troubleshooting
Indentify open/short		✔	✔	✔	✔	✔	✔
Distance to open/short				✔	✔	✔	✔
Locate crosstalk fault							✔
Identify and locate impedance fault							✔

In The Box

Manuals/Guides

Manufacturer Specs

TS® 100 Cable Fault Finder Specification
Power	4 AA alkaline batteries, provide 50 hours of operation.
Reverse Battery Protection	No damage to the tester will occur if the batteries are installed backwards.
Input Protection	250 V rms ac, continuous or intermittent
Moisture	If the tester is exposed to water, some may get inside, but it will suffer NO DAMAGE. See the information on moisture under "Maintenance".
Impedance Range	35 Ω to 330 Ω with auto-compensation within this range. Cables with an impedance outside this range will not be properly tested and may produce erratic or incorrect readings.
Maximum Length	2500 feet on certain cable types, 2000 feet on most cable types, and 500 feet on very lossy cables. The tester will display "Err" if the cable is too long to be correctly measured.
Representative Maximum Cable Length
2500 feet	CAT-5 Twisted Pair 2000 feet: 12/2 ac Wire 1000 feet: RG-6/U TV Coax 500 feet: RG-174/U Coax
Minimum Length	No minimum length Minimum non-zero reading is 2 feet
Length Accuracy	±2 feet for cables less than 10 feet ±5 feet for cables longer than 10 feet and shorter than 200 feet ±3 % and ?5 feet for cables longer than 200 feet
High Voltage Detection	An ac voltage of more than 5 V rms will trigger the High Voltage Warning.
Measurement Rate	Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity.
VOP	Adjustable from -20- to -99-, retained during power off. Default to -66- when batteries are changed
Measurement Technology	Time Domain Reflectometry (TDR) with 50 O drive impedance, 6 V maximum pulse height
Low Battery	Indicator flashes when battery voltage falls below 4.1 V
Tone Injection	Approximately 1 kHz at an amplitude of 80 % of battery voltage. Variable frequency and cadence. Tone characteristic is changed as cable condition changes to "normal-open" from any other condition.
Cable Type	Virtually all two or more conductor cables
Temperature Range
Operating Storage	32 °F to 131 °F (0 °C to 55 °C) -40 °F to 158 °F (-40 °C to 70°C)
Humidity
Operating	0 % to 80 %
Storage	0 % to 100 %
Weight	1 lb
Certifications and Compliance	Conformit? Europ?enne. Conforms to relevant European Union directives. CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
